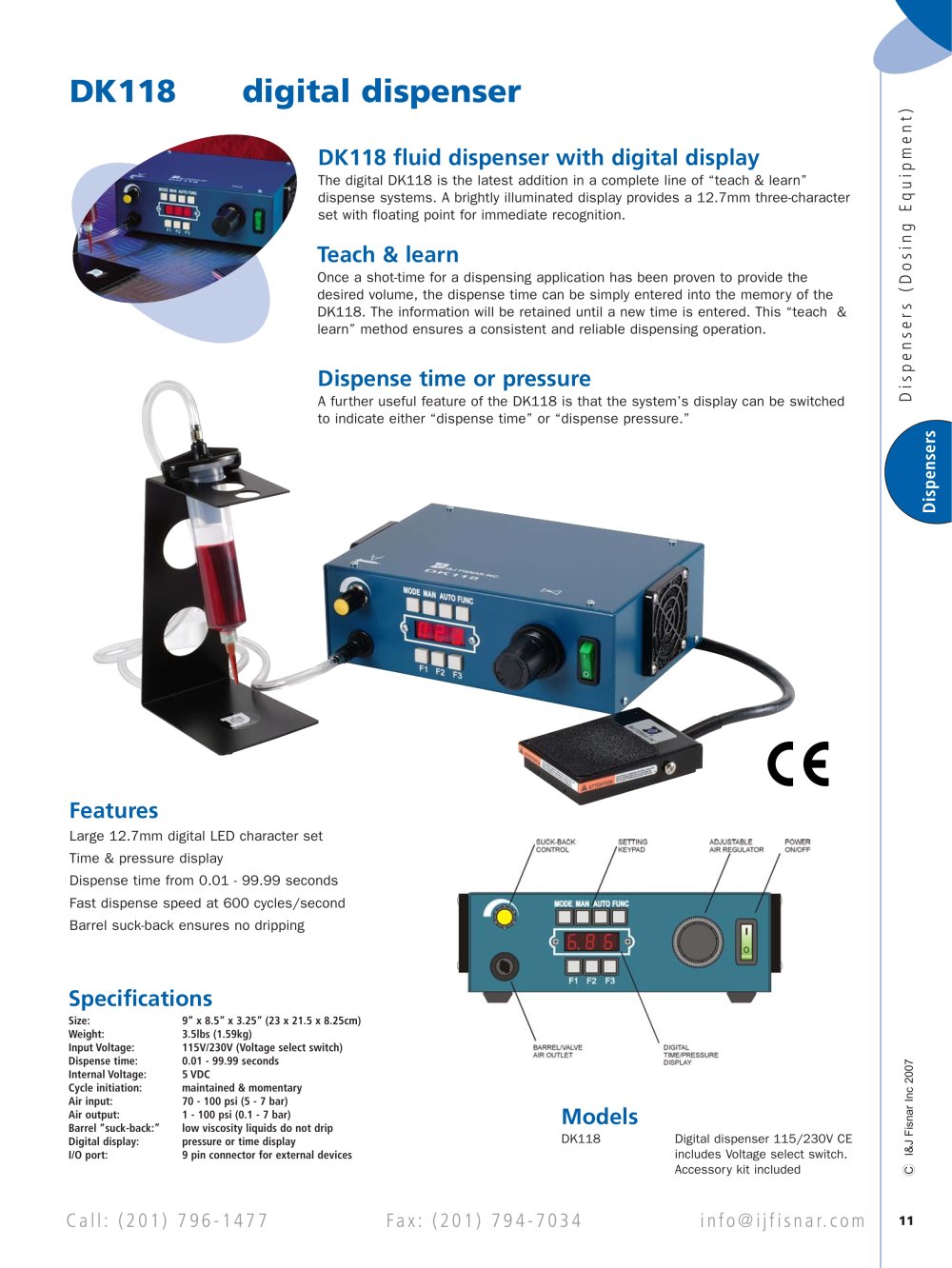

| DK118 digital dispenser | |||||||||||||||||||||||||||||||
| DK118 fluid dispenser with digital display The digital DK118 is the latest addition in a complete line of "teach & learn" dispense systems. A brightly illuminated display provides a 12.7mm three-character set with floating point for immediate recognition. Teach & learn Once a shot-time for a dispensing application has been proven to provide the desired volume, the dispense time can be simply entered into the memory of the DK118. The information will be retained until a new time is entered. This "teach & learn" method ensures a consistent and reliable dispensing operation. | |||||||||||||||||||||||||||||||
| Ol o | |||||||||||||||||||||||||||||||
| Dispense time or pressure A further useful feature of the DK118 is that the system's display can be switched to indicate either "dispense time" or "dispense pressure." | |||||||||||||||||||||||||||||||
| Features Large 12.7mm digital LED character set Time & pressure display Dispense time from 0.01 - 99.99 seconds Fast dispense speed at 600 cycles/second Barrel suck-back ensures no dripping | |||||||||||||||||||||||||||||||
| Specifications | |||||||||||||||||||||||||||||||
| Size: Weight: Input Voltage: Dispense time: Internal Voltage: Cycle initiation: Air input: Air output: Barrel "suck-back:" Digital display: I/O port: | 9" x 8.5" x 3.25" (23 x 21.5 x 8.25cm) 3.5lbs (1.59kg) 115V/230V (Voltage select switch) 0.01 - 99.99 seconds 5 VDC maintained & momentary 70 - 100 psi (5 - 7 bar) 1 - 100 psi (0.1 - 7 bar) low viscosity liquids do not drip pressure or time display 9 pin connector for external devices | ||||||||||||||||||||||||||||||
| o o CN to u_ | |||||||||||||||||||||||||||||||
| Models | |||||||||||||||||||||||||||||||
| DK118 | Digital dispenser 115/230V CE includes Voltage select switch. Accessory kit included | ||||||||||||||||||||||||||||||
