| Single z-axis dispensing station The model RT-FLEXII-Z is an economical and convenient system for dispensing circular patterns of adhesives, silicones, grease and lubricants. The RT-FLEXII-Z has been designed for large circular objects, which can be mounted either on the left or right side of the rotary table. The pneumatic z-axis is adjustable in height and can be inclined at an angle for those applications requiring a side-wall dispense operation. The RT-FLEXII-Z is fully adjustable in rotation speed, circle diameter and dispensing time. Dispense from barrels, cartridges or valves mounted on the Z-axis gantry. | |||||||||||||||||||||||||||||||||||||||||||||
| cu _Q CO >•> -I—> o en | |||||||||||||||||||||||||||||||||||||||||||||
| Operation | |||||||||||||||||||||||||||||||||||||||||||||
| The following dispensing parameters can be programmed using the RT-FLEXII-Z: | |||||||||||||||||||||||||||||||||||||||||||||
| Operation Rotation delay setting Dispense delay setting Degrees of rotation Speed control Auto control | Description start dispensing before the table turns start rotation before dispensing 90 - 900 degrees of dispense rotation sets rotation speed of turntable sets automatic cycling 1 - 9 seconds | ||||||||||||||||||||||||||||||||||||||||||||
| Features Dispenses in circles from 0-900° Variable speed table Simple to set up and operate No computer skills required Fully adjustable for perfect dispensing Specifications | |||||||||||||||||||||||||||||||||||||||||||||

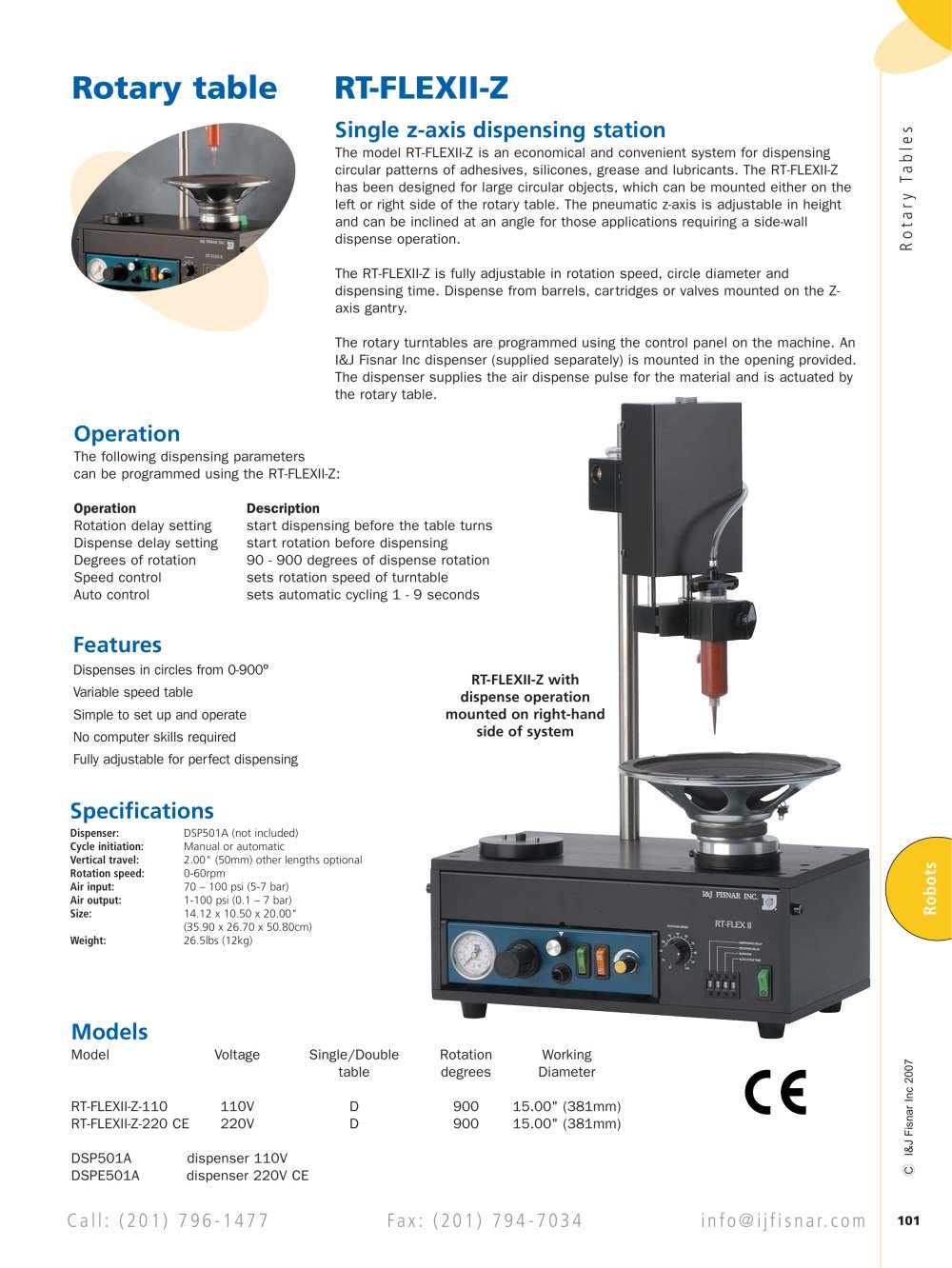

| RT-FLEXII-Z with dispense operation mounted on right-hand side of system | |||||||||||||||||||||||||||||||||||||||||||||
| Dispenser: Cycle initiation: Vertical travel: Rotation speed: Air input: Air output: Size: Weight: | DSP501A (not included) Manual or automatic 2.00" (50mm) other lengths optional 0-60rpm 70 - 100 psi (5-7 bar) 1-100 psi (0.1 - 7 bar) 14.12 x 10.50 x 20.00" (35.90 x 26.70 x 50.80cm) 26.5lbs (12kg) | ||||||||||||||||||||||||||||||||||||||||||||
| Models Model | |||||||||||||||||||||||||||||||||||||||||||||
| Voltage | Single/Double table D D | Rotation degrees 900 900 | Working Diameter 15.00" (381mm) 15.00" (381mm) | ||||||||||||||||||||||||||||||||||||||||||
| r-- o o CM o _c TO Ll © | |||||||||||||||||||||||||||||||||||||||||||||
| RT-FLEXII-Z-110 RT-FLEXII-Z-220 CE | 110V 220V | ||||||||||||||||||||||||||||||||||||||||||||
| DSP501A DSPE501A | |||||||||||||||||||||||||||||||||||||||||||||
