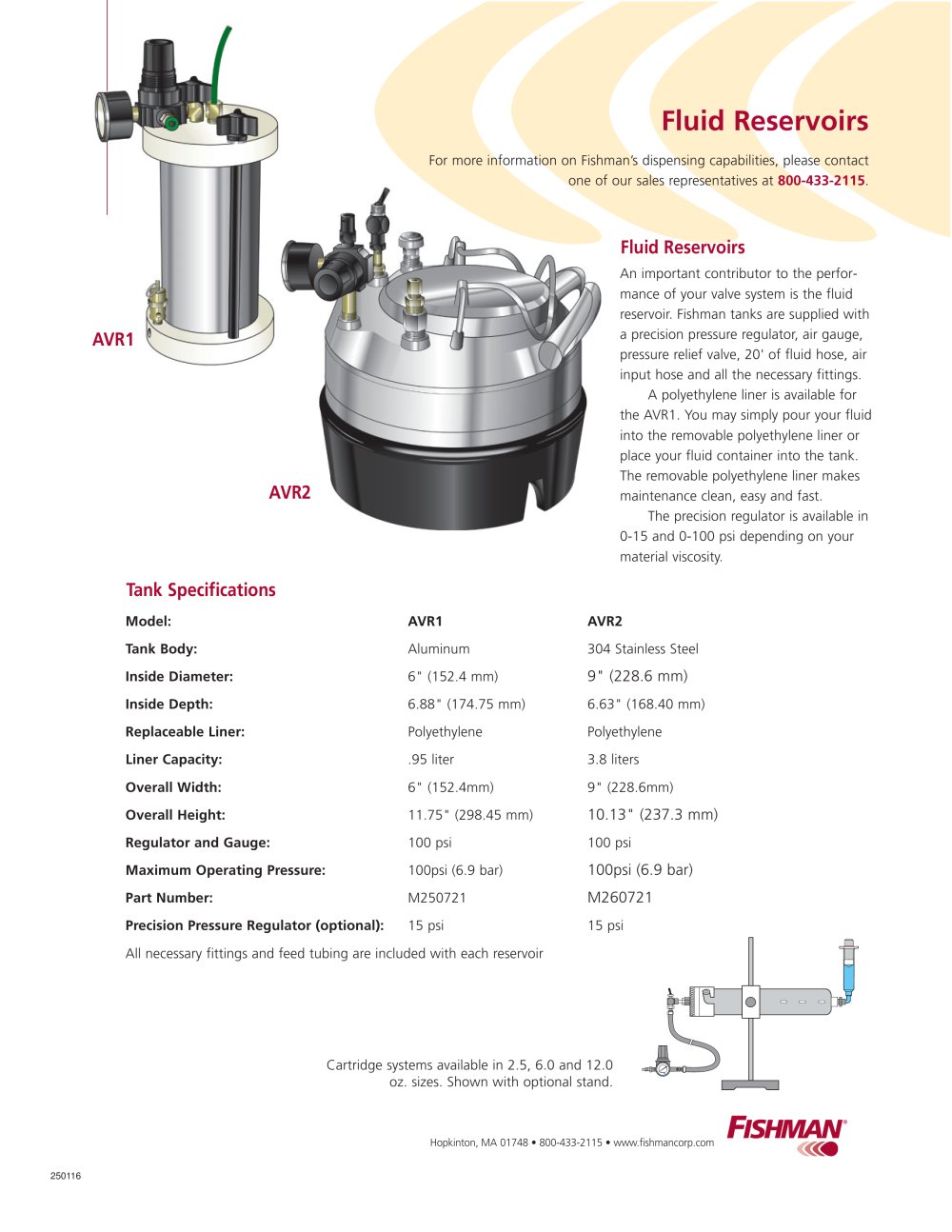

Fluid Reservoirs

For more information on Fishman’s dispensing capabilities, please contactone of our sales representatives at 800-433-2115 .

Fluid Reservoirs

An important contributor to the perfor-mance of your valve system is the fluid reservoir. Fishman tanks are supplied with a precision pressure regulator, air gauge,pressure relief valve, 20' of fluid hose, airinput hose and all the necessary fittings. A polyethylene liner is available forthe AVR1. You may simply pour your fluidinto the removable polyethylene liner orplace your fluid container into the tank. The removable polyethylene liner makesmaintenance clean, easy and fast.The precision regulator is available in0-15 and 0-100 psi depending on yourmaterial viscosity.

AVR2AVR1 Tank Specifications

Model:AVR1AVR2Tank Body: Aluminum 304 Stainless Steel Inside Diameter: 6" (152.4 mm)

9" (228.6 mm)

Inside Depth: 6.88" (174.75 mm)6.63" (168.40 mm) Replaceable Liner: PolyethylenePolyethylene Liner Capacity: .95 liter3.8 liters Overall Width: 6" (152.4mm)9" (228.6mm) Overall Height: 11.75" (298.45 mm)

10.13" (237.3 mm)

Regulator and Gauge: 100 psi100 psi Maximum Operating Pressure: 100psi (6.9 bar)

100psi (6.9 bar)

Part Number: M250721

M260721

Precision Pressure Regulator (optional): 15 psi15 psiAll necessary fittings and feed tubing are included with each reservoir Cartridge systems available in 2.5, 6.0 and 12.0oz. sizes. Shown with optional stand.
Hopkinton,MA 01748 • 800-433-2115 • www.fishmancorp.com 250116
