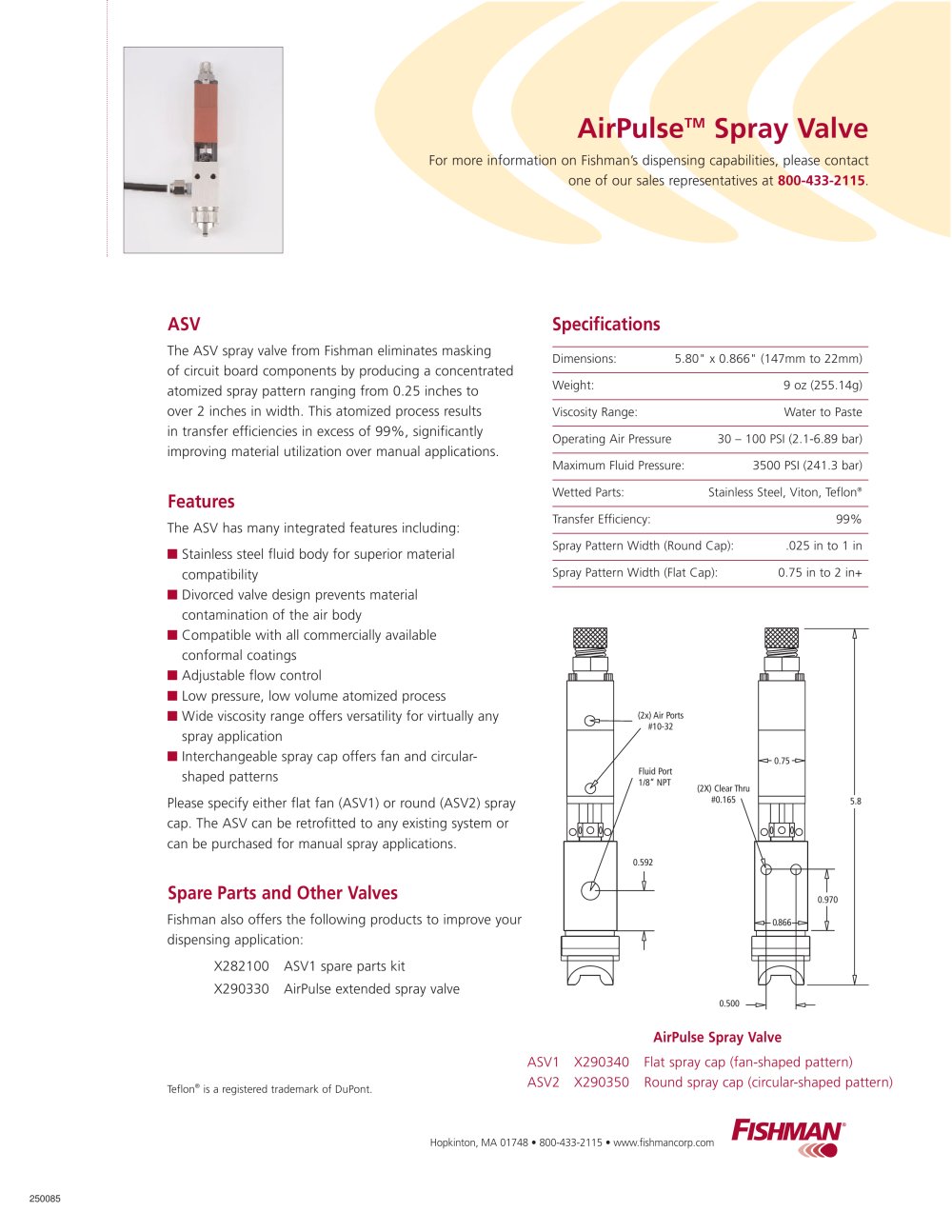

AirPulse Spray Valve - Fishman - #1

For more information on Fishman's dispensing capabilities, please contact one of our sales representatives at 800-433-2115.

The ASV spray valve from Fishman eliminates masking of circuit board components by producing a concentrated atomized spray pattern ranging from 0.25 inches to over 2 inches in width. This atomized process results in transfer efficiencies in excess of 99%, significantly improving material utilization over manual applications.

The ASV has many integrated features including:

■ Stainless steel fluid body for superior material compatibility

■ Divorced valve design prevents material contamination of the air body

■ Compatible with all commercially available conformal coatings

■ Adjustable flow control

■ Low pressure, low volume atomized process

■ Wide viscosity range offers versatility for virtually any spray application

■ Interchangeable spray cap offers fan and circular-shaped patterns

Please specify either flat fan (ASV1) or round (ASV2) spray cap. The ASV can be retrofitted to any existing system or can be purchased for manual spray applications.

Fishman also offers the following products to improve your dispensing application:

X282100 ASV1 spare parts kit X290330 AirPulse extended spray valve

5.80" x 0.866" (147mm to 22mm)

Dimensions:

Weight:

9 oz (255.14g)

Viscosity Range:

Water to Paste

30 - 100 PSI (2.1-6.89 bar)

Operating Air Pressure

Maximum Fluid Pressure:

3500 PSI (241.3 bar)

Wetted Parts:

Stainless Steel, Viton, Teflon®

Transfer Efficiency:

99%

Spray Pattern Width (Round Cap):

.025 in to 1 in

Spray Pattern Width (Flat Cap):

0.75 in to 2 in+

(2x) Air Ports #10-32

0.75

Fluid Port 1/8" NPT

(2X) Clear Thru #0.165

0.500

ASV1 X290340 Flat spray cap (fan-shaped pattern) ASV2 X290350 Round spray cap (circular-shaped pattern)

Teflon® is a registered trademark of DuPont.

Hopkinton, MA 01748 • 800-433-2115 • www.fishmancorp.com

250085
