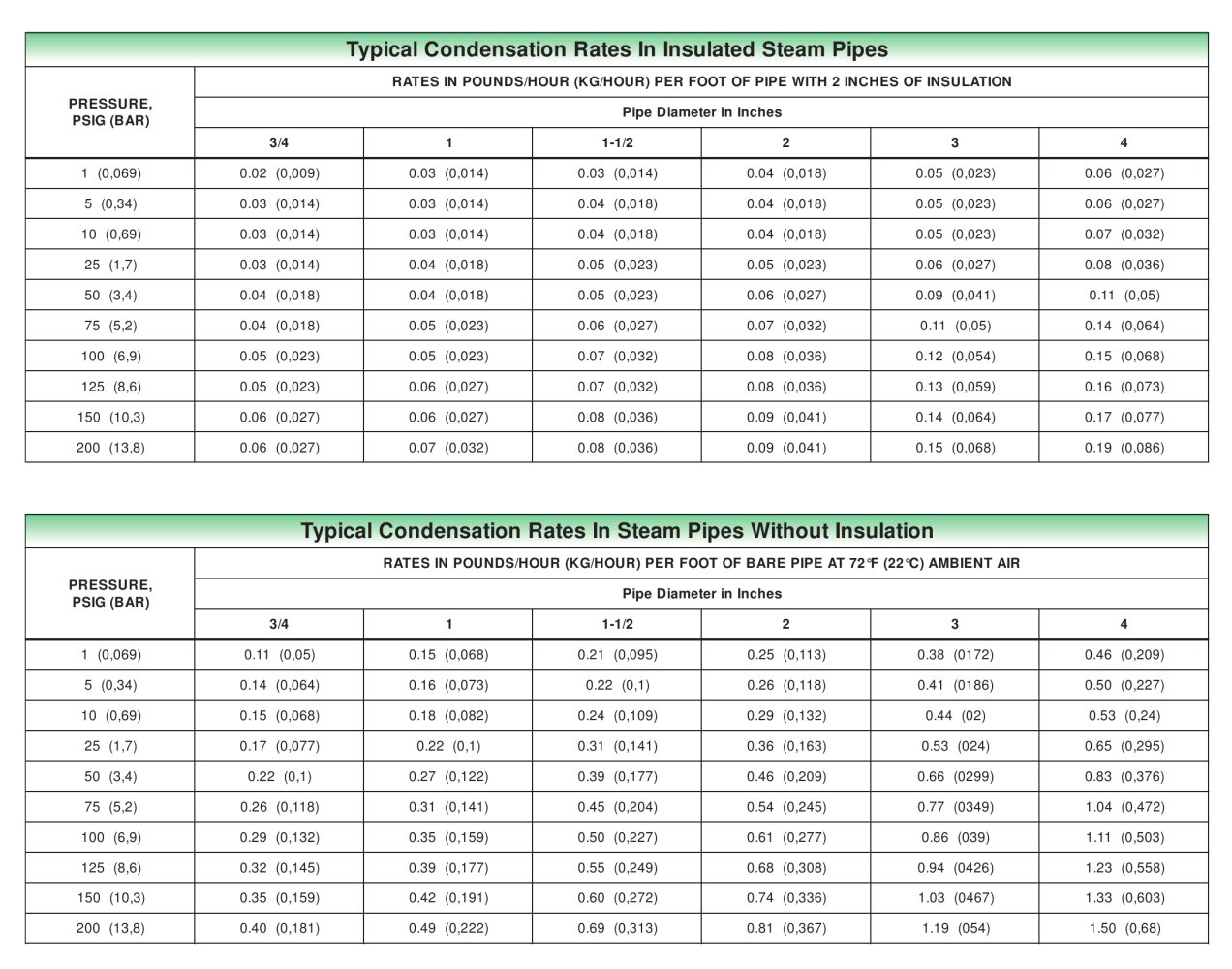

| | | | | | | | | | | | | | | | | Typical Condensation Rates In Insulated Steam Pipes | | | | | | | | | | | | | | | | | | PRESSURE, PSIG (BAR) | RATES IN POUNDS/HOUR (KG/HOUR) PER FOOT OF PIPE WITH 2 INCHES OF INSULATION | | | | Pipe Diameter in Inches | | | | 3/4 | 1 | 1-1/2 | 2 | 3 | 4 | | | | 1 (0,069) | 0.02 (0,009) | 0.03 (0,014) | 0.03 (0,014) | 0.04 (0,018) | 0.05 (0,023) | 0.06 (0,027) | | | | 5 (0,34) | 0.03 (0,014) | 0.03 (0,014) | 0.04 (0,018) | 0.04 (0,018) | 0.05 (0,023) | 0.06 (0,027) | | | | 10 (0,69) | 0.03 (0,014) | 0.03 (0,014) | 0.04 (0,018) | 0.04 (0,018) | 0.05 (0,023) | 0.07 (0,032) | | | | 25 (1,7) | 0.03 (0,014) | 0.04 (0,018) | 0.05 (0,023) | 0.05 (0,023) | 0.06 (0,027) | 0.08 (0,036) | | | | 50 (3,4) | 0.04 (0,018) | 0.04 (0,018) | 0.05 (0,023) | 0.06 (0,027) | 0.09 (0,041) | 0.11 (0,05) | | | | 75 (5,2) | 0.04 (0,018) | 0.05 (0,023) | 0.06 (0,027) | 0.07 (0,032) | 0.11 (0,05) | 0.14 (0,064) | | | | 100 (6,9) | 0.05 (0,023) | 0.05 (0,023) | 0.07 (0,032) | 0.08 (0,036) | 0.12 (0,054) | 0.15 (0,068) | | | | 125 (8,6) | 0.05 (0,023) | 0.06 (0,027) | 0.07 (0,032) | 0.08 (0,036) | 0.13 (0,059) | 0.16 (0,073) | | | | 150 (10,3) | 0.06 (0,027) | 0.06 (0,027) | 0.08 (0,036) | 0.09 (0,041) | 0.14 (0,064) | 0.17 (0,077) | | | | 200 (13,8) | 0.06 (0,027) | 0.07 (0,032) | 0.08 (0,036) | 0.09 (0,041) | 0.15 (0,068) | 0.19 (0,086) | | | | | | | | | | | | | | | | | | | | | | Typical Condensation Rates In Steam Pipes Without Insulation | | | | | | | | | | | | | | | | | | | | | | PRESSURE, PSIG (BAR) | RATES IN POUNDS/HOUR (KG/HOUR) PER FOOT OF BARE PIPE AT 72°F (22°C) AMBIENT AIR | | | | Pipe Diameter in Inches | | | | 3/4 | 1 | 1-1/2 | 2 | 3 | 4 | | | | 1(0,069) | 0.11 (0,05) | 0.15 (0,068) | 0.21 (0,095) | 0.25 (0,113) | 0.38 (0172) | 0.46 (0,209) | | | | 5(0,34) | 0.14 (0,064) | 0.16 (0,073) | 0.22 (0,1) | 0.26 (0,118) | 0.41 (0186) | 0.50 (0,227) | | | | 10 (0,69) | 0.15 (0,068) | 0.18 (0,082) | 0.24 (0,109) | 0.29 (0,132) | 0.44 (02) | 0.53 (0,24) | | | | 25 (1,7) | 0.17 (0,077) | 0.22 (0,1) | 0.31 (0,141) | 0.36 (0,163) | 0.53 (024) | 0.65 (0,295) | | | | 50 (3,4) | 0.22 (0,1) | 0.27 (0,122) | 0.39 (0,177) | 0.46 (0,209) | 0.66 (0299) | 0.83 (0,376) | | | | 75 (5,2) | 0.26 (0,118) | 0.31 (0,141) | 0.45 (0,204) | 0.54 (0,245) | 0.77 (0349) | 1.04 (0,472) | | | | 100 (6,9) | 0.29 (0,132) | 0.35 (0,159) | 0.50 (0,227) | 0.61 (0,277) | 0.86 (039) | 1.11 (0,503) | | | | 125 (8,6) | 0.32 (0,145) | 0.39 (0,177) | 0.55 (0,249) | 0.68 (0,308) | 0.94 (0426) | 1.23 (0,558) | | | | 150 (10,3) | 0.35 (0,159) | 0.42 (0,191) | 0.60 (0,272) | 0.74 (0,336) | 1.03 (0467) | 1.33 (0,603) | | | | 200 (13,8) | 0.40 (0,181) | 0.49 (0,222) | 0.69 (0,313) | 0.81 (0,367) | 1.19 (054) | 1.50 (0,68) | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
