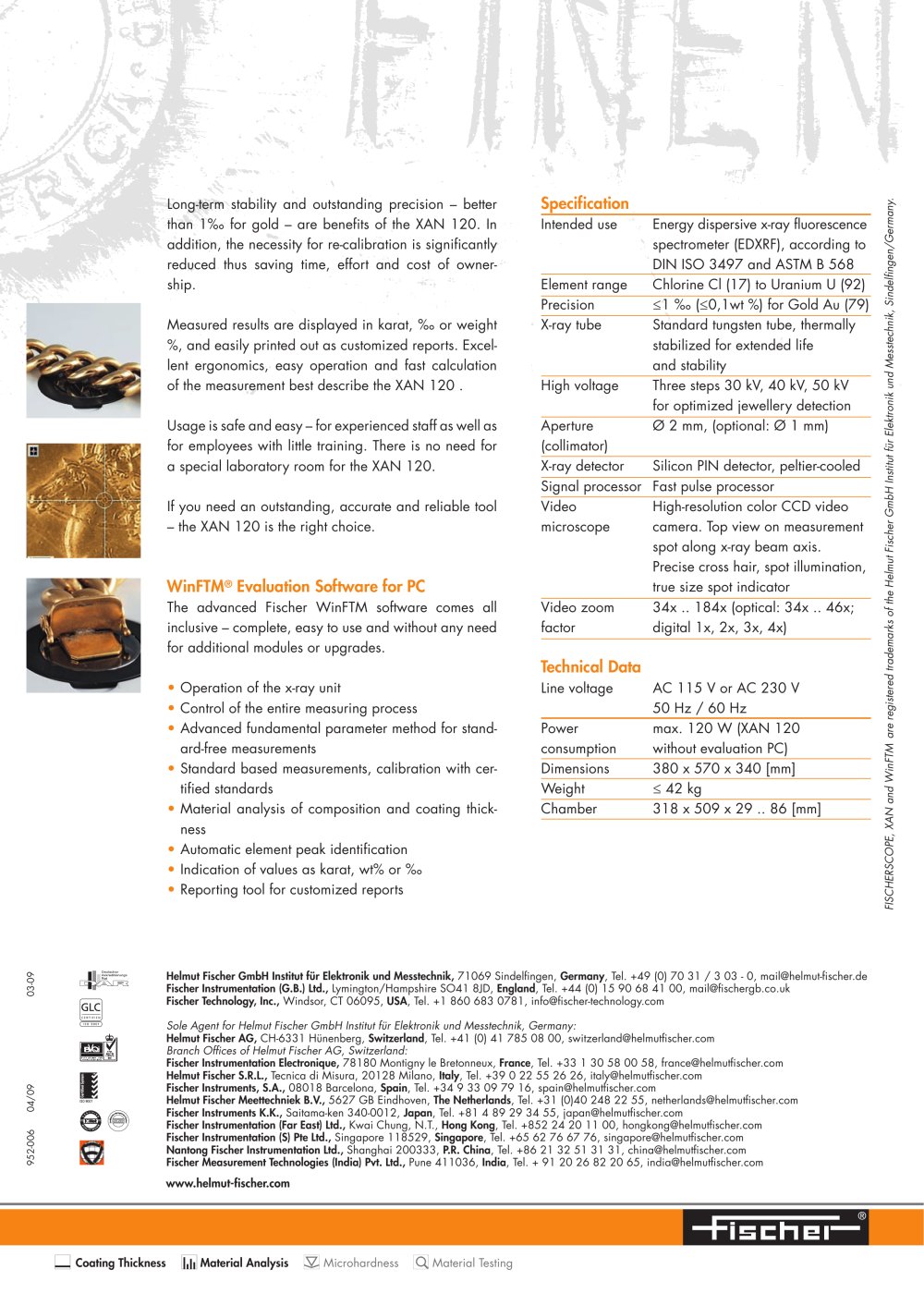

Long-term stability and outstanding precision – better than 1‰ for gold – are benefits of the XAN 120. In addition, the necessity for re-calibration is significantly reduced thus saving time, effort and cost of ownership. Measured results are displayed in karat, ‰ or weight %, and easily printed out as customized reports. Excellent ergonomics, easy operation and fast calculation of the measurement best describe the XAN 120 . Usage is safe and easy – for experienced staff as well as for employees with little training. There is no need for a special laboratory room for the XAN 120. If you need an outstanding, accurate and reliable tool – the XAN 120 is the right choice. WinFTM® Evaluation Software for PC The advanced Fischer WinFTM software comes all inclusive – complete, easy to use and without any need for additional modules or upgrades. • Operation of the x-ray unit • Control of the entire measuring process • Advanced fundamental parameter method for standard- free measurements • Standard based measurements, calibration with certified standards • Material analysis of composition and coating thickness • Automatic element peak identification • Indication of values as karat, wt% or ‰ • Reporting tool for customized reports Specification Intended use Energy dispersive x-ray fluorescence spectrometer (EDXRF), according to DIN ISO 3497 and ASTM B 568 Element range Chlorine Cl (17) to Uranium U (92) Precision 1 ‰ (0,1wt %) for Gold Au (79) X-ray tube Standard tungsten tube, thermally stabilized for extended life and stability High voltage Three steps 30 kV, 40 kV, 50 kV for optimized jewellery detection Aperture Ø 2 mm, (optional: Ø 1 mm) (collimator) X-ray detector Silicon PIN detector, peltier-cooled Signal processor Fast pulse processor Video High-resolution color CCD video microscope camera. Top view on measurement spot along x-ray beam axis. Precise cross hair, spot illumination, true size spot indicator Video zoom 34x .. 184x (optical: 34x .. 46x; factor digital 1x, 2x, 3x, 4x) Technical Data Line voltage AC 115 V or AC 230 V 50 Hz / 60 Hz Power max. 120 W (XAN 120 consumption without evaluation PC) Dimensions 380 x 570 x 340 [mm] Weight 42 kg Chamber 318 x 509 x 29 .. 86 [mm] Coating Thickness Material Analysis Microhardness Material Testing 952-006 04/09 03-09 Helmut Fischer GmbH Institut für Elektronik und Messtechnik, 71069 Sindelfingen, Germany, Tel. +49 (0) 70 31 / 3 03 - 0, mail@helmut-fischer.de Fischer Instrumentation (G.B.) Ltd., Lymington/Hampshire SO41 8JD, England, Tel. +44 (0) 15 90 68 41 00, mail@fischergb.co.uk Fischer Technology, Inc., Windsor, CT 06095, USA, Tel. +1 860 683 0781, info@fischer-technology.com Sole Agent for Helmut Fischer GmbH Institut für Elektronik und Messtechnik, Germany: Helmut Fischer AG, CH-6331 Hünenberg, Switzerland, Tel. +41 (0) 41 785 08 00, switzerland@helmutfischer.com Branch Offices of Helmut Fischer AG, Switzerland: Fischer Instrumentation Electronique, 78180 Montigny le Bretonneux, France, Tel. +33 1 30 58 00 58, france@helmutfischer.com Helmut Fischer S.R.L., Tecnica di Misura, 20128 Milano, Italy, Tel. +39 0 22 55 26 26, italy@helmutfischer.com Fischer Instruments, S.A., 08018 Barcelona, Spain, Tel. +34 9 33 09 79 16, spain@helmutfischer.com Helmut Fischer Meettechniek B.V., 5627 GB Eindhoven, The Netherlands, Tel. +31 (0)40 248 22 55, netherlands@helmutfischer.com Fischer Instruments K.K., Saitama-ken 340-0012, Japan, Tel. +81 4 89 29 34 55, japan@helmutfischer.com Fischer Instrumentation (Far East) Ltd., Kwai Chung, N.T., Hong Kong, Tel. +852 24 20 11 00, hongkong@helmutfischer.com Fischer Instrumentation (S) Pte Ltd., Singapore 118529, Singapore, Tel. +65 62 76 67 76, singapore@helmutfischer.com Nantong Fischer Instrumentation Ltd., Shanghai 200333, P.R. China, Tel. +86 21 32 51 31 31, china@helmutfischer.com Fischer Measurement Technologies (India) Pvt. Ltd., Pune 411036, India, Tel. + 91 20 26 82 20 65, india@helmutfischer.com www.helmut-fischer.com FISCHERSCOPE, XAN and WinFTM are registered trademarks of the Helmut Fischer GmbH Institut für Elektronik und Messtechnik, Sindelfingen/Germany.
