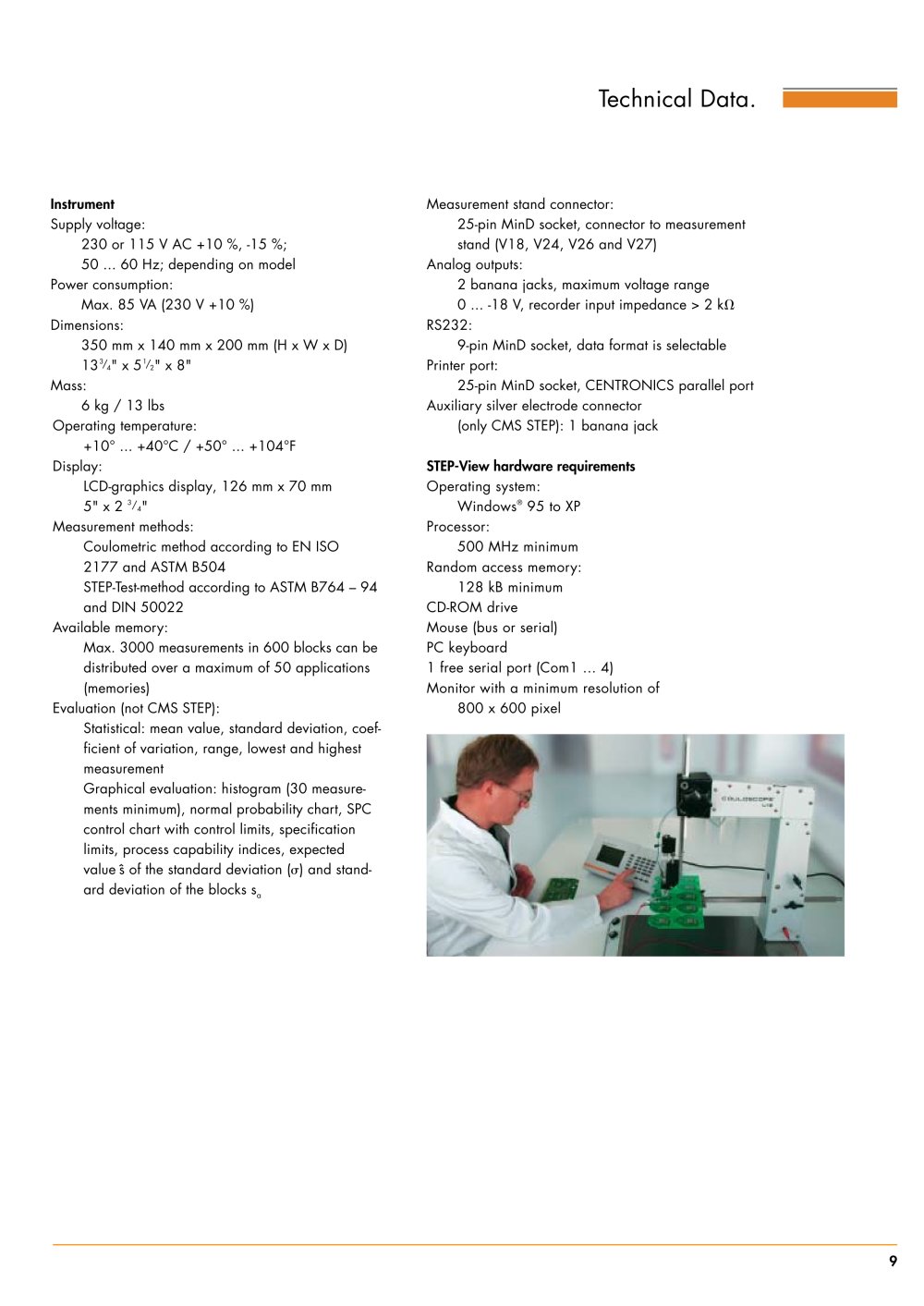

+10° ... +40°C / +50° ... +104°F Display: LCD-graphics display, 126 mm x 70 mm 5" x 2 3/4" Measurement methods: Coulometric method according to EN ISO 2177 and ASTM B504 STEP-Test-method according to ASTM B764 – 94 and DIN 50022 Available memory: Max. 3000 measurements in 600 blocks can be distributed over a maximum of 50 applications (memories) Evaluation (not CMS STEP): Statistical: mean value, standard deviation, coefficient of variation, range, lowest and highest measurement Graphical evaluation: histogram (30 measurements minimum), normal probability chart, SPC control chart with control limits, specification limits, process capability indices, expected valueˆs of the standard deviation () and standard deviation of the blocks sa Measurement stand connector: 25-pin MinD socket, connector to measurement stand (V18, V24, V26 and V27) Analog outputs: 2 banana jacks, maximum voltage range 0 ... -18 V, recorder input impedance > 2 k RS232: 9-pin MinD socket, data format is selectable Printer port: 25-pin MinD socket, CENTRONICS parallel port Auxiliary silver electrode connector (only CMS STEP): 1 banana jack STEP-View hardware requirements Operating system: Windows® 95 to XP Processor: 500 MHz minimum Random access memory: 128 kB minimum CD-ROM drive Mouse (bus or serial) PC keyboard 1 free serial port (Com1 ... 4) Monitor with a minimum resolution of 800 x 600 pixel Technical Data. 9 Instrument Supply voltage: 230 or 115 V AC +10 %, -15 %; 50 ... 60 Hz; depending on model Power consumption: Max. 85 VA (230 V +10 %) Dimensions: 350 mm x 140 mm x 200 mm (H x W x D) 133/4" x 51/2" x 8" Mass: 6 kg / 13 lbs Operating temperature:
