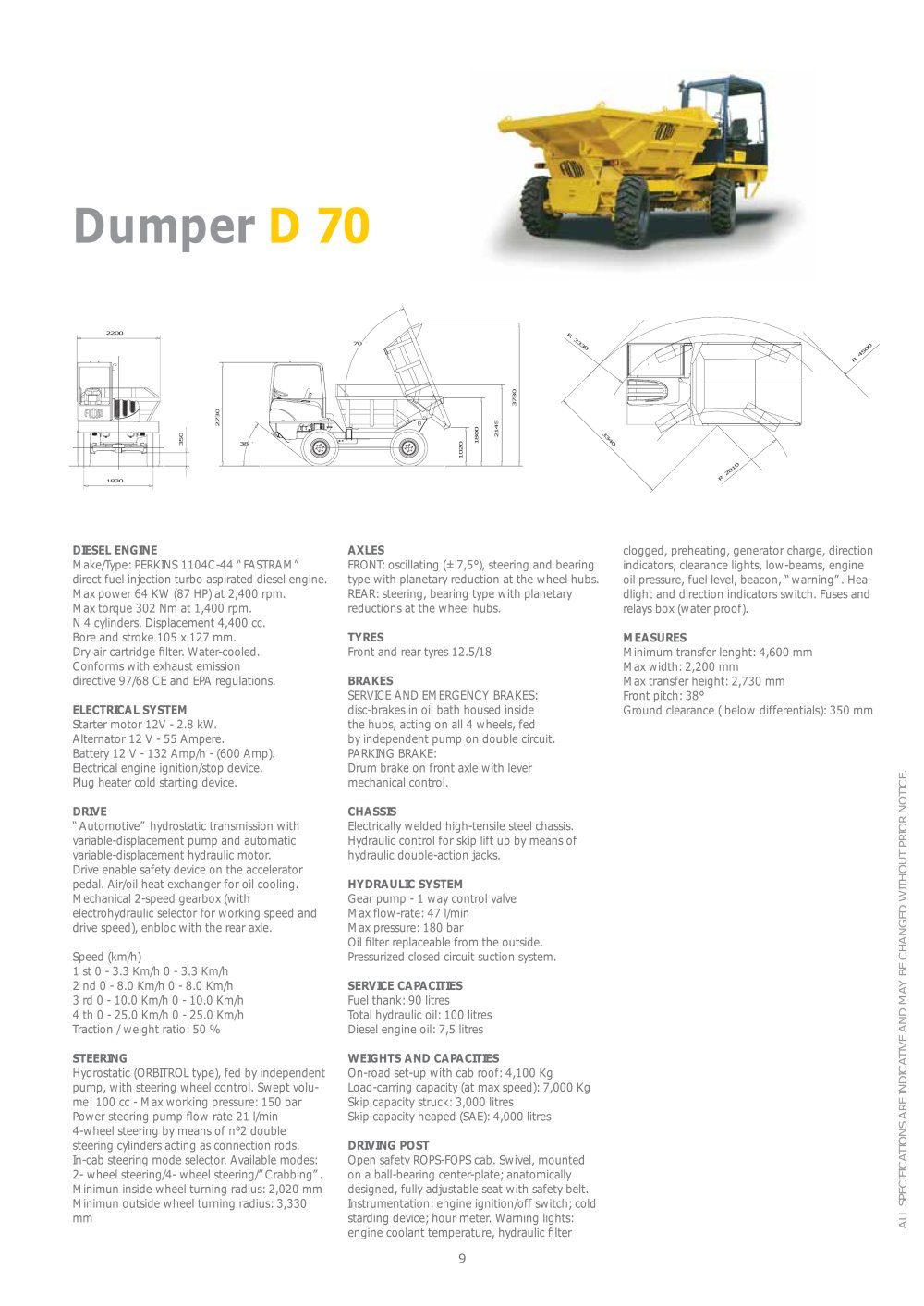

Text version of the page
|
|
|||||
 |
|||||
|
|
|||||
|
DIESEL ENGINE
Make/Type: FERONS 1104C-44 " FASTRAM" direct fuel injection turbo aspirated diesel engine. Max power 64 KW (87 HP) at 2,400 rpm. Max torque 302 Nm at 1,400 rpm. N 4 cylinders Displacement 4,400 cc. Bore and stroke 105 x 127 mm. Dry air cartridge filter. Water-cooled. Conforms with exhaust emisson directive 97/68 CE and EPA regulations
ELECTRICAL SYSTEM
Starter motor 12V - 2.8 kW Alternator 12 V - 55 Ampere. Battery 12 V - 132 Amp/h - (600 Amp). Eectrical engine ignition/stop device. Pug heater cold starting device.
DRIVE
" Automotive" hydrostatic transmission with variable-displacement pump and automatic variable-displacement hydraulic motor. Drive enable safety device on the accelerator pedal. Air/oil heat exchanger for oil cooling. Mechanical 2-speed gearbox (with electrohydraulic selector for working speed and drive speed), enbloc with the rear axle.
Speed (km/h)
1 st 0 - 3.3 Km/h 0 - 3.3 Km/h
2 nd 0 - 8.0 Km/h 0 - 8.0 Km/h
3 rd 0 - 10.0 Km/h 0 - 10.0 Km/h
4 th 0 - 25.0 Km/h 0 - 25.0 Km/h Traction / weight ratio: 50 %
|
AXLES
FRONT: oscillating (± 7,5"), steering and bearing type with planetary reduction at the wheel hubs. REAR: steering, bearing type with planetary reductions at the wheel hubs.
TYRES
Front and rear tyres 12.5/18 BRAKES
SERVICE AND EMERGENCY BRAKES disc-brakes in oil bath housed inside the hubs, acting on all 4 wheels, fed by independent pump on double circuit.
PARKING BRAKE:
Drum brake on front axle with lever mechanical control.
CHASSIS
Electrically welded high-tensile steel chassis. Hydraulic control for skip lift up by means of hydraulic double-action jacks.
HYDRAULIC SYSTEM
Gear pump - 1 way control valve
Max flow-rate: 47 l/min
Max pressure: 180 bar
Oil filter replaceable from the outside.
Pressurized closed circuit suction system.
SERVICE CAPACITIES
Fuel thank: 90 litres
Total hydraulic oil: 100 litres
Diesel engine oil: 7,5 litres
|
clogged, preheating, generator charge, direction indicators, clearance lights, low-beams, engine oil pressure, fuel level, beacon, " warning" . Hea-dlight and direction indicators switch. Fuses and relays box (water proof).
M EASURES
Minimum transfer lenght: 4,600 mm Max width: 2,200 mm Max transfer height: 2,730 mm Front pitch: 38°
Ground clearance ( below differentials): 350 mm
|
|||
|
C
ITO
N R OI
IRP
T O
HTI WDE
G N A H C E B
YA
M
|
|||||
|
|
|||||
|
STEERING
Hydrostatic (ORBITROL type), fed by independent pump, with steering wheel control. Swept volume: 100 cc - Max working pressure: 150 bar Power steering pump flow rate 21 l/min 4-wheel steering by means of n°2 double steering cylinders acting as connection rods. In-cab steering mode selector. Available modes: 2- wheel steering/4- wheel steering/" Crabbing" . Minimun inside wheel turning radius: 2,020 mm Minimun outside wheel turning radius: 3,330 mm
|
WEIGHTS AND CAPACITIES
On-road set-up with cab roof: 4,100 Kg Load-carring capacity (at max speed): 7,000 Kg Skip capacity struck: 3,000 litres Skip capacity heaped (SAE): 4,000 litres
DRIVING POST
Open safety ROPS-FOPS cab. Swivel, mounted on a ball-bearing center-plate; anatomically desgned, fully adjustable seat with safety belt. Instrumentation: engine ignition/off switch; cold starding device; hour meter. Warning lights: engine coolant temperature, hydraulic filter
|
