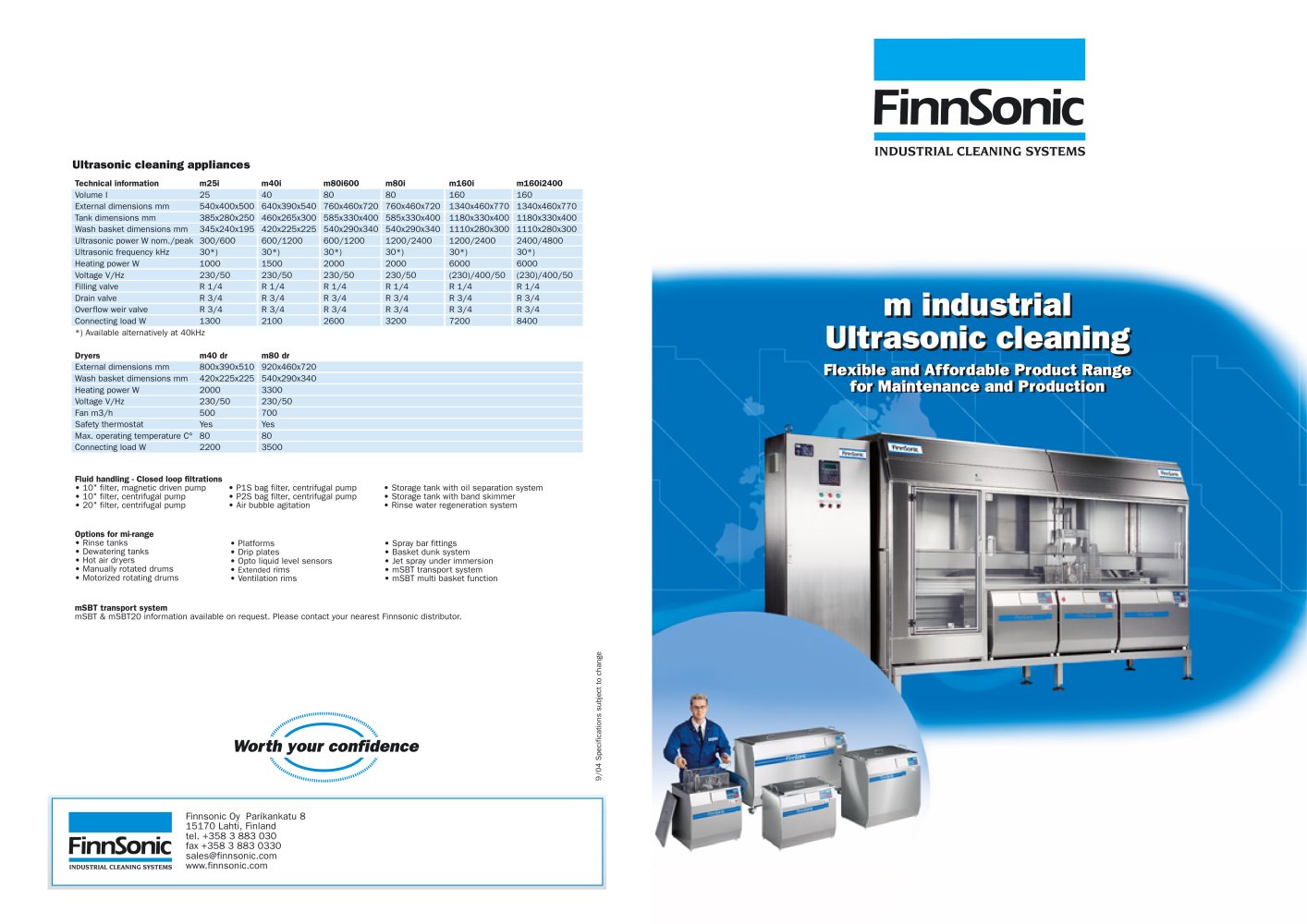

| | | FinnSonic | | |
| | | |
| | | Ultrasonic cleaning appliances | | |
| | | |
| | | | | | | | | | | | | | | Technical information | m25i | m40i | m80i600 | m80i | ml60i | ml60i2400 | | | | Volume 1 | 25 | 40 | 80 | 80 | 160 | 160 | | | | External dimensions mm | 540x400x500 | 640x390x540 | 760x460x720 | 760x460x720 | 1340x460x770 | 1340x460x770 | | | | Tank dimensions mm | 385x280x250 | 460x265x300 | 585x330x400 | 585x330x400 | 1180x330x400 | 1180x330x400 | | | | Wash basket dimensions mm | 345x240x195 | 420x225x225 | 540x290x340 | 540x290x340 | 1110x280x300 | 1110x280x300 | | | | Ultrasonic power W nom./peak Ultrasonic frequency kHz | 300/600 30*) | 600/1200 30*) | 600/1200 30*) | 1200/2400 30*) | 1200/2400 30*) | 2400/4800 30*) | | | | Heating power W | 1000 | 1500 | 2000 | 2000 | 6000 | 6000 | | | | Voltage V/Hz | 230/50 | 230/50 | 230/50 | 230/50 | (230)/400/50 | (230)/400/50 | | | | Filling valve | R 1/4 | R 1/4 | R 1/4 | R 1/4 | R 1/4 | R 1/4 | | | | | R 3/4 | R 3/4 | R 3/4 | R 3/4 | R 3/4 | R 3/4 | | | | Overflow weir valve | R 3/4 | R 3/4 | R 3/4 | R 3/4 | R 3/4 | R 3/4 | | | | Connecting load W | 1300 | 2100 | 2600 | 3200 | 7200 | 8400 | | | | *) Available alternatively at 40kHz | | | | | | | | | | m40 dr | m80 dr | | | | | | | | External dimensions mm | 800x390x510 | 920x460x720 | | | | | | | | Wash basket dimensions mm | 420x225x225 | 540x290x340 | | | | | | | | Heating power W | 2000 | 3300 | | | | | | | | Voltage V/Hz | 230/50 | 230/50 | | | | | | | | Fan m3/h | 500 | 700 | | | | | | | | | Yes | Yes | | | | | | | | Max. operating temperature C° | 80 | 80 | | | | | | | | Connecting load W | 2200 | 3500 | | | | | | | | | | | | | | | | | | |
| | | |
| | | Fluid handling - Closed loop filtrations • 10" filter, magnetic driven pump • 20" filter, centrifugal pump | | |
| | | PIS bag filter, centrifugal pump P2S bag filter, centrifugal pump Air bubble agitation | | Storage tank with oil separation system Storage tank with band skimmer Rinse water regeneration system | | |
| | | |
| | | Options for mi-range • Rinse tanks • Dewatering tanks • Manually rotated drums • Motorized rotating drums | | |
| | | • Platforms • Drip plates • Extended rims • Ventilation rims | | • Basket dunk system • Jet spray under immersion • mSBT transport system • mSBT multi basket function | | |
| | | |
| | | |
| | | mSBT transport system mSBT & mSBT20 information available on request. Please contact your nearest Finnsonic distributor. | | |
| | | |
| | | Worth your confidence | '''"'lllll.......o> | | |
| | | |
| | | | | | | | | | | | FinnSonic INDUSTRIAL CLEANING SYSTEMS | Finnsonic Oy Parikankatu 8 15170 Lahti, Finland tel. +358 3 883 030 fax +358 3 883 0330 sales@finnsonic.com www.finnsonic.com | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | |
