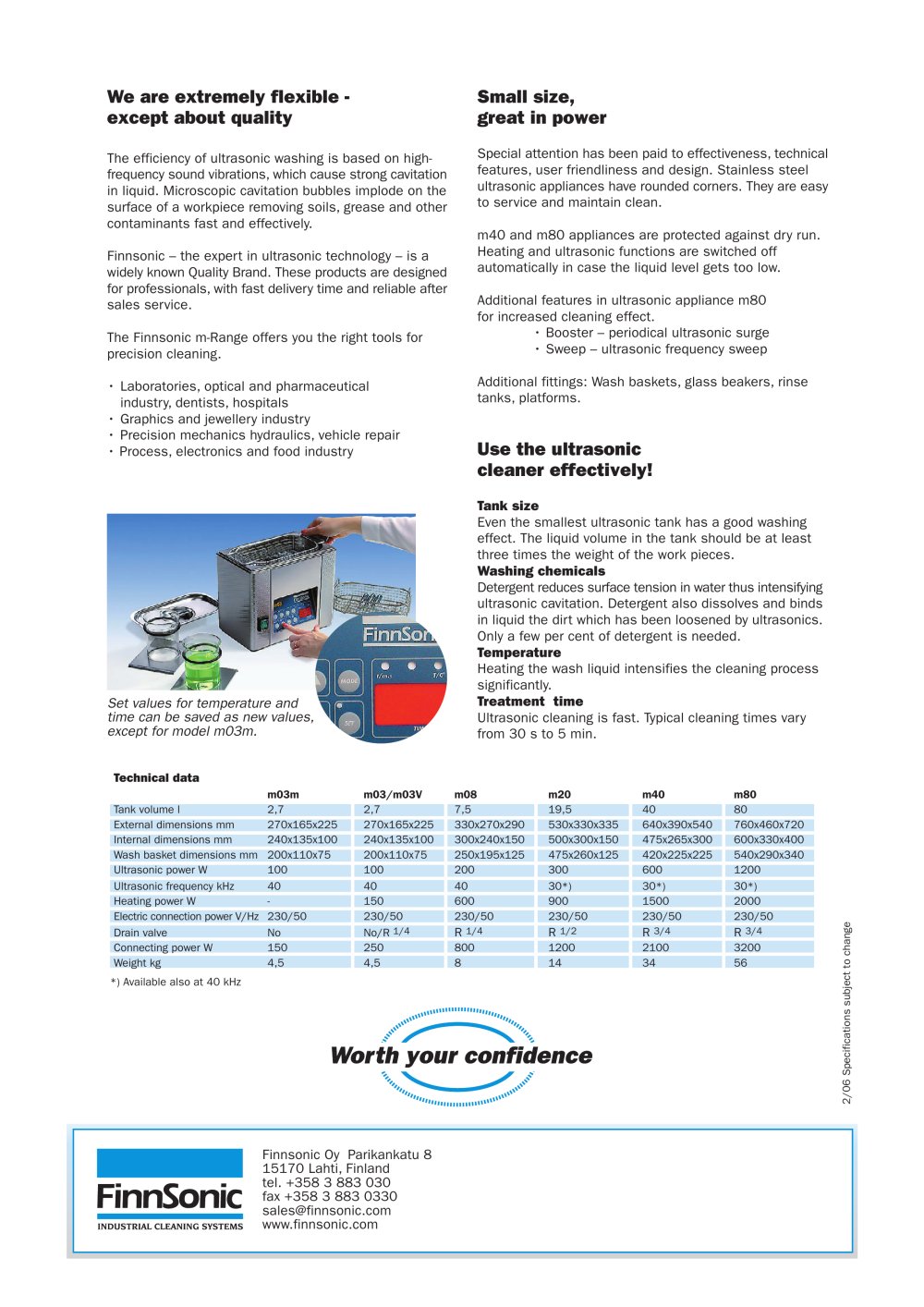

| We are extremely flexible -except about quality | Small size, great in power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Special attention has been paid to effectiveness, technical features, user friendliness and design. Stainless steel ultrasonic appliances have rounded corners. They are easy to service and maintain clean. m40 and m80 appliances are protected against dry run. Heating and ultrasonic functions are switched off automatically in case the liquid level gets too low. Additional features in ultrasonic appliance m80 for increased cleaning effect. • Booster - periodical ultrasonic surge • Sweep - ultrasonic frequency sweep Additional fittings: Wash baskets, glass beakers, rinse tanks, platforms. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| The efficiency of ultrasonic washing is based on high-frequency sound vibrations, which cause strong cavitation in liquid. Microscopic cavitation bubbles implode on the surface of a workpiece removing soils, grease and other contaminants fast and effectively. Finnsonic - the expert in ultrasonic technology - is a widely known Quality Brand. These products are designed for professionals, with fast delivery time and reliable after sales service. The Finnsonic m-Range offers you the right tools for precision cleaning. • Laboratories, optical and pharmaceutical industry, dentists, hospitals • Graphics and jewellery industry • Precision mechanics hydraulics, vehicle repair • Process, electronics and food industry | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Use the ultrasonic cleaner effectively! Tank size Even the smallest ultrasonic tank has a good washing effect. The liquid volume in the tank should be at least three times the weight of the work pieces. Washing chemicals Detergent reduces surface tension in water thus intensifying ultrasonic cavitation. Detergent also dissolves and binds in liquid the dirt which has been loosened by ultrasonics. Only a few per cent of detergent is needed. Temperature Heating the wash liquid intensifies the cleaning process significantly. Treatment time Ultrasonic cleaning is fast. Typical cleaning times vary from 30 s to 5 min. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical data Tank volume l External dimensions mm Internal dimensions mm Wash basket dimensions mm Ultrasonic power W Ultrasonic frequency kHz Heating power W Electric connection power V/Hz Drain valve Connecting power W Weight kg *) Available also at 40 kHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| m03m 2,7 270x165x225 240x135x100 200x110x75 100 40 230/50 No 150 4,5 | m03/m03V 2,7 270x165x225 240x135x100 200x110x75 100 40 150 230/50 No/R 1/4 250 4,5 | m08 7,5 330x270x290 300x240x150 250x195x125 200 40 600 230/50 R 1/4 800 8 | m20 19,5 530x330x335 500x300x150 475x260x125 300 30*) 900 230/50 R 1/2 1200 14 | m40 40 640x390x540 475x265x300 420x225x225 600 30*) 1500 230/50 R 3/4 2100 34 | m80 80 760x460x720 600x330x400 540x290x340 1200 30*) 2000 230/50 R 3/4 3200 56 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0) re sz c G m ZT vi c ra G 'g a. en CD O CN | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Worth your confidence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
