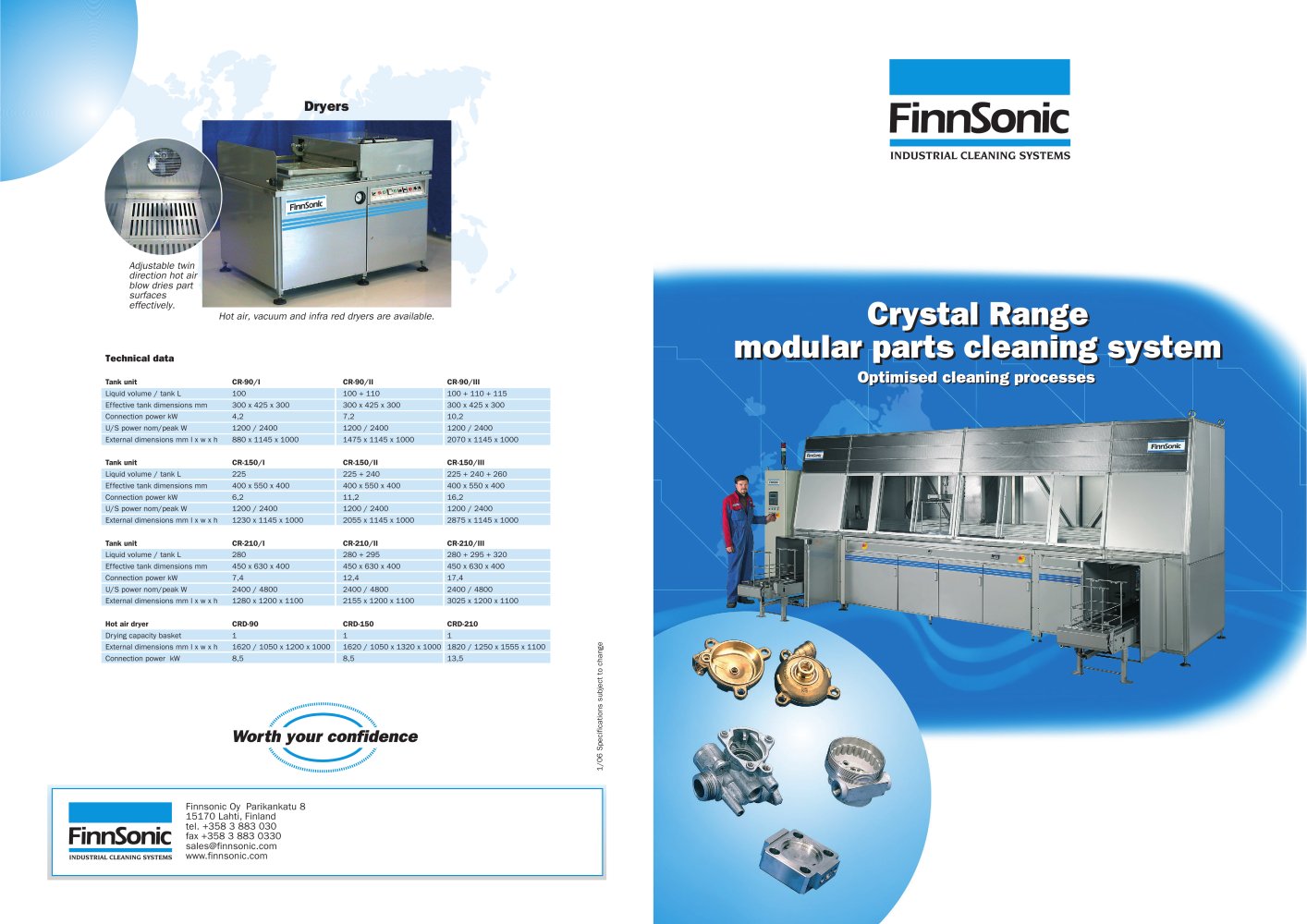

Catalogue - Modular parts cleaning system - Finnsonic

See other catalogues for Finnsonic

Solvent cleaning machine, Dryer, Ultrasonic transducer, Ultrasonic cleaning tank, Washing machine

Text version of the page

Dryers

FinnSonic

INDUSTRIAL CLEANING SYSTEMS

Hot air, vacuum and infra red dryers are available.

Technical data


Tank unit	CR-90/1	CR-90/11	CR-90/1 II
Liquid volume / tank L	100	100 +110	100 + 110 + 115
Effective tank dimensions mm	300 x 425 x 300	300 x 425 x 300	300 x 425 x 300
Connection power kW	4,2	7,2	10,2
U/S power nom/peak W	1200 / 2400	1200 / 2400	1200 / 2400

External dimensions mm I xwx h 880x1145x1000 1475x1145x1000 2070x1145x1000

Tank unit CR-150/1 CR-150/II CR-150/III


Liquid volume / tank L	225	225 + 240	225 + 240 + 260
Effective tank dimensions mm	400 x 550 x 400	400 x 550 x 400	400 x 550 x 400
Connection power kW	6,2	11,2	16,2
U/S power nom/peak W	1200 / 2400	1200 / 2400	1200 / 2400

External dimensions mm I xwx h 1230x1145x1000 2055x1145x1000 2875x1145x1000

Tank unit CR-210/1 CR-210/II CR-210/III


Liquid volume / tank L	280	280 + 295	280 + 295 + 320
Effective tank dimensions mm	450 x 630 x 400	450 x 630 x 400	450 x 630 x 400
Connection power kW	7,4	12,4	17,4
U/S power nom/peak W	2400 / 4800	2400 / 4800	2400 / 4800

External dimensions mm I xwx h 1280x1200x1100 2155x1200x1100 3025x1200x1100

Hot air dryer

CRD-90

CRD-150

CRD-210

Worth your confidence

"""«..................."^

Finnsonic Oy Parikankatu 8 15170 Lahti, Finland tel. +358 3 883 030 fax +358 3 883 0330 sales@finnsonic.com www.finnsonic.com

FinnSonic

INDUSTRIAL CLEANING SYSTEMS
