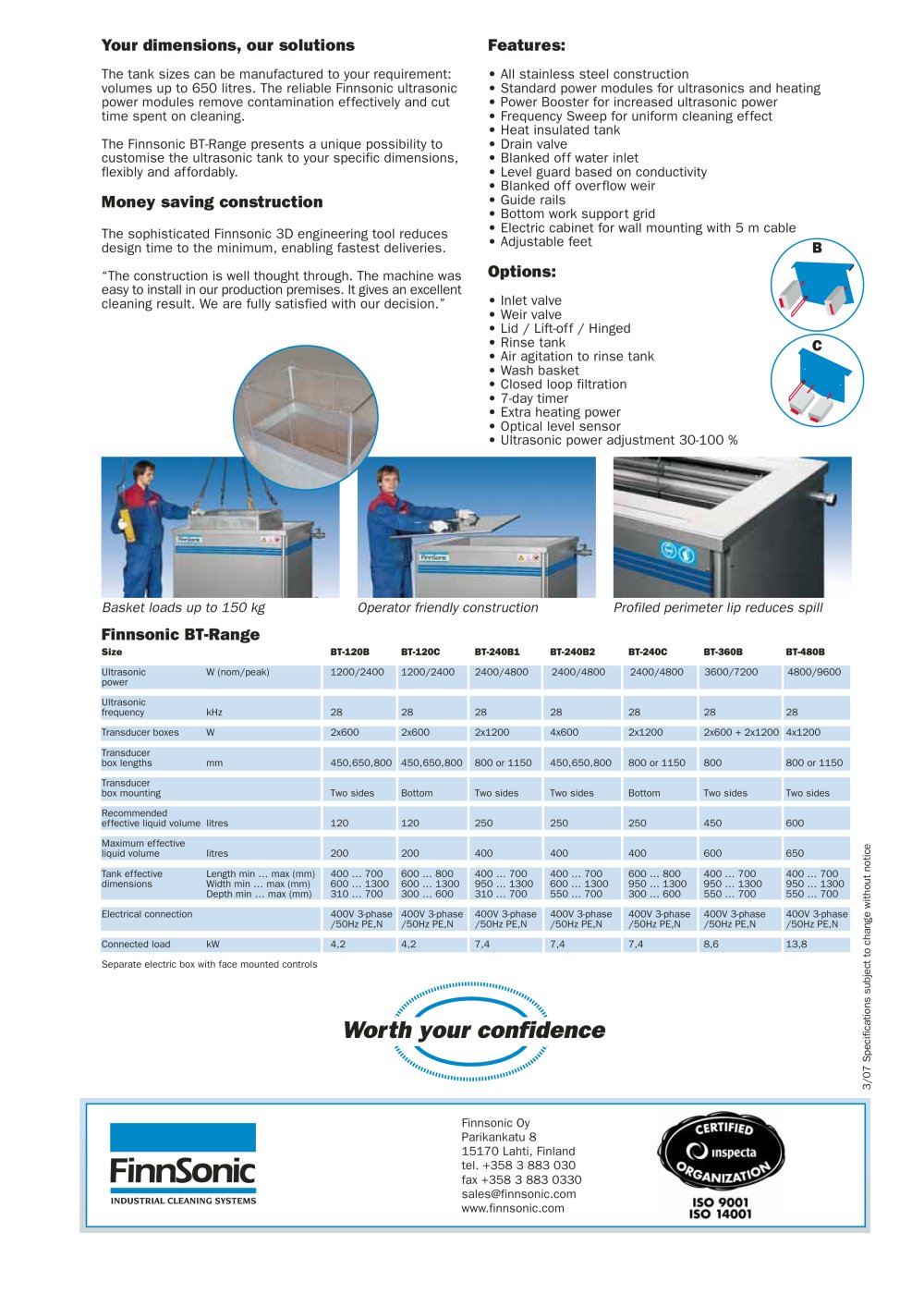

Your dimensions, our solutions

Features:

The tank sizes can be manufactured to your requirement: volumes up to 650 litres. The reliable Finnsonic ultrasonic power modules remove contamination effectively and cut time spent on cleaning.

The Finnsonic BT-Range presents a unique possibility to customise the ultrasonic tank to your specific dimensions, flexibly and affordably.

Money saving construction

The sophisticated Finnsonic 3D engineering tool reduces design time to the minimum, enabling fastest deliveries.

"The construction is well thought through. The machine was easy to install in our production premises. It gives an excellent cleaning result. We are fully satisfied with our decision."

All stainless steel construction

Standard power modules for ultrasonics and heating

Power Booster for increased ultrasonic power

Frequency Sweep for uniform cleaning effect

Heat insulated tank

Drain valve

Blanked off water inlet Level guard based on conductivity Blanked off overflow weir Guide rails

Bottom work support grid Electric cabinet for wall mounting with 5 m cable Adjustable feet

Options:

Inlet valve Weir valve

Lid / Lift-off / Hinged Rinse tank

Air agitation to rinse tank Wash basket Closed loop filtration 7-day timer Extra heating power Optical level sensor Ultrasonic power adjustment 30-100 %

Basket loads up to 150 kg Finnsonic BT-Range

Operator friendly construction

Profiled perimeter lip reduces spill


Size		BT-120B	BT-120C	BT-240B1	BT-240B2	BT-240C	BT-360B	BT-480B
Ultrasonic power	W (nom/peak)	1200/2400	1200/2400	2400/4800	2400/4800	2400/4800	3600/7200	4800/9600

Ultrasonic frequency	kHz	28	28	28	28	28	28	28

Transducer boxes

2x600

2x1200

4x600

2x1200

2x600 + 2x1200 4x1200


Transducer
box lengths	mm	450,650,800 450,650,800 800 or 1150	450,650,800 800 or 1150	800	800 or 1150


Transducer
box mounting	Two sides	Bottom	Two sides	Two sides	Bottom	Two sides	Two sides


Recommended
effective liquid volume litres	120	120	250	250	250	450	600


Maximum effective
liquid volume	litres	200	200	400	400	400	600	650

cu o


Tank effective	Length min ..	max (mm)	400 ...	700	600 .	800	400 .	700	400 .	700	600 .	800	400 .	700	400 .	700
dimensions	Width min ...	max (mm)	600 ...	1300	600 .	1300	950 .	1300	600 .	1300	950 .	1300	950 .	1300	950 .	1300
	Depth min .	max (mm)	310 .	700	300 .	600	310 .	700	550 .	700	300 .	600	550 .	700	550 .	700

Electrical connection

400V 3-phase 400V 3-phase 400V 3-phase 400V 3-phase 400V 3-phase 400V 3-phase /50Hz PE,N /50Hz PE,N /50Hz PE,N /50Hz PE,N /50Hz PE,N /50Hz PE,N

400V 3-phase /50Hz PE,N

tuo

o o

o <u

o _o

"Ö

<D Q. 05 hO


Connected load	kW	4,2	4,2	7,4	7,4	7,4	8,6	13,8

Separate electric box with face mounted controls
