Art.
A
Al
B
c
L
CH
Min. pack.
1052/1
1/8"
1/8"
6
6
16,5
14
20
1052/2
1/8"
1/4"
6
8
19
17
20
1052/3
1/8"
3/8"
6
9
20
19
20
1052/4
1/8"
1/2"
6
10
21,5
24
20
1052/5
1/4"
1/4"
8
8
21
17
20
1052/6
1/4"
3/8"
8
9
22
19
20
1052/7
1/4"
1/2"
9,5
12
29,5
24
20
1052/8
3/8"
3/8"
9
9
23
19
20
1052/9
3/8"
1/2"
9
10
24,5
24
20
1052/10
1/2"
1/2"
10
10
25,5
24
20
1052/11
1/2"
3/4"
14
16,5
37,5
27
10
1052

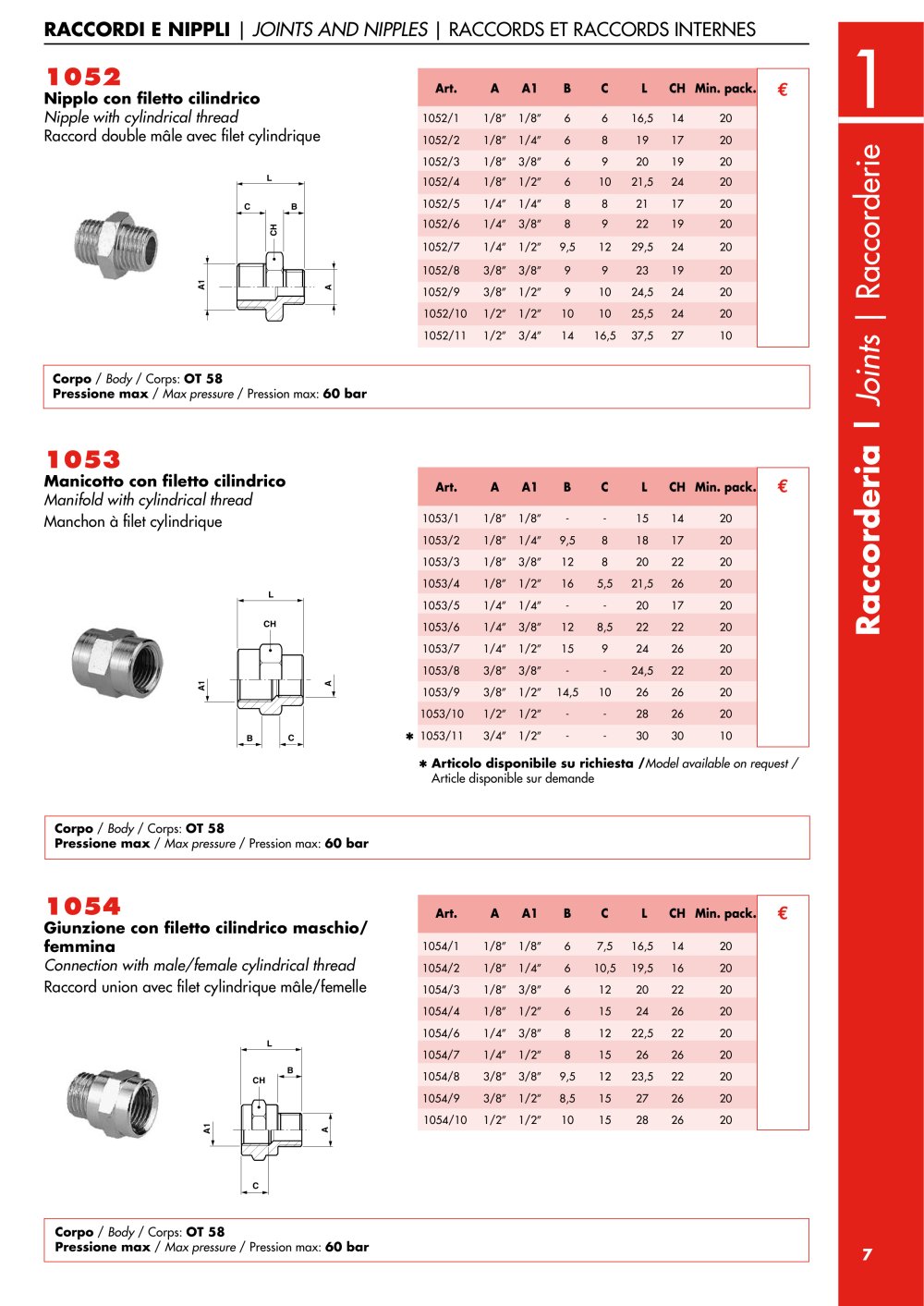

Nipplo con filetto cilindrico
Nipple with cylindrical thread
Raccord double mâle avec filet cylindrique
Corpo / Body I Corps: OT 58
Pressione max / Max pressure / Pression max: 60 bar
1053
Manicotto con filetto cilindrico
Manifold with cylindrical thread Manchon ā filet cylindrique
Art.
A
Al
B
c
L
CH
Min. pack.
1053/1
1/8"
1/8"
15
14
20
1053/2
1/8"
1/4"
9,5
8
18
17
20
1053/3
1/8"
3/8"
12
8
20
22
20
1053/4
1/8"
1/2"
16
5,5
21,5
26
20
1053/5
1/4"
1/4"
20
17
20
1053/6
1/4"
3/8"
12
8,5
22
22
20
1053/7
1/4"
1/2"
15
9
24
26
20
1053/8
3/8"
3/8"
24,5
22
20
1053/9
3/8"
1/2"
14,5
10
26
26
20
1053/10
1/2"
1/2"
28
26
20
1053/11
3/4"
1/2"
30
30
10
* Articolo disponibile su richiesta IModel available on request/ Article disponible sur demande
Corpo / Body I Corps: OT 58
Pressione max / Max pressure I Pression max: 60 bar
Art.
A
Al
B
c
L
CH
Min. pack.
€
1054/1
1/8"
1/8"
6
7,5
16,5
14
20
1054/2
1/8"
1/4"
6
10,5
19,5
16
20
1054/3
1/8"
3/8"
6
12
20
22
20
1054/4
1/8"
1/2"
6
15
24
26
20
1054/6
1/4"
3/8"
8
12
22,5
22
20
1054/7
1/4"
1/2"
8
15
26
26
20
1054/8
3/8"
3/8"
9,5
12
23,5
22
20
1054/9
3/8"
1/2"
8,5
15
27
26
20
1054/10
1/2"
1/2"
10
15
28
26
20
1054
Giunzione con filetto cilindrico maschio/ femmina
Connection with male/female cylindrical thread Raccord union avec filet cylindrique māle/femelle
L
