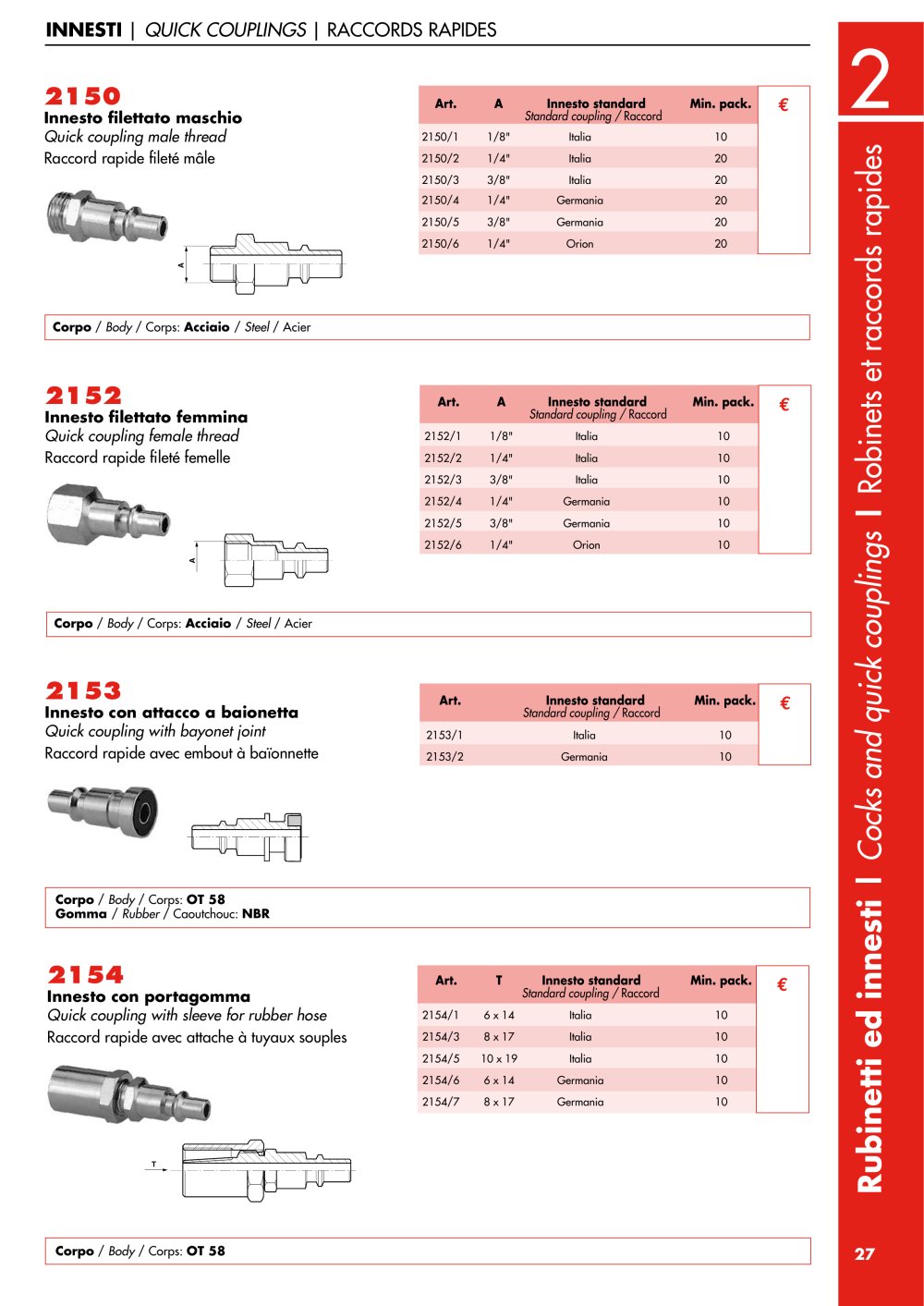

Text version of the page
Art.
A
Innesto standard
Standard coupling / Raccord
Min. pack.
2150/1
1/8"
Italia
10
2150/2
1/4"
Italia
20
2150/3
3/8"
Italia
20
2150/4
1/4"
Germania
20
2150/5
3/8"
Germania
20
2150/6
1/4"
Orion
20
21 50
Innesto filettato maschio
Quick coupling male thread Raccorci rapide fi lete male
POP
Corpo / Body / Corps: Acciaio / Steel / Acier
Art.
A
Innesto standard
Min. pack.
Standard coupling / Raccord
2152/1
1/8"
Italia
10
2152/2
1/4"
Italia
10
2152/3
3/8"
Italia
10
2152/4
1/4"
Germania
10
2152/5
3/8"
Germania
10
2152/6
1/4"
Orion
10
Innesto filettato femmina
Quick coupling fermale thread Raccorci rapide fileté femelle
Corpo / Body / Corps: Acciaio / Steel / Acier
2153
Innesto con attacco a baionetta
Quick coupling with bayonet joint Raccord rapide avec embout à baïonnette
Art.
Innesto standard
Min. pack.
Standard coupling / Raccord
2153/1
Italia
10
2153/2
Germania
10
- - ;rf\ \ \ \ \ \ ^
Corpo / Body I Corps: OT 58 Gomma / Rubber / Caoutchouc: NBR
Art.
T
Innesto standard
Min. pack.
Standard coupling / Raccord
2154/1
6x14
Italia
10
2154/3
8x17
Italia
10
2154/5
10x19
Italia
10
2154/6
6x14
Germania
10
2154/7
8x17
Germania
10
2154
Innesto con portagomma
Quick coupling with sleeve for rubber hose Raccord rapide avec attache à tuyaux souples
Corpo / Body I Corps: OT 58
