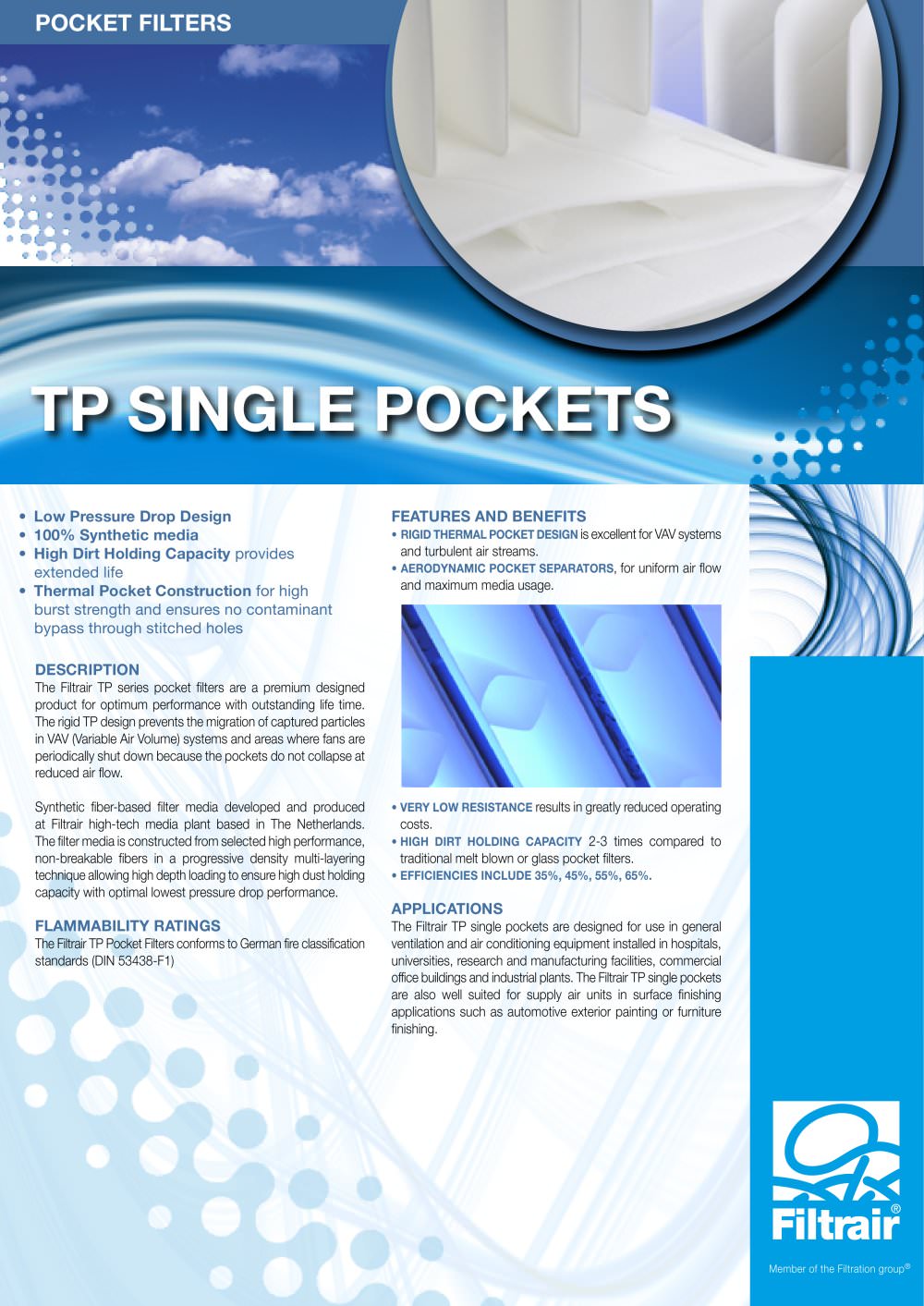

TP Single Pocket - Filtrair B.V. - #1

Low Pressure Drop Design 100% Synthetic media • High Dirt Holding Capacity provides extended life

Thermal Pocket Construction for high burst strength and ensures no contaminant bypass through stitched holes

The Filtrair TP series pocket filters are a premium designed

product for optimum performance with outstanding life time.

The rigid TP design prevents the migration of captured particles in VAV (Variable Air Volume) systems and areas where fans are periodically shut down because the pockets do not collapse at

reduced air flow.

Synthetic fiber-based filter media developed and produced at Filtrair high-tech media plant based in The Netherlands.

The filter media is constructed from selected high performance,

non-breakable fibers in a progressive density multi-layering

technique allowing high depth loading to ensure high dust holding capacity with optimal lowest pressure drop performance.

The Filtrair TP Pocket Filters conforms to German fire classification standards (DIN 53438-F1)

• VERY LOW RESISTANCE results in greatly reduced operating

costs.

• HIGH DIRT HOLDING CAPACITY 2-3 times compared to

traditional melt blown or glass pocket filters.

The Filtrair TP single pockets are designed for use in general

ventilation and air conditioning equipment installed in hospitals,

universities, research and manufacturing facilities, commercial

office buildings and industrial plants. The Filtrair TP single pockets

are also well suited for supply air units in surface finishing applications such as automotive exterior painting or furniture finishing.
