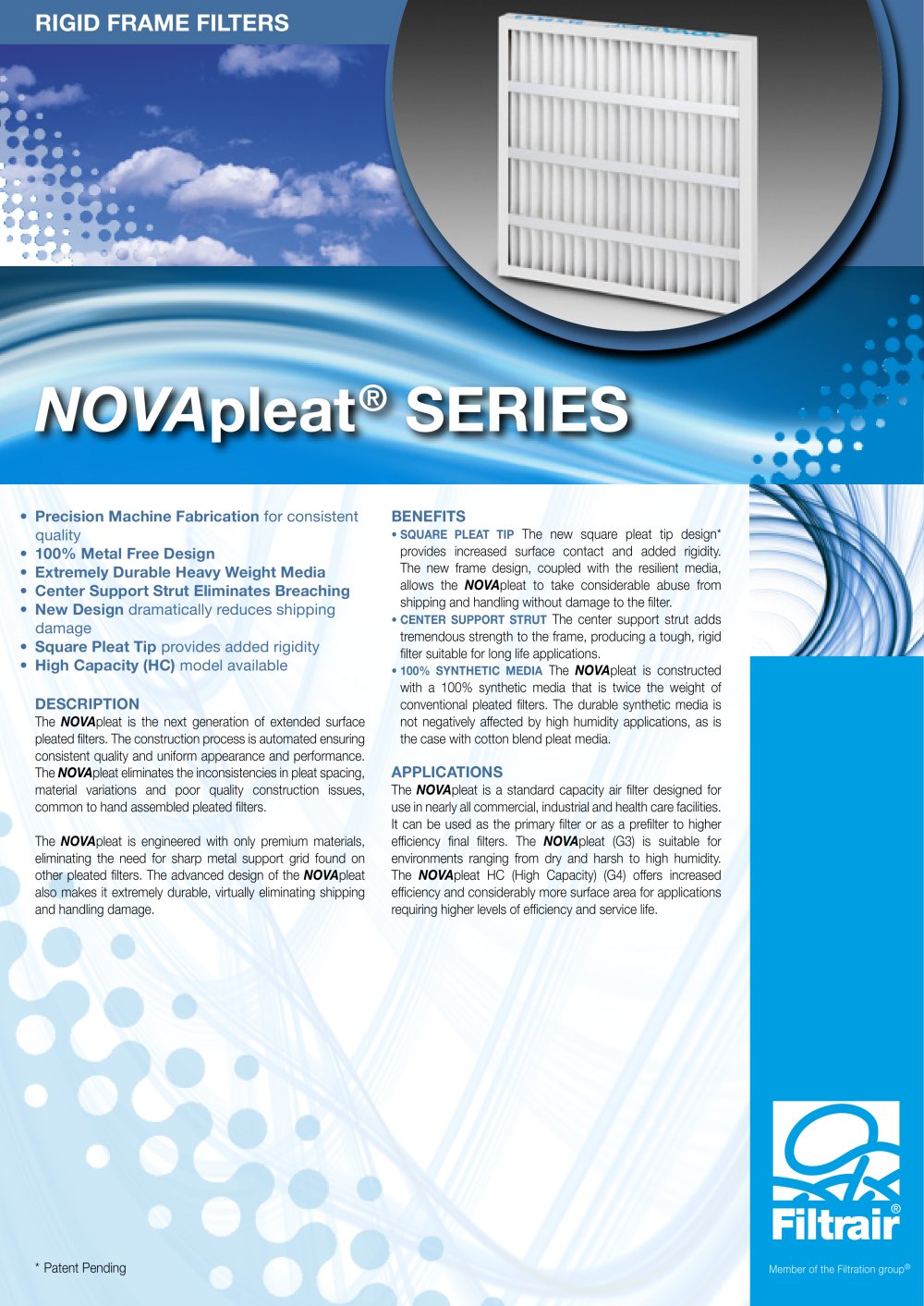

NOVApleat Series Filters - Filtrair B.V. - #1

RIGID FRAME FILTERS

• SQUARE PLEAT TIP The new square pleat tip design*

provides increased surface contact and added rigidity. The new frame design, coupled with the resilient media, allows the NOVApleat to take considerable abuse from shipping and handling without damage to the filter.

• CENTER SUPPORT STRUT The center support strut adds

tremendous strength to the frame, producing a tough, rigid filter suitable for long life applications.

• 100% SYNTHETIC MEDIA The NOVApleat is constructed with a 100% synthetic media that is twice the weight of

conventional pleated filters. The durable synthetic media is not negatively affected by high humidity applications, as is the case with cotton blend pleat media.

The NOVApleat is a standard capacity air filter designed for

use in nearly all commercial, industrial and health care facilities.

It can be used as the primary filter or as a prefilter to higher

efficiency final filters. The NOVApleat (G3)is suitable for

environments ranging from dry and harsh to high humidity.

The NOVApleat HC (High Capacity) (G4) offersincreased efficiency and considerably more surface area for applications requiring higher levels of efficiency and service life.

Precision Machine Fabrication for consistent quality

• 100% Metal Free Design Extremely Durable Heavy Weight Media Center Support Strut Eliminates Breaching New Design dramatically reduces shipping damage

Square Pleat Tip provides added rigidity High Capacity (HC) model available

The NOVApleat is the next generation of extended surface pleated filters. The construction process is automated ensuring

consistent quality and uniform appearance and performance.

The NOVApleat eliminates the inconsistencies in pleat spacing,

material variations and poor quality construction issues, common to hand assembled pleated filters.

The NOVApleat is engineered with only premium materials, eliminating the need for sharp metal support grid found on other pleated filters. The advanced design of the NOVApleat also makes it extremely durable, virtually eliminating shipping and handling damage.
