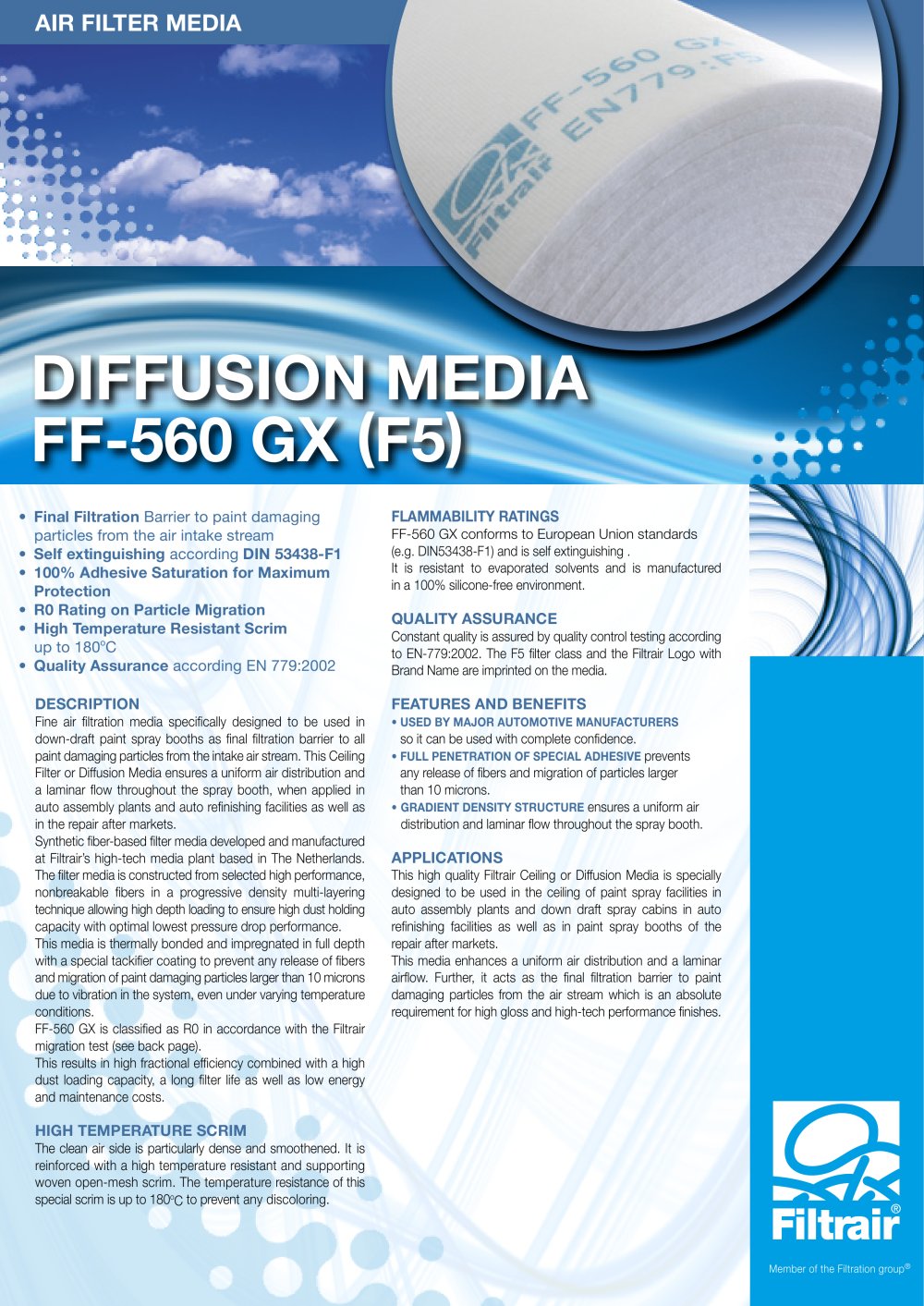

Literature - FF560 GX - Filtrair B.V. - #1

FF-560 GX conforms to European Union standards (e.g. DIN53438-F1) and is self extinguishing .

It is resistant to evaporated solvents and is manufactured

in a 100% silicone-free environment. QUALITY ASSURANCE

Constant quality is assured by quality control testing according to EN-779:2002. The F5 filter class and the Filtrair Logo with Brand Name are imprinted on the media.

so it can be used with complete confidence.

• FULL PENETRATION OF SPECIAL ADHESIVE prevents any release of fibers and migration of particles larger than 10 microns.

• GRADIENT DENSITY STRUCTURE ensures a uniform air distribution and laminar flow throughout the spray booth.

This high quality Filtrair Ceiling or Diffusion Media is specially designed to be used in the ceiling of paint spray facilities in auto assembly plants and down draft spray cabins in auto refinishing facilities as well as in paint spray booths of the repair after markets.

This media enhances a uniform air distribution and a laminar airflow. Further, it acts as the final filtration barrier to paint damaging particles from the air stream which is an absolute requirement for high gloss and high-tech performance finishes.

• Final Filtration Barrier to paint damaging particles from the air intake stream

• Self extinguishing according DIN 53438-F1

• High Temperature Resistant Scrim upto 180°C

• Quality Assurance according EN 779:2002

Fine air filtration media specifically designed to be used in down-draft paint spray booths as final filtration barrier to all paint damaging particles from the intake air stream. This Ceiling Filter or Diffusion Media ensures a uniform air distribution and a laminar flow throughout the spray booth, when applied in auto assembly plants and auto refinishing facilities as well as

in the repair after markets.

Synthetic fiber-based filter media developed and manufactured at Filtrair's high-tech media plant based in The Netherlands. The filter media is constructed from selected high performance, nonbreakable fibers in a progressive density multi-layering technique allowing high depth loading to ensure high dust holding

capacity with optimal lowest pressure drop performance. This media is thermally bonded and impregnated in full depth

with a special tackifier coating to prevent any release of fibers and migration of paint damaging particles larger than 10 microns

due to vibration in the system, even under varying temperature conditions.

FF-560 GX is classified as R0 in accordance with the Filtrair migration test (see back page).

This results in high fractional efficiency combined with a high dust loading capacity, a long filter life as well as low energy

and maintenance costs.

The clean air side is particularly dense and smoothened. It is

reinforced with a high temperature resistant and supporting

woven open-mesh scrim. The temperature resistance of this special scrim is up to 180^oC to prevent any discoloring.
