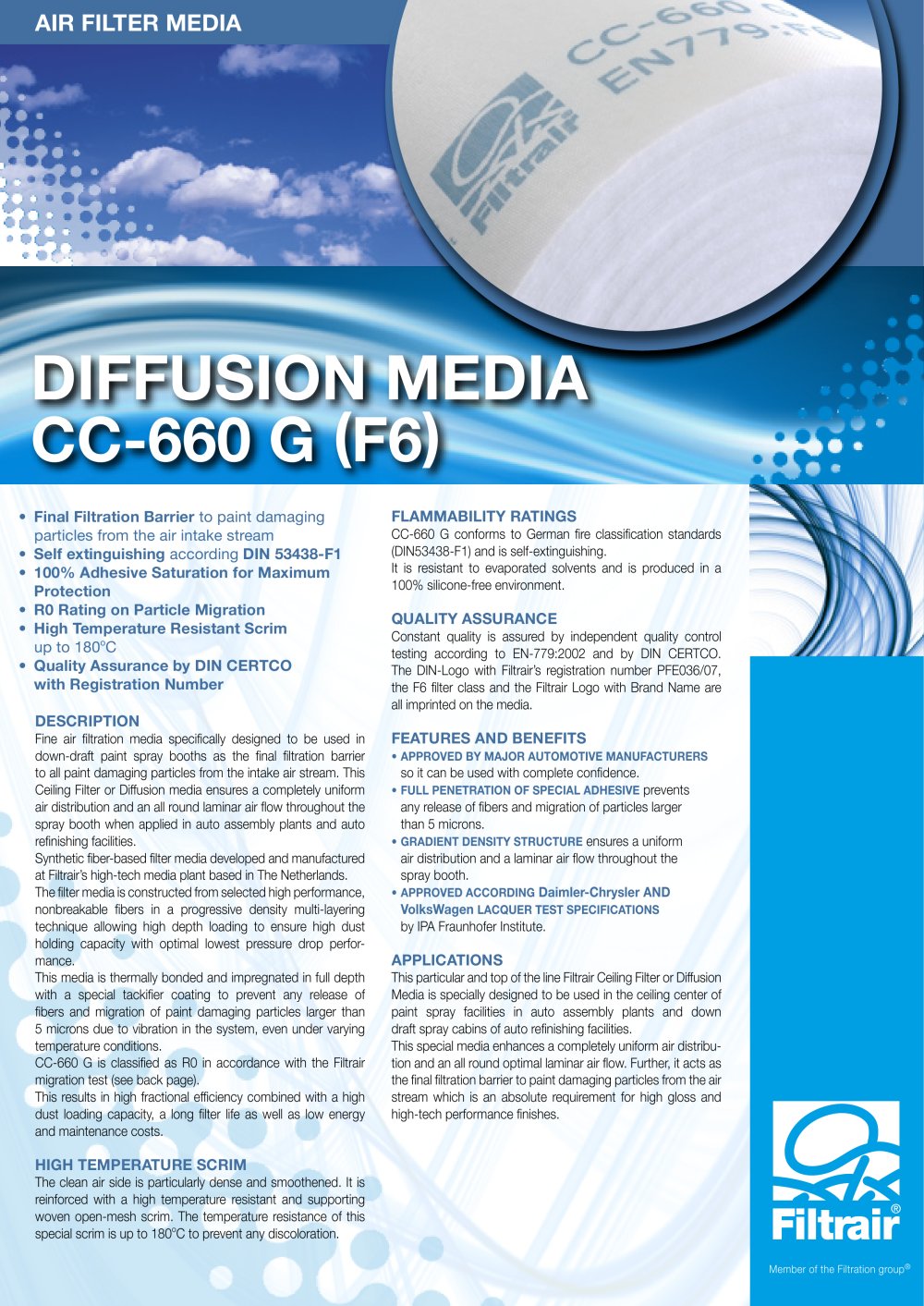

Literature - CC660 G - Filtrair B.V. - #1

CC-660 G conforms to German fire classification standards

(DIN53438-F1) and is self-extinguishing.

It is resistant to evaporated solvents and is produced in a

100% silicone-free environment.

Constant quality is assured by independent quality control

testing according to EN-779:2002 and by DIN CERTCO. The DIN-Logo with Filtrair's registration number PFE036/07, the F6 filter class and the Filtrair Logo with Brand Name are

all imprinted on the media. FEATURES AND BENEFITS

so it can be used with complete confidence.

• FULL PENETRATION OF SPECIAL ADHESIVE prevents any release of fibers and migration of particles larger than 5 microns.

• GRADIENT DENSITY STRUCTURE ensures a uniform air distribution and a laminar air flow throughout the

spray booth.

by IPA Fraunhofer Institute.

This particular and top of the line Filtrair Ceiling Filter or Diffusion Media is specially designed to be used in the ceiling center of

paint spray facilities in auto assembly plants and down

draft spray cabins of auto refinishing facilities. This special media enhances a completely uniform air distribu­tion and an all round optimal laminar air flow. Further, it acts as the final filtration barrier to paint damaging particles from the air

stream which is an absolute requirement for high gloss and high-tech performance finishes.

Final Filtration Barrier to paint damaging particles from the air intake stream Self extinguishing according DIN 53438-F1 • 100% Adhesive Saturation for Maximum Protection

upto 180°C

Fine air filtration media specifically designed to be used in down-draft paint spray booths as the final filtration barrier to all paint damaging particles from the intake air stream. This Ceiling Filter or Diffusion media ensures a completely uniform

air distribution and an all round laminar air flow throughout the spray booth when applied in auto assembly plants and auto refinishing facilities.

Synthetic fiber-based filter media developed and manufactured at Filtrair's high-tech media plant based in The Netherlands. The filter media is constructed from selected high performance,

nonbreakable fibers in a progressive density multi-layering

technique allowing high depth loading to ensure high dust

holding capacity with optimal lowest pressure drop perfor­mance.

This media is thermally bonded and impregnated in full depth with a special tackifier coating to prevent any release of fibers and migration of paint damaging particles larger than

5 microns due to vibration in the system, even under varying

temperature conditions.

CC-660 G is classified as R0 in accordance with the Filtrair migration test (see back page).

This results in high fractional efficiency combined with a high dust loading capacity, a long filter life as well as low energy and maintenance costs.

The clean air side is particularly dense and smoothened. It is

reinforced with a high temperature resistant and supporting woven open-mesh scrim. The temperature resistance of this

special scrim is up to 180^oC to prevent any discoloration.
