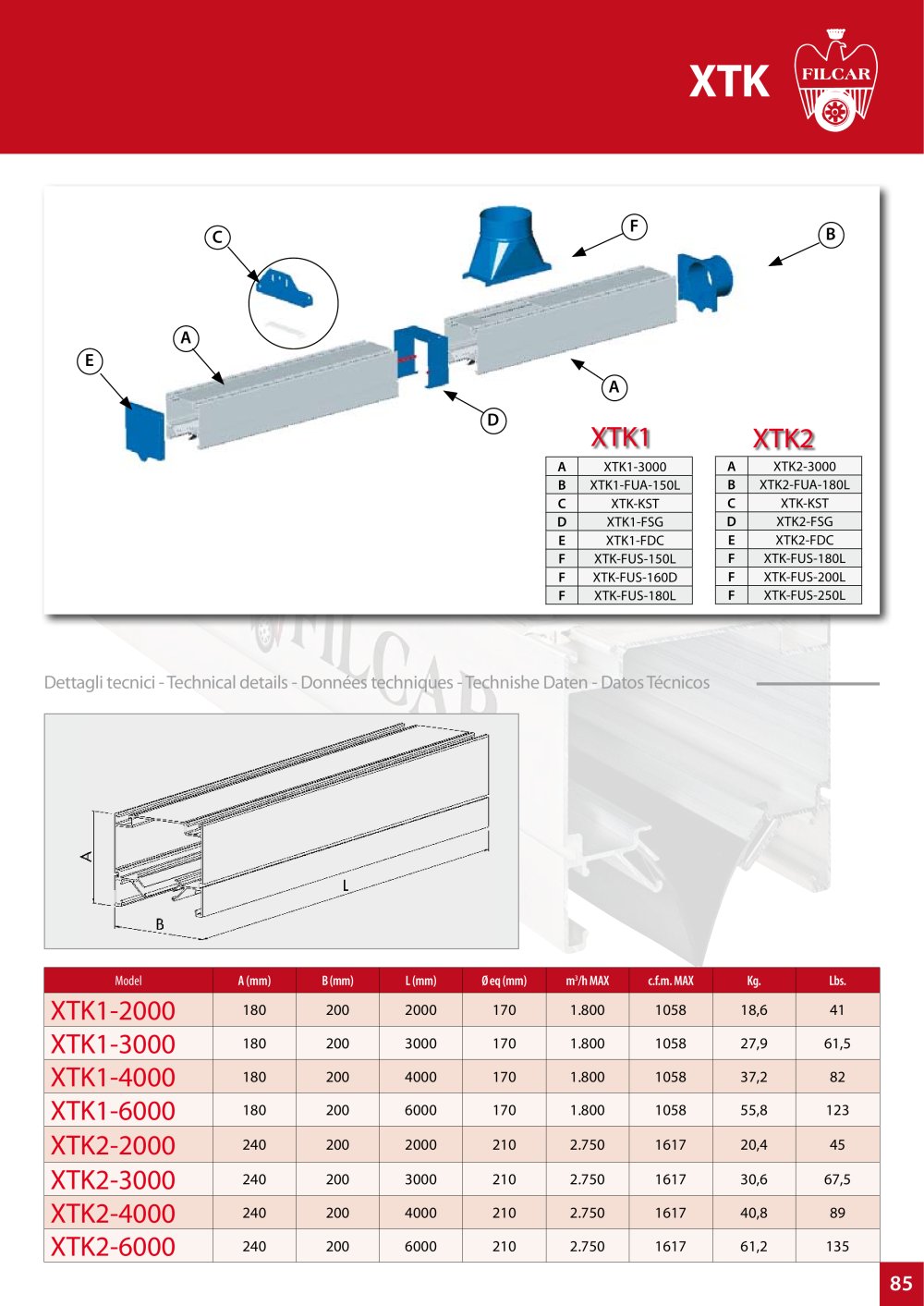

85 A E C F B A A XTK1-3000 B XTK1-FUA-150L C XTK-KST D XTK1-FSG E XTK1-FDC F XTK-FUS-150L F XTK-FUS-160D F XTK-FUS-180L A XTK2-3000 B XTK2-FUA-180L C XTK-KST D XTK2-FSG E XTK2-FDC F XTK-FUS-180L F XTK-FUS-200L F XTK-FUS-250L Model A (mm) B (mm) L (mm) Ø eq (mm) m3/h MAX c.f.m. MAX Kg. Lbs. XTK1-2000 180 200 2000 170 1.800 1058 18,6 41 XTK1-3000 180 200 3000 170 1.800 1058 27,9 61,5 XTK1-4000 180 200 4000 170 1.800 1058 37,2 82 XTK1-6000 180 200 6000 170 1.800 1058 55,8 123 XTK2-2000 240 200 2000 210 2.750 1617 20,4 45 XTK2-3000 240 200 3000 210 2.750 1617 30,6 67,5 XTK2-4000 240 200 4000 210 2.750 1617 40,8 89 XTK2-6000 240 200 6000 210 2.750 1617 61,2 135 XTK1 XTK2 XTK D Dettagli tecnici - Technical details - Données techniques - Technishe Daten - Datos Técnicos
