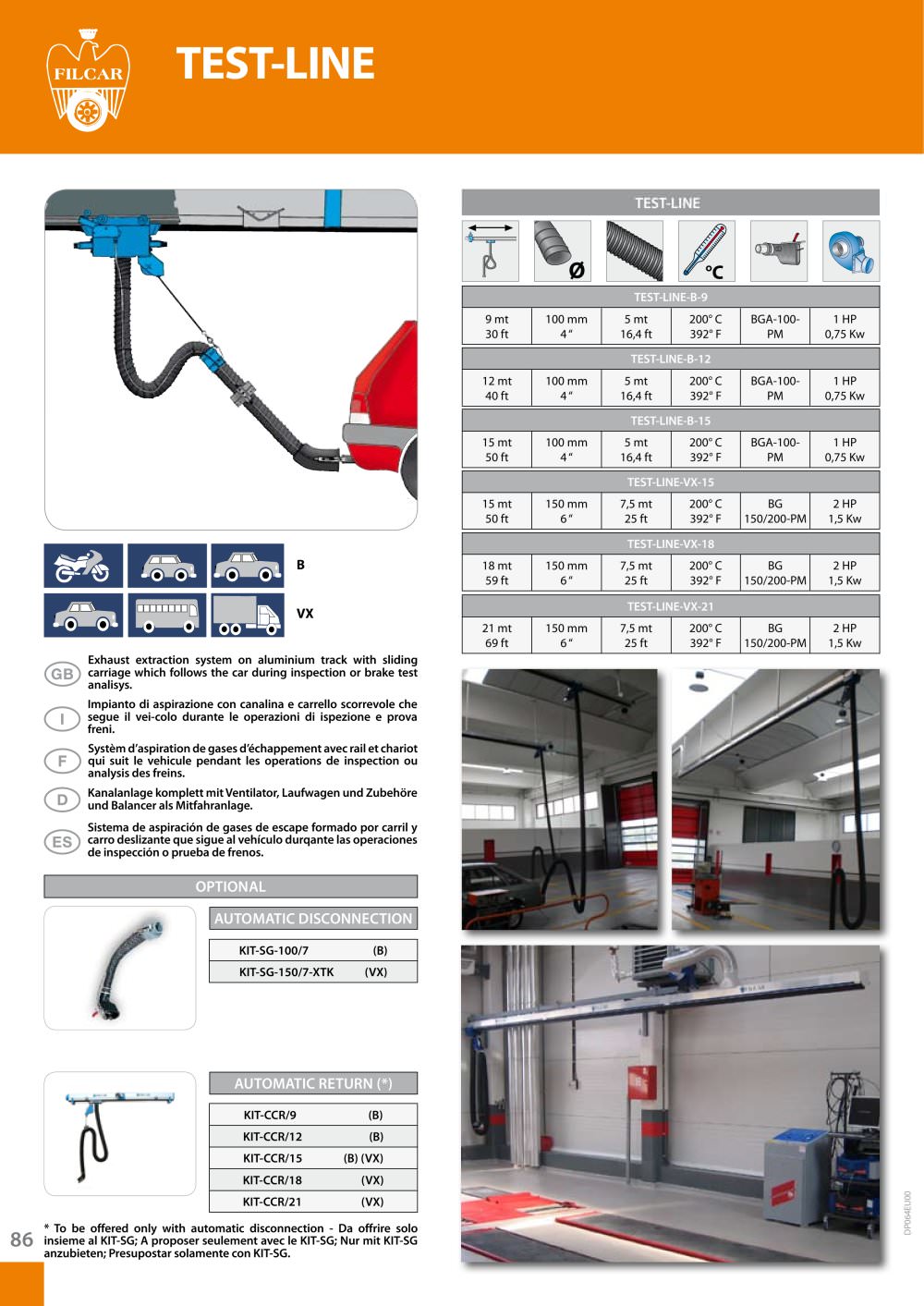

86 TEST-LINE-B-9 9 mt 30 ft 100 mm 4 “ 5 mt 16,4 ft 200° C 392° F BGA-100- PM 1 HP 0,75 Kw °C TEST-LINE Impianto di aspirazione con canalina e carrello scorrevole che segue il vei-colo durante le operazioni di ispezione e prova freni. Exhaust extraction system on aluminium track with sliding carriage which follows the car during inspection or brake test analisys. Systèm d’aspiration de gases d’échappement avec rail et chariot qui suit le vehicule pendant les operations de inspection ou analysis des freins. Kanalanlage komplett mit Ventilator, Laufwagen und Zubehöre und Balancer als Mitfahranlage. Sistema de aspiración de gases de escape formado por carril y carro deslizante que sigue al vehículo durqante las operaciones de inspección o prueba de frenos. Ø TEST-LINE-B-12 12 mt 40 ft 100 mm 4 “ 5 mt 16,4 ft 200° C 392° F BGA-100- PM 1 HP 0,75 Kw TEST-LINE-B-15 15 mt 50 ft 100 mm 4 “ 5 mt 16,4 ft 200° C 392° F BGA-100- PM 1 HP 0,75 Kw TEST-LINE-VX-15 15 mt 50 ft 150 mm 6 “ 7,5 mt 25 ft 200° C 392° F BG 150/200-PM 2 HP 1,5 Kw TEST-LINE-VX-18 18 mt 59 ft 150 mm 6 “ 7,5 mt 25 ft 200° C 392° F BG 150/200-PM 2 HP 1,5 Kw TEST-LINE-VX-21 21 mt 69 ft 150 mm 6 “ 7,5 mt 25 ft 200° C 392° F BG 150/200-PM 2 HP 1,5 Kw VX B TEST-LINE OPTIONAL KIT-SG-100/7 (B) KIT-SG-150/7-XTK (VX) KIT-CCR/9 (B) KIT-CCR/12 (B) KIT-CCR/15 (B) (VX) KIT-CCR/18 (VX) KIT-CCR/21 (VX) AUTOMATIC DISCONNECTION AUTOMATIC RETURN (*) * To be offered only with automatic disconnection - Da offrire solo insieme al KIT-SG; A proposer seulement avec le KIT-SG; Nur mit KIT-SG anzubieten; Presupostar solamente con KIT-SG. DP064EU00
