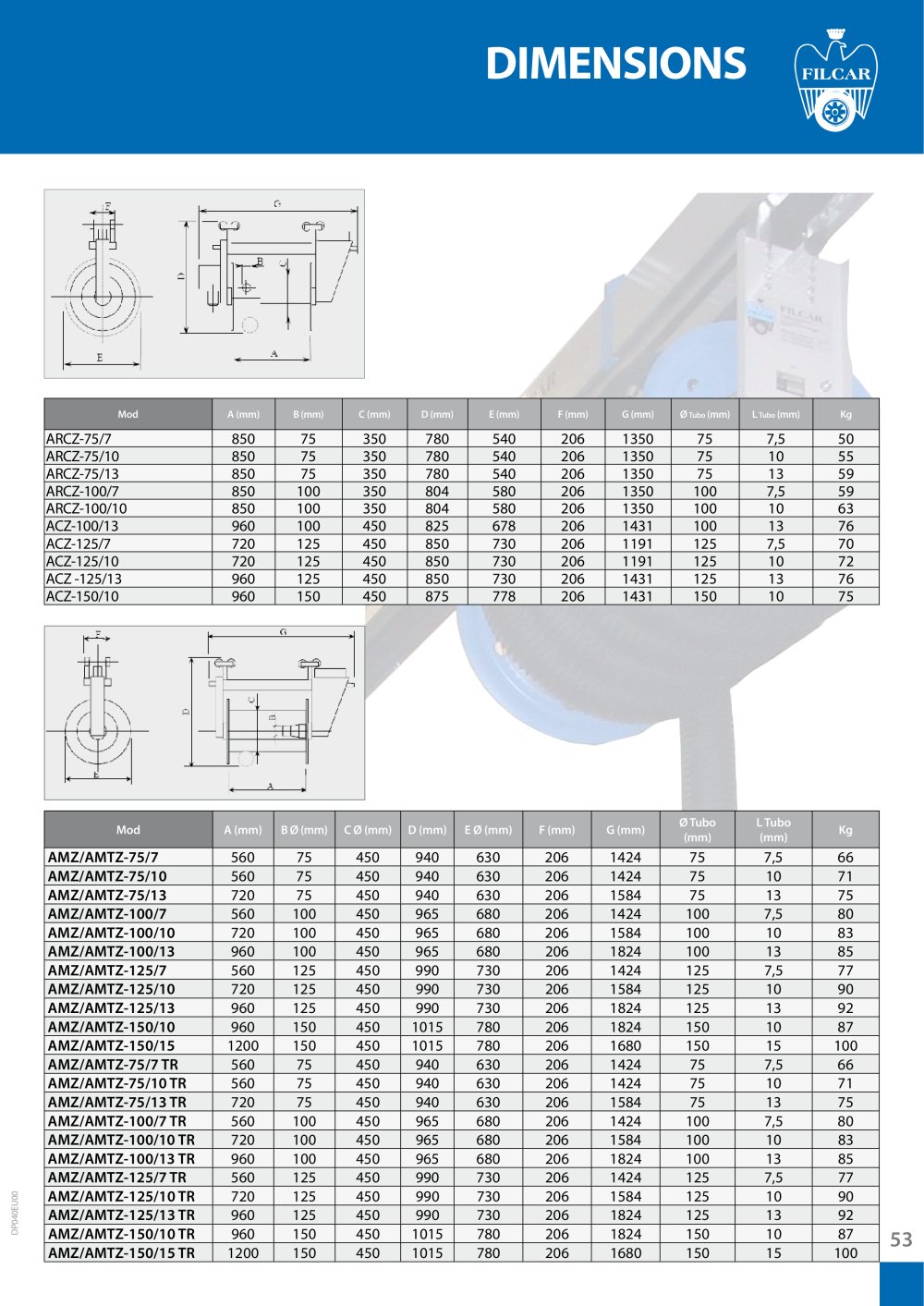

53 DIMENSIONS Mod A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Ø Tubo (mm) L Tubo (mm) Kg ARCZ-75/7 850 75 350 780 540 206 1350 75 7,5 50 ARCZ-75/10 850 75 350 780 540 206 1350 75 10 55 ARCZ-75/13 850 75 350 780 540 206 1350 75 13 59 ARCZ-100/7 850 100 350 804 580 206 1350 100 7,5 59 ARCZ-100/10 850 100 350 804 580 206 1350 100 10 63 ACZ-100/13 960 100 450 825 678 206 1431 100 13 76 ACZ-125/7 720 125 450 850 730 206 1191 125 7,5 70 ACZ-125/10 720 125 450 850 730 206 1191 125 10 72 ACZ -125/13 960 125 450 850 730 206 1431 125 13 76 ACZ-150/10 960 150 450 875 778 206 1431 150 10 75 Mod A (mm) B Ø (mm) C Ø (mm) D (mm) E Ø (mm) F (mm) G (mm) Ø Tubo (mm) L Tubo (mm) Kg AMZ/AMTZ-75/7 560 75 450 940 630 206 1424 75 7,5 66 AMZ/AMTZ-75/10 560 75 450 940 630 206 1424 75 10 71 AMZ/AMTZ-75/13 720 75 450 940 630 206 1584 75 13 75 AMZ/AMTZ-100/7 560 100 450 965 680 206 1424 100 7,5 80 AMZ/AMTZ-100/10 720 100 450 965 680 206 1584 100 10 83 AMZ/AMTZ-100/13 960 100 450 965 680 206 1824 100 13 85 AMZ/AMTZ-125/7 560 125 450 990 730 206 1424 125 7,5 77 AMZ/AMTZ-125/10 720 125 450 990 730 206 1584 125 10 90 AMZ/AMTZ-125/13 960 125 450 990 730 206 1824 125 13 92 AMZ/AMTZ-150/10 960 150 450 1015 780 206 1824 150 10 87 AMZ/AMTZ-150/15 1200 150 450 1015 780 206 1680 150 15 100 AMZ/AMTZ-75/7 TR 560 75 450 940 630 206 1424 75 7,5 66 AMZ/AMTZ-75/10 TR 560 75 450 940 630 206 1424 75 10 71 AMZ/AMTZ-75/13 TR 720 75 450 940 630 206 1584 75 13 75 AMZ/AMTZ-100/7 TR 560 100 450 965 680 206 1424 100 7,5 80 AMZ/AMTZ-100/10 TR 720 100 450 965 680 206 1584 100 10 83 AMZ/AMTZ-100/13 TR 960 100 450 965 680 206 1824 100 13 85 AMZ/AMTZ-125/7 TR 560 125 450 990 730 206 1424 125 7,5 77 AMZ/AMTZ-125/10 TR 720 125 450 990 730 206 1584 125 10 90 AMZ/AMTZ-125/13 TR 960 125 450 990 730 206 1824 125 13 92 AMZ/AMTZ-150/10 TR 960 150 450 1015 780 206 1824 150 10 87 AMZ/AMTZ-150/15 TR 1200 150 450 1015 780 206 1680 150 15 100 DP040EU00
