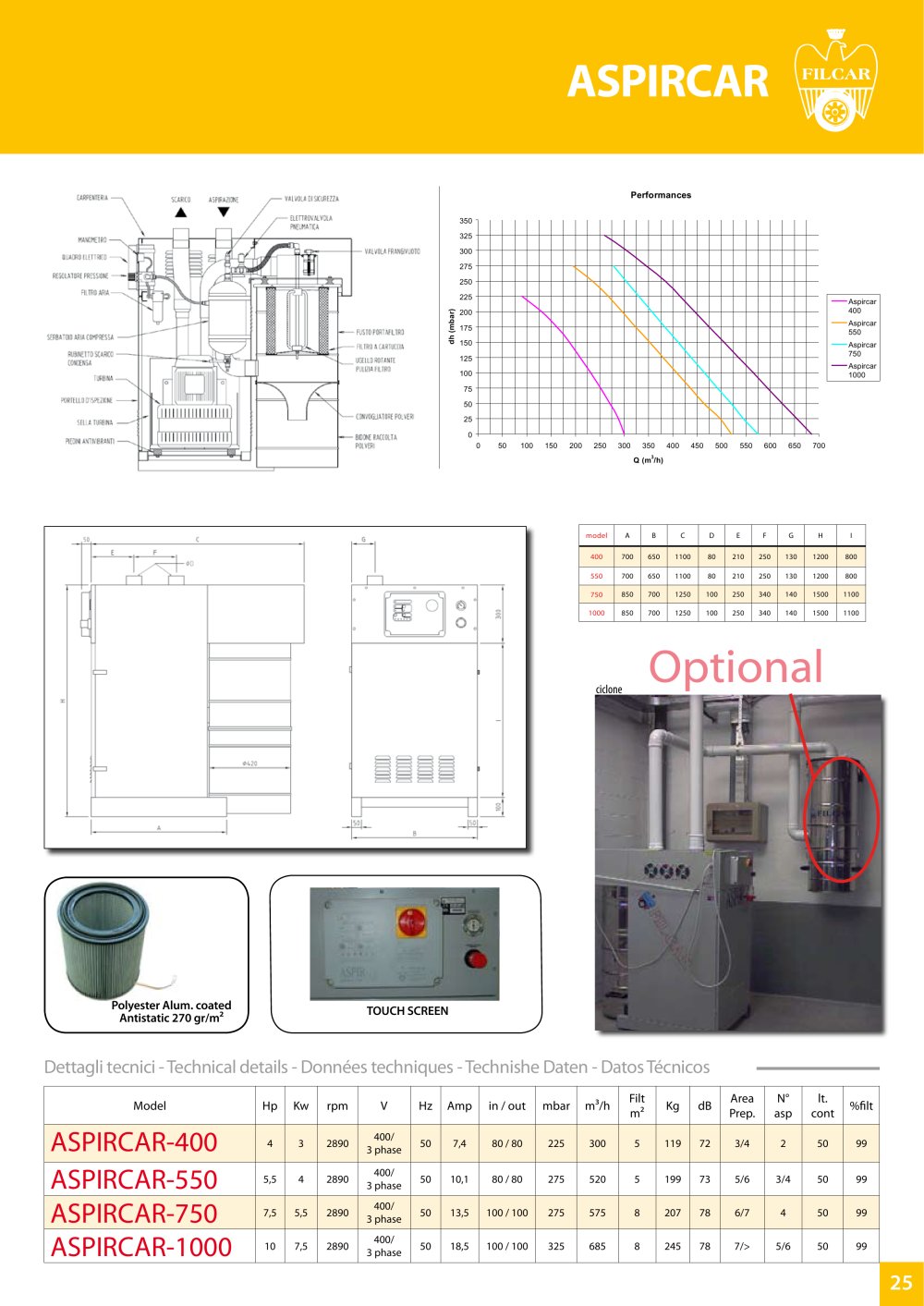

25 Performances 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 0 50 100 150 200 250 300 350 400 450 500 550 600 650 700 Q (m3/h) dh (mbar) Aspircar 400 Aspircar 550 Aspircar 750 Aspircar 1000 Model Hp Kw rpm V Hz Amp in / out mbar m³/h Filt m² Kg dB Area Prep. N° asp lt. cont %filt ASPIRCAR-400 4 3 2890 400/ 3 phase 50 7,4 80 / 80 225 300 5 119 72 3/4 2 50 99 ASPIRCAR-550 5,5 4 2890 400/ 3 phase 50 10,1 80 / 80 275 520 5 199 73 5/6 3/4 50 99 ASPIRCAR-750 7,5 5,5 2890 400/ 3 phase 50 13,5 100 / 100 275 575 8 207 78 6/7 4 50 99 ASPIRCAR-1000 10 7,5 2890 400/ 3 phase 50 18,5 100 / 100 325 685 8 245 78 7/> 5/6 50 99 Optional Polyester Alum. coated Antistatic 270 gr/m² TOUCH SCREEN model A B C D E F G H I 400 700 650 1100 80 210 250 130 1200 800 550 700 650 1100 80 210 250 130 1200 800 750 850 700 1250 100 250 340 140 1500 1100 1000 850 700 1250 100 250 340 140 1500 1100 ciclone ASPIRCAR Dettagli tecnici - Technical details - Données techniques - Technishe Daten - Datos Técnicos
