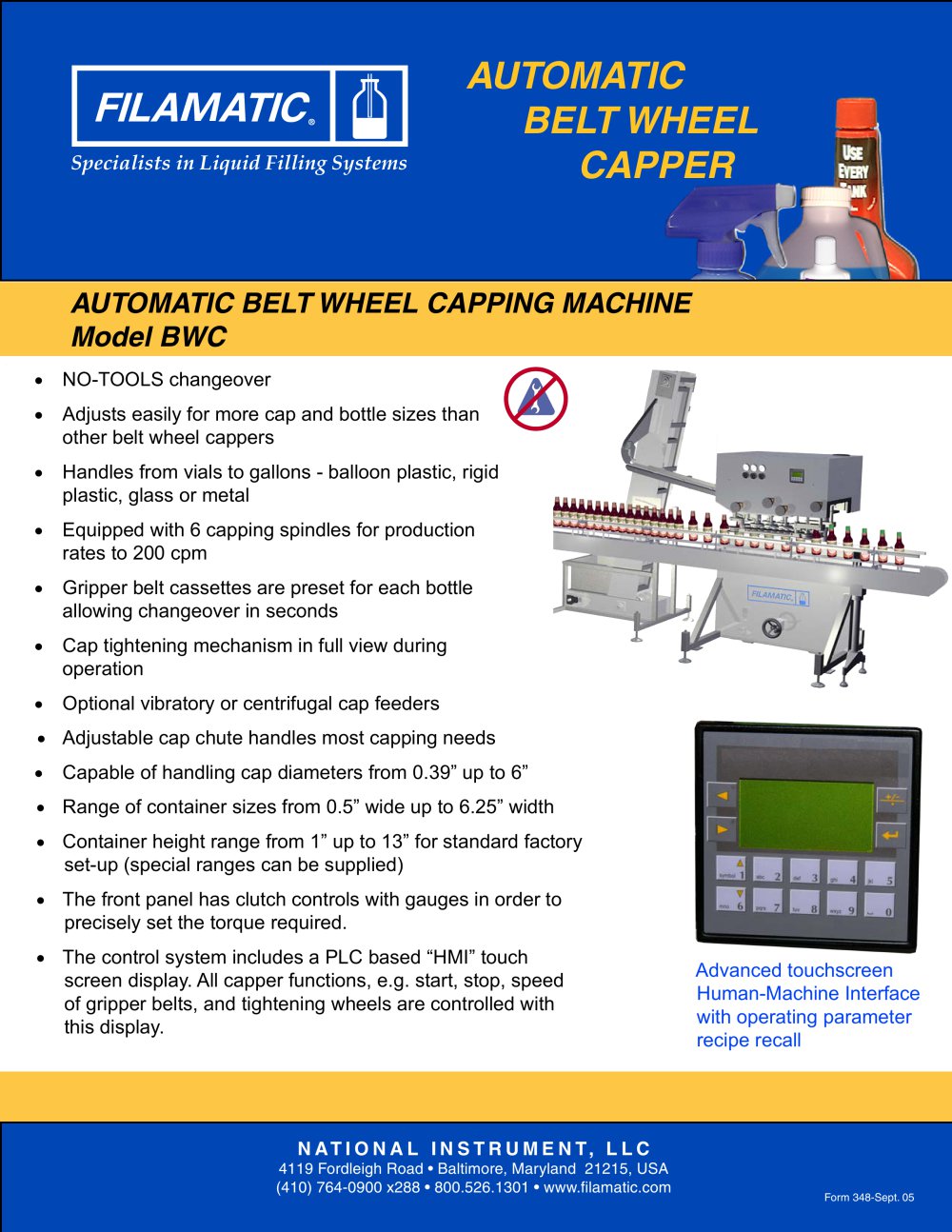

Belt Wheel Capper - Filamatic - #1

NO-TOOLS changeover

Adjusts easily for more cap and bottle sizes than other belt wheel cappers

Handles from vials to gallons - balloon plastic, rig plastic, glass or metal

Equipped with 6 capping spindles for production rates to 200 cpm

Gripper belt cassettes are preset for each bottle allowing changeover in seconds

Cap tighteni operation

mechanism

uring

Optional vibratory or centrifugal cap feeders

Adjustable cap chute handles most capping needs

Capable of handling cap diameters from 0.39" up to 6"

Range of container sizes from 0.5" wide up to 6.25" width

Container height range from 1" up to 13" for standard factory set-up (special ranges can be supplied)

The front panel has clutch controls with gauges in order to precisely set the torque required.

The control system includes a PLC based "HMI" touch screen display. All capper functions, e.g. start, stop, speed of gripper belts, and tightening wheels are controlled with this display.

Advanced touchscreen Human-Machine Interface with operating parameter recipe recall

4119 Fordleigh Road • Baltimore, Maryland 21215, USA (410) 764-0900 x288 • 800.526.1301 • www.filamatic.com
