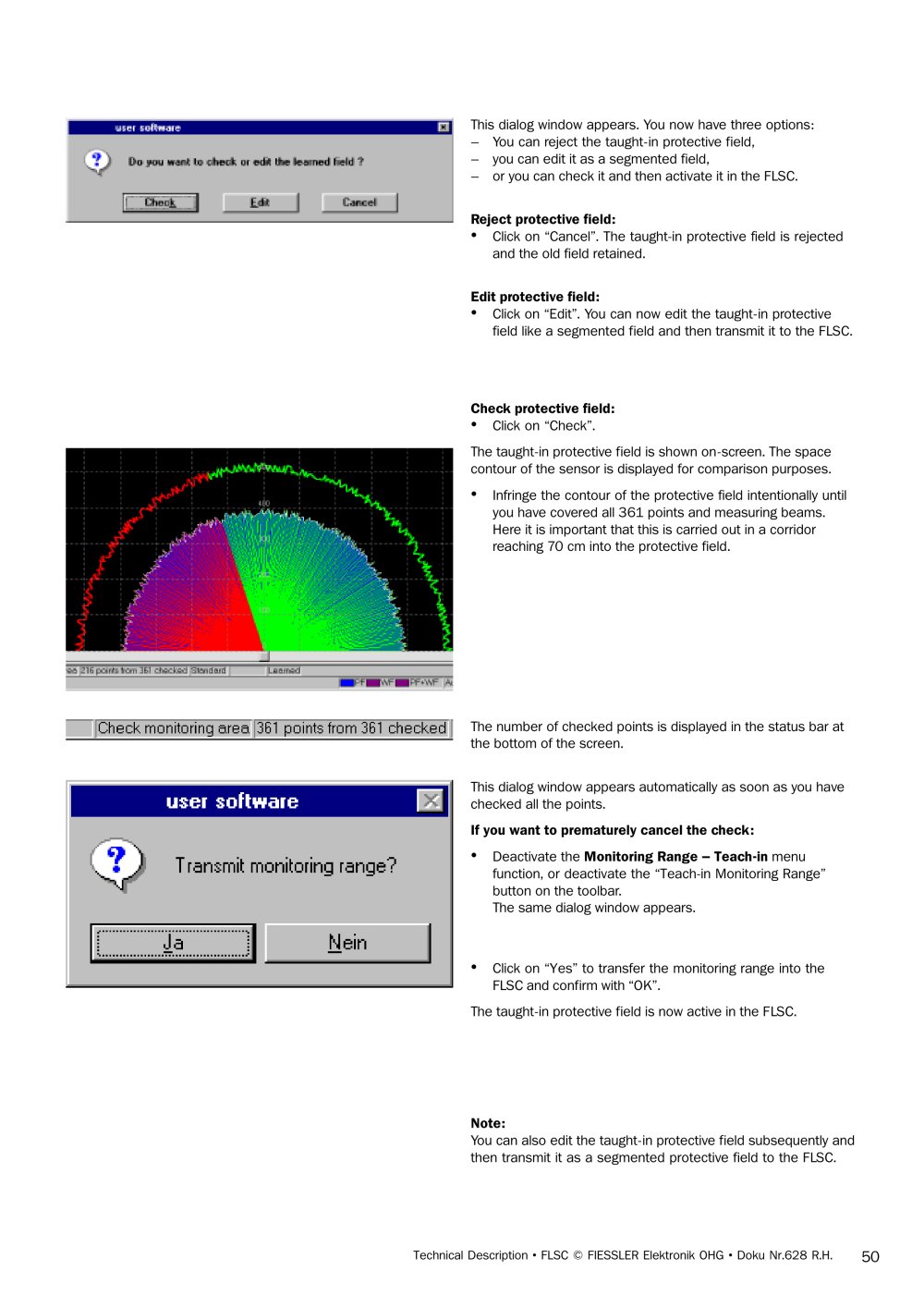

This dialog window appears. You now have three options:–You can reject the taught-in protective field, –you can edit it as a segmented field, –or you can check it and then activate it in the FLSC. Reject protective field:

•

Click on “Cancel”. The taught-in protective field is rejectedand the old field retained. Edit protective field:

•

Click on “Edit”. You can now edit the taught-in protectivefield like a segmented field and then transmit it to the FLSC. Check protective field:

•

Click on “Check”.The taught-in protective field is shown on-screen. The spacecontour of the sensor is displayed for comparison purposes.

•

Infringe the contour of the protective field intentionally untilyou have covered all 361 points and measuring beams.Here it is important that this is carried out in a corridorreaching 70 cm into the protective field. The number of checked points is displayed in the status bar atthe bottom of the screen.This dialog window appears automatically as soon as you havechecked all the points. If you want to prematurely cancel the check:

•

Deactivate the Monitoring Range – Teach-in menufunction, or deactivate the “Teach-in Monitoring Range”button on the toolbar.The same dialog window appears.

•

Click on “Yes” to transfer the monitoring range into theFLSC and confirm with “OK”.The taught-in protective field is now active in the FLSC. Note: You can also edit the taught-in protective field subsequently and then transmit it as a segmented protective field to the FLSC.
