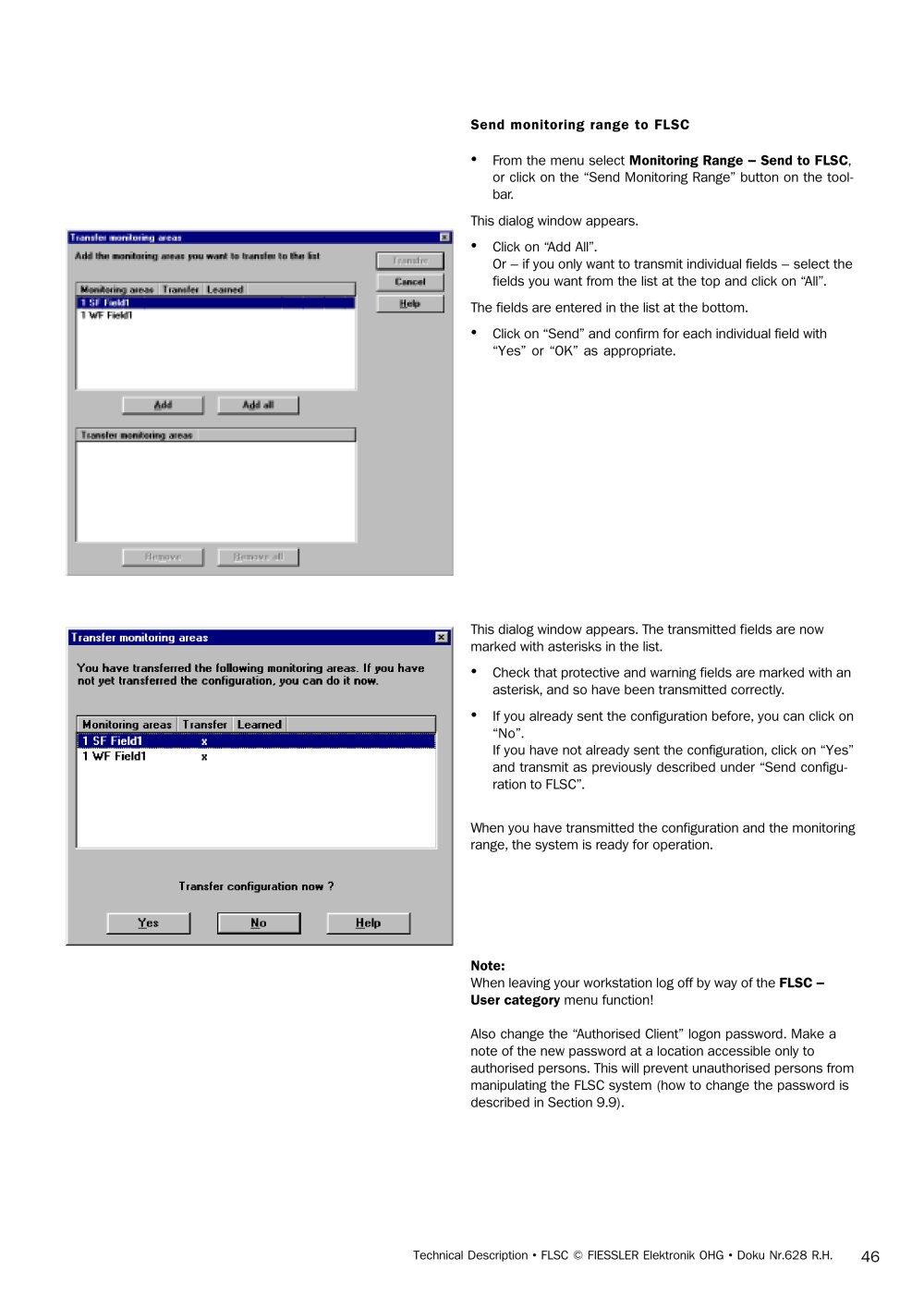

Send monitoring range to FLSC

•

From the menu select Monitoring Range – Send to FLSC ,or click on the “Send Monitoring Range” button on the tool-bar.This dialog window appears.

•

Click on “Add All”.Or – if you only want to transmit individual fields – select thefields you want from the list at the top and click on “All”.The fields are entered in the list at the bottom.

•

Click on “Send” and confirm for each individual field with“Yes” or “OK” as appropriate. This dialog window appears. The transmitted fields are nowmarked with asterisks in the list.

•

Check that protective and warning fields are marked with an asterisk, and so have been transmitted correctly.

•

If you already sent the configuration before, you can click on “No”.If you have not already sent the configuration, click on “Yes”and transmit as previously described under “Send configu-ration to FLSC”.When you have transmitted the configuration and the monitoringrange, the system is ready for operation. Note: When leaving your workstation log off by way of the FLSC –User category menu function!Also change the “Authorised Client” logon password. Make anote of the new password at a location accessible only to authorised persons. This will prevent unauthorised persons from manipulating the FLSC system (how to change the password is described in Section 9.9).
