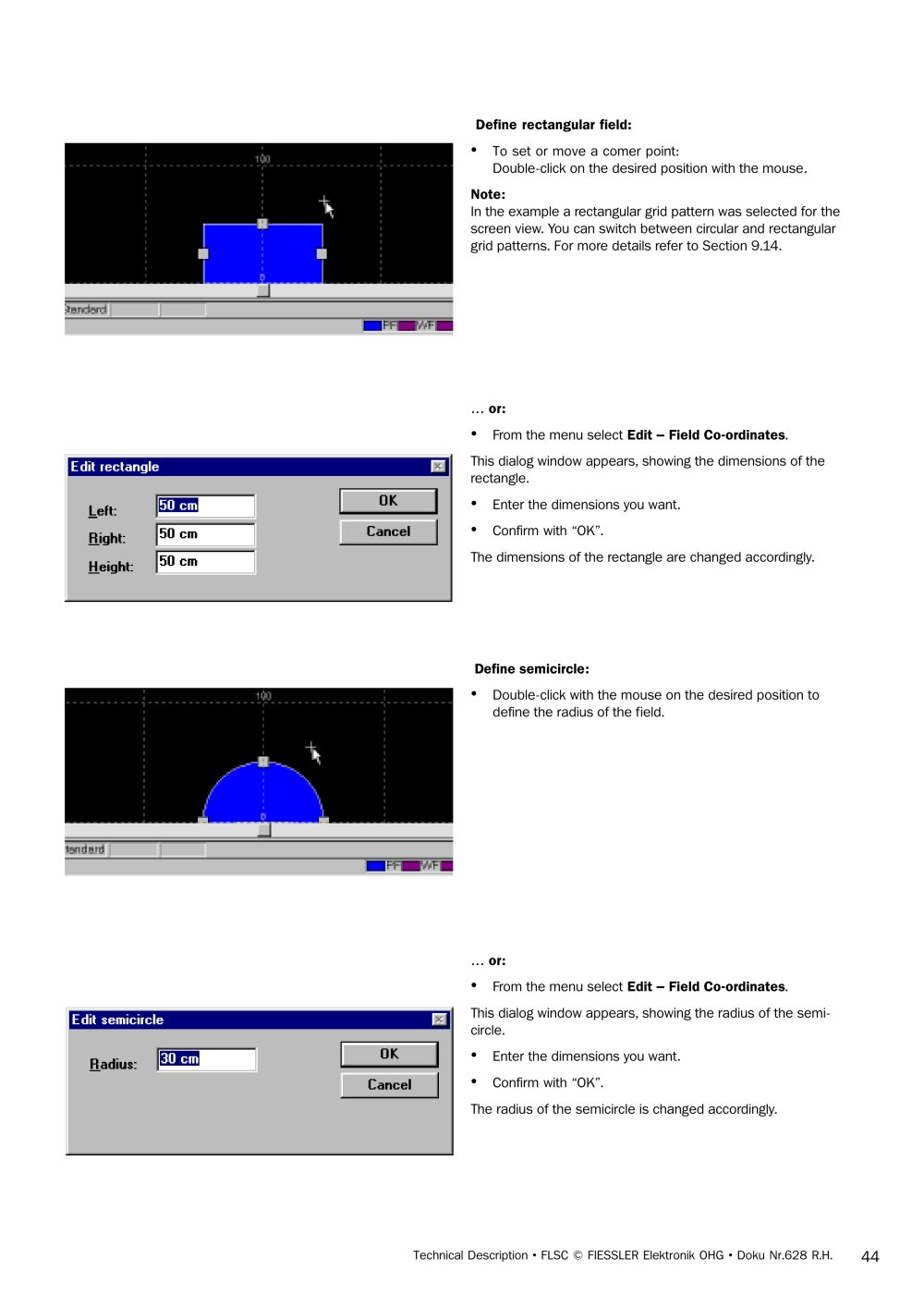

Define rectangular field:

•

To set or move a comer point:Double-click on the desired position with the mouse. Note: In the example a rectangular grid pattern was selected for the screen view. You can switch between circular and rectangular grid patterns. For more details refer to Section 9.14. … or:

•

From the menu select Edit – Field Co-ordinates .This dialog window appears, showing the dimensions of therectangle.

•

Enter the dimensions you want.

•

Confirm with “OK”.The dimensions of the rectangle are changed accordingly. Define semicircle:

•

Double-click with the mouse on the desired position todefine the radius of the field. … or:

•

From the menu select Edit – Field Co-ordinates .This dialog window appears, showing the radius of the semi-circle.

•

Enter the dimensions you want.

•

Confirm with “OK”.The radius of the semicircle is changed accordingly.
