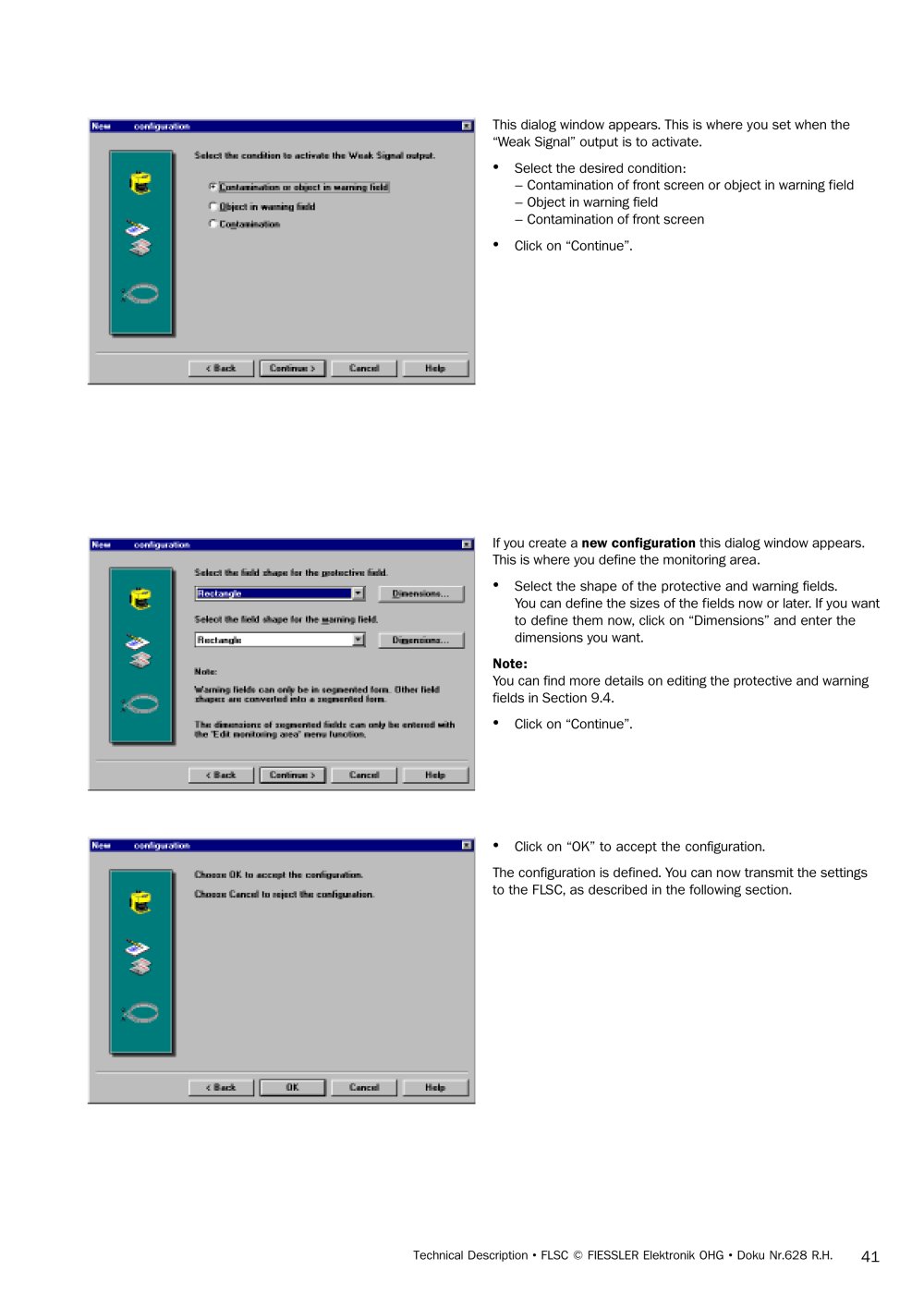

This dialog window appears. This is where you set when the“Weak Signal” output is to activate.

•

Select the desired condition:– Contamination of front screen or object in warning field– Object in warning field– Contamination of front screen

•

Click on “Continue”. If you create a new configuration this dialog window appears.This is where you define the monitoring area.

•

Select the shape of the protective and warning fields.You can define the sizes of the fields now or later. If you wantto define them now, click on “Dimensions” and enter the dimensions you want. Note: You can find more details on editing the protective and warningfields in Section 9.4.

•

Click on “Continue”.

•

Click on “OK” to accept the configuration.The configuration is defined. You can now transmit the settingsto the FLSC, as described in the following section.
