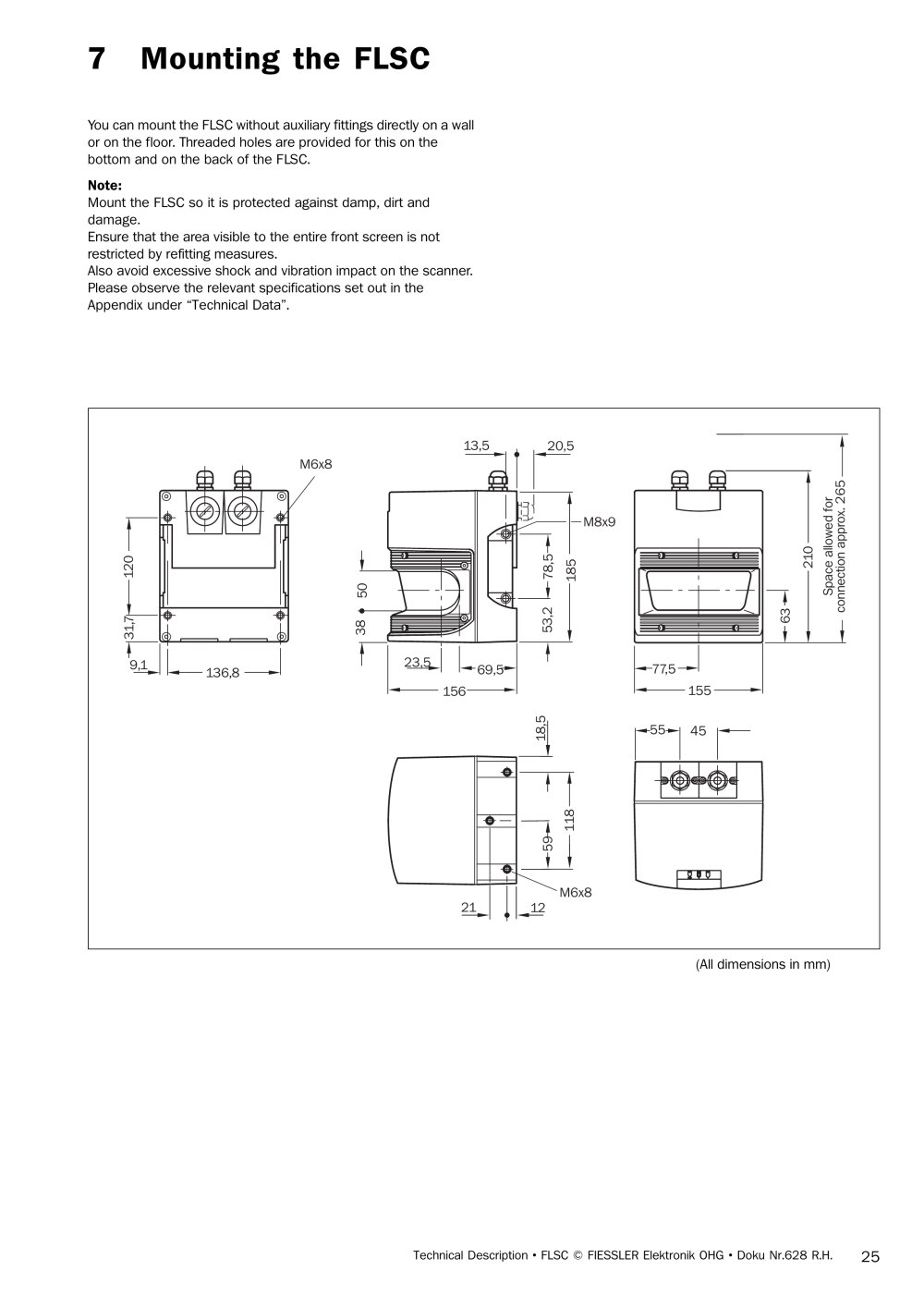

7 Mounting the FLSC
You can mount the FLSC without auxiliary fittings directly on a wall or on the floor. Threaded holes are provided for this on the bottom and on the back of the FLSC.
Note:
Mount the FLSC so it is protected against damp, dirt and damage.
Ensure that the area visible to the entire front screen is not restricted by refitting measures.
Also avoid excessive shock and vibration impact on the scanner. Please observe the relevant specifications set out in the Appendix under "Technical Data".
Technical Description • FLSC © FIESSLER Elektronik OHG • Doku Nr.628 R.H. 25
