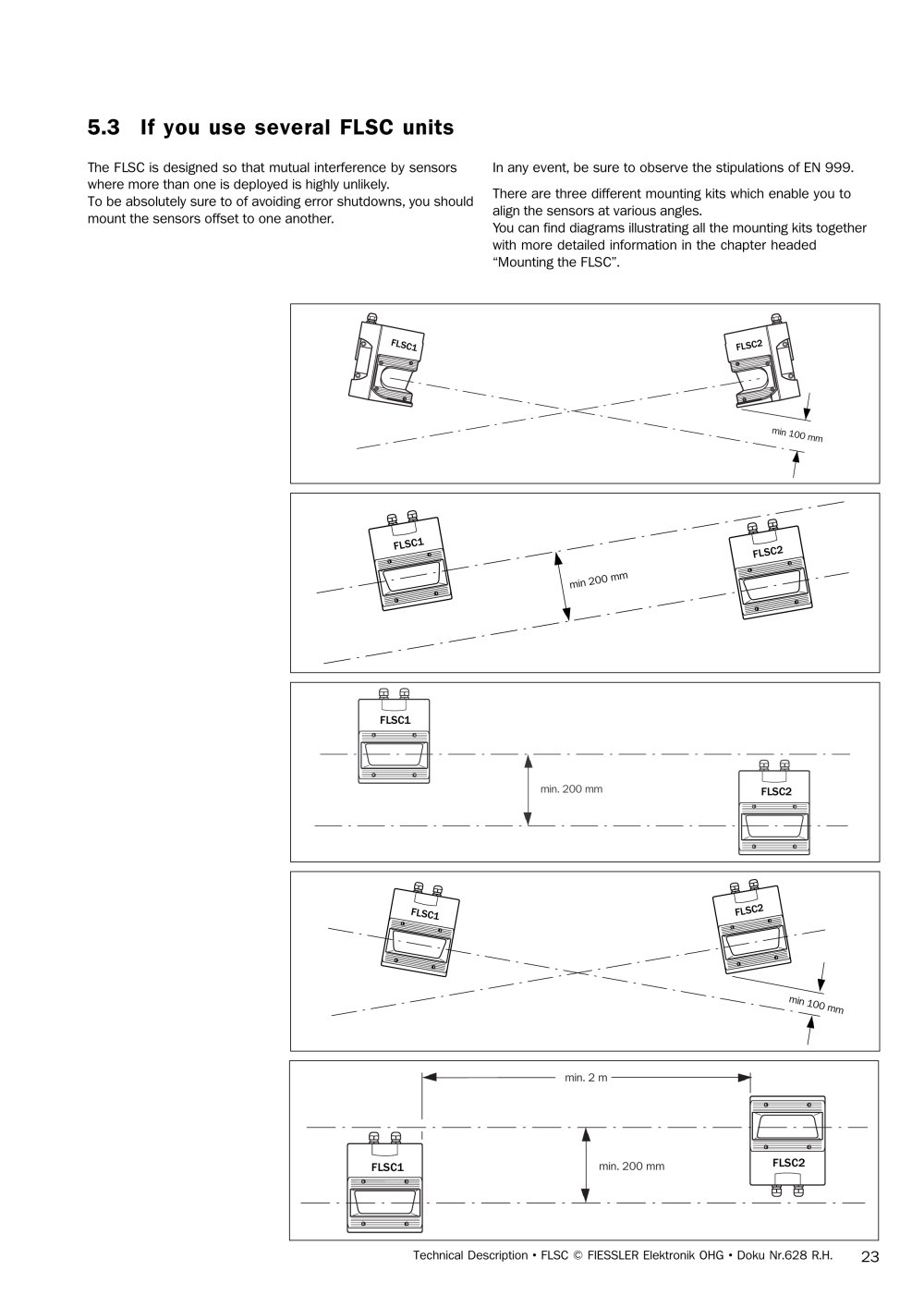

5.3If you use several FLSC units
In any event, be sure to observe the stipulations of EN 999.There are three different mounting kits which enable you toalign the sensors at various angles.You can find diagrams illustrating all the mounting kits together
with more detailed information in the chapter headed
“Mounting the FLSC”.The FLSC is designed so that mutual interference by sensorswhere more than one is deployed is highly unlikely.To be absolutely sure to of avoiding error shutdowns, you should
mount the sensors offset to one another.
FLSC1 FLSC2 min 100 mm FLSC1FLSC2 min 200 mm FLSC1FLSC2 min. 200 mm FLSC1 FLSC2 min 100 mm min. 2 m FLSC1FLSC2 min. 200 mm
Technical Description • FLSC © FIESSLER Elektronik OHG • Doku Nr.628 R.H.
23
