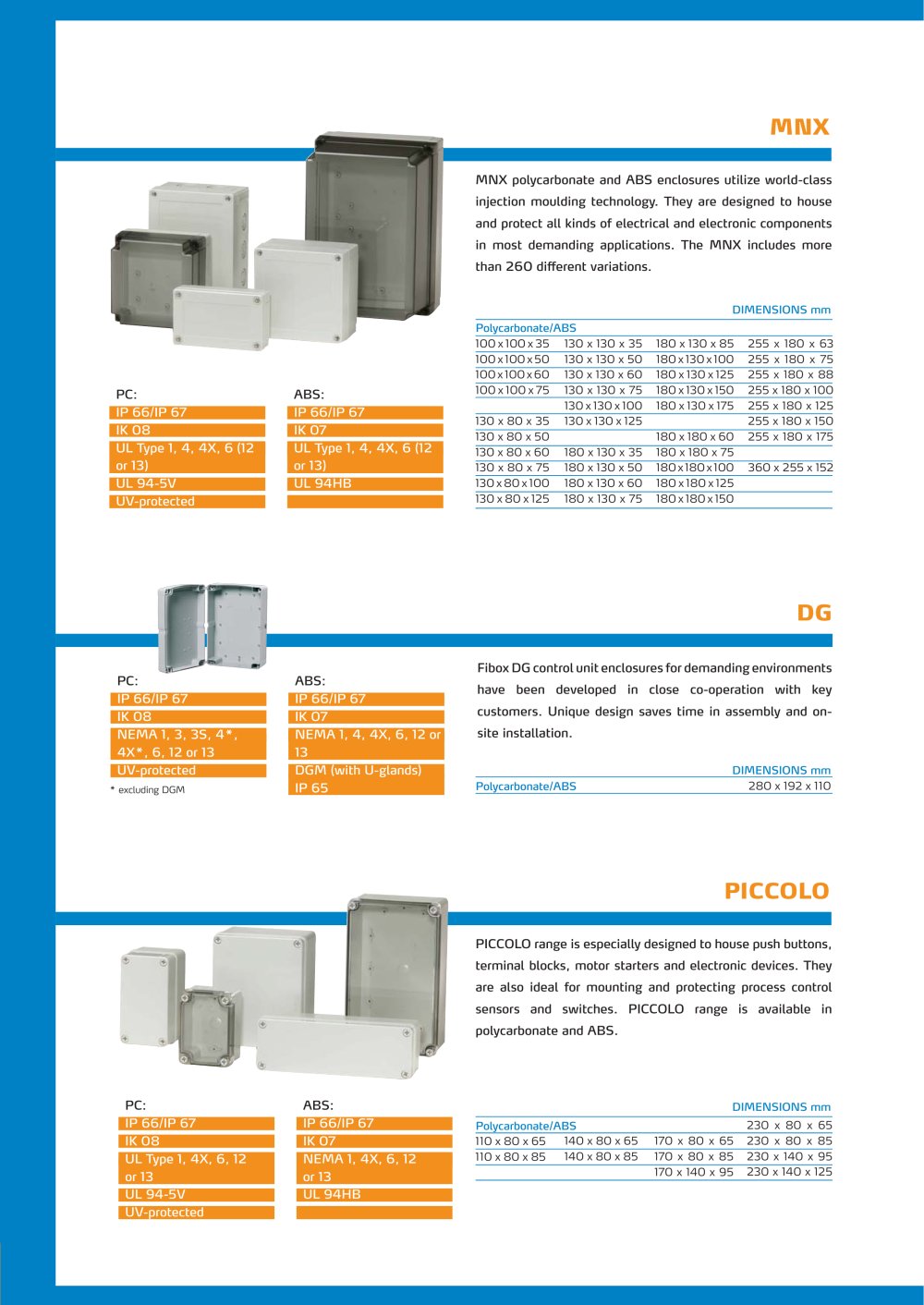

MNX

MNX polycarbonate and ABS enclosures utilize world-class injection moulding technology. They are designed to house and protect all kinds of electrical and electronic components in most demanding applications. The MNX includes more than 260 different variations.

DIMENSIONS mm


Polycarbonate/ABS
100x100x35	130 x 130 x 35	180 x 130 x 85	255 x 180 x 63
100x100x50	130 x 130 x 50	180 x 130 x 100	255 x 180 x 75
100x100x60	130 x 130 x 60	180 x 130 x 125	255 x 180 x 88
100 x 100 x 75	130 x 130 x 75	180 x 130 x 150	255x180x 100
	130 x 130 x 100	180 x 130 x 175	255 x 180 x 125
130 x 80 x 35	130 x 130 x 125		255 x 180 x 150
130 x 80 x 50		180 x 180 x 60	255 x 180 x 175
130 x 80 x 60	180 x 130 x 35	180 x 180 x 75
130 x 80 x 75	180 x 130 x 50	180x 180 x 100	360 x 255 x 152
130 x 80 x 100	180 x 130 x 60	180 x 180 x 125
130 x 80 x 125	180 x 130 x 75	180 x 180 x 150


PC:	ABS:
IP DO/IP 67		IP 66/IP 67
IK 08		IK 07
		UL Type 1, 4, 4X, 6 (12
		or 13)
UL 94-5V		UL 94HB
UV-protected

Fibox DG control unit enclosures for demanding environments have been developed in close co-operation with key customers. Unique design saves time in assembly and on-site installation.

DIMENSIONS mm

PC:

ABS:

IP 66/IP 67

IK 08

IK 07_

NEMA 1, 3, 3S, 4*, 4X*, 6, 12 or 13

DGM (with U-glands) IP 65

unprotected

* excluding DGM

Polycarbonate/ABS

280 x 192 x 110

PICCOLO range is especially designed to house push buttons, terminal blocks, industrial motor starters and electronic devices. They are also ideal for mounting and protecting process control sensors and switches. PICCOLO range is available in polycarbonate and ABS.

PC:

IP 66/IP 67

ABS:

IP 66/IP 67

DIMENSIONS mm


Polycarbonate/ABS								230	x	80	x	65
110 x 80 x 65	140 x	80 x	65	170	x	80 x	65	230	x	80	x	85
110 x 80 x 85	140 x	80 x	85	170	x	80 x	85	230	x	140	x	95
				170	x	140 x	95	230	x	140	x	125

IK 08

UL Type 1, 4X, 6, 12

or 13

UL 94-5V

UL 94HB

UV-protected
