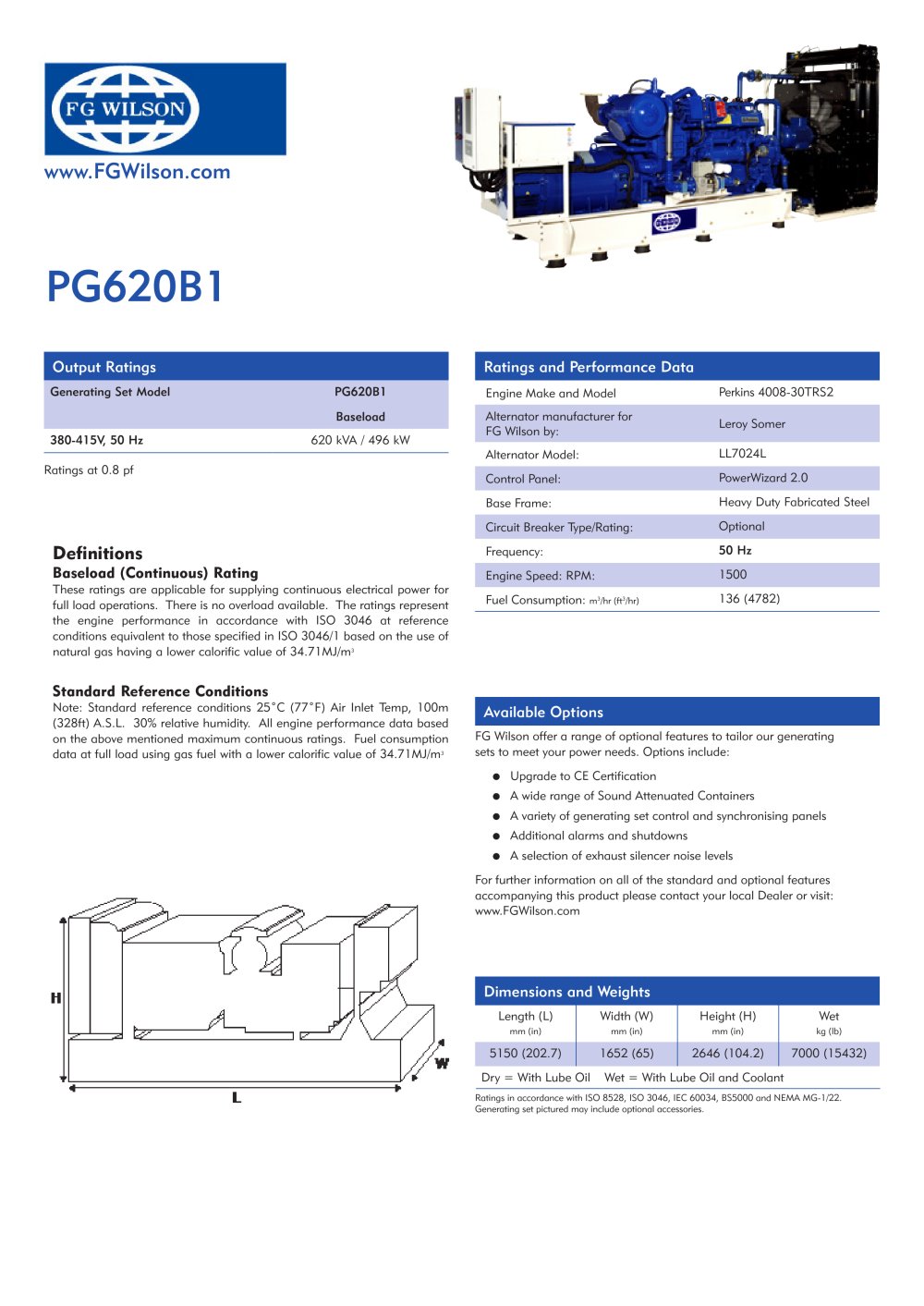

www.FGWilson.com PG620B1 Output Ratings Generating Set Model PG620B1 Baseload 380-415V, 50 Hz 620 kVA / 496 kW Perkins 4008-30TRS2 Leroy Somer LL7024L PowerWizard 2.0 Heavy Duty Fabricated Steel Optional 50 Hz 1500 136 (4782) Ratings and Performance Dat Engine Make and Model Alternator manufacturer for FG Wilson by: Alternator Model: Control Panel: Base Frame: Circuit Breaker Type/Rating: Frequency: Engine Speed: RPM: Fuel Consumption: m3/hr (ft3/hr) Ratings at 0.8 pf Définitions Baseload (Continuous) Rating These ratings are applicable for supplying continuous electrical power for full load operations. There is no overload available. The ratings represent the engine performance in accordance with ISO 3046 at reference conditions equivalent to those specified in ISO 3046/1 based on the use of natural gas having a lower calorific value of 34.71MJ/m3 Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328ft) A.S.L. 30% relative humidity. All engine performance data based on the above mentioned maximum continuous ratings. Fuel consumption data at full load using gas fuel with a lower calorific value of 34.71MJ/m3 ailable Options FG Wilson offer a range of optional features to tailor our generating sets to meet your power needs. Options include: • Upgrade to CE Certification • A wide range of Sound Attenuated Containers • A variety of generating set control and synchronising panels • Additional alarms and shutdowns • A selection of exhaust silencer noise levels For further information on all of the standard and optional features accompanying this product please contact your local Dealer or visit: www.FGWilson.com H W Dimensions and Weights Length (L) Width (W) Height (H) Wet mm (in) mm (in) mm (in) kg (lb) 5150 (202.7) 1652 (65) 2646 (104.2) 7000 (15432) Dry = With Lube Oil Wet = With Lube Oil and Coolant Ratings in accordance with ISO 8528, ISO 3046, IEC 60034, BS5000 and NEMA MG-1/22. Generating set pictured may include optional accessories. L FG Wilson has manufacturing facilities in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network. To contact your local Sales Office please visit the FG Wilson website at www.FGWilson.com
