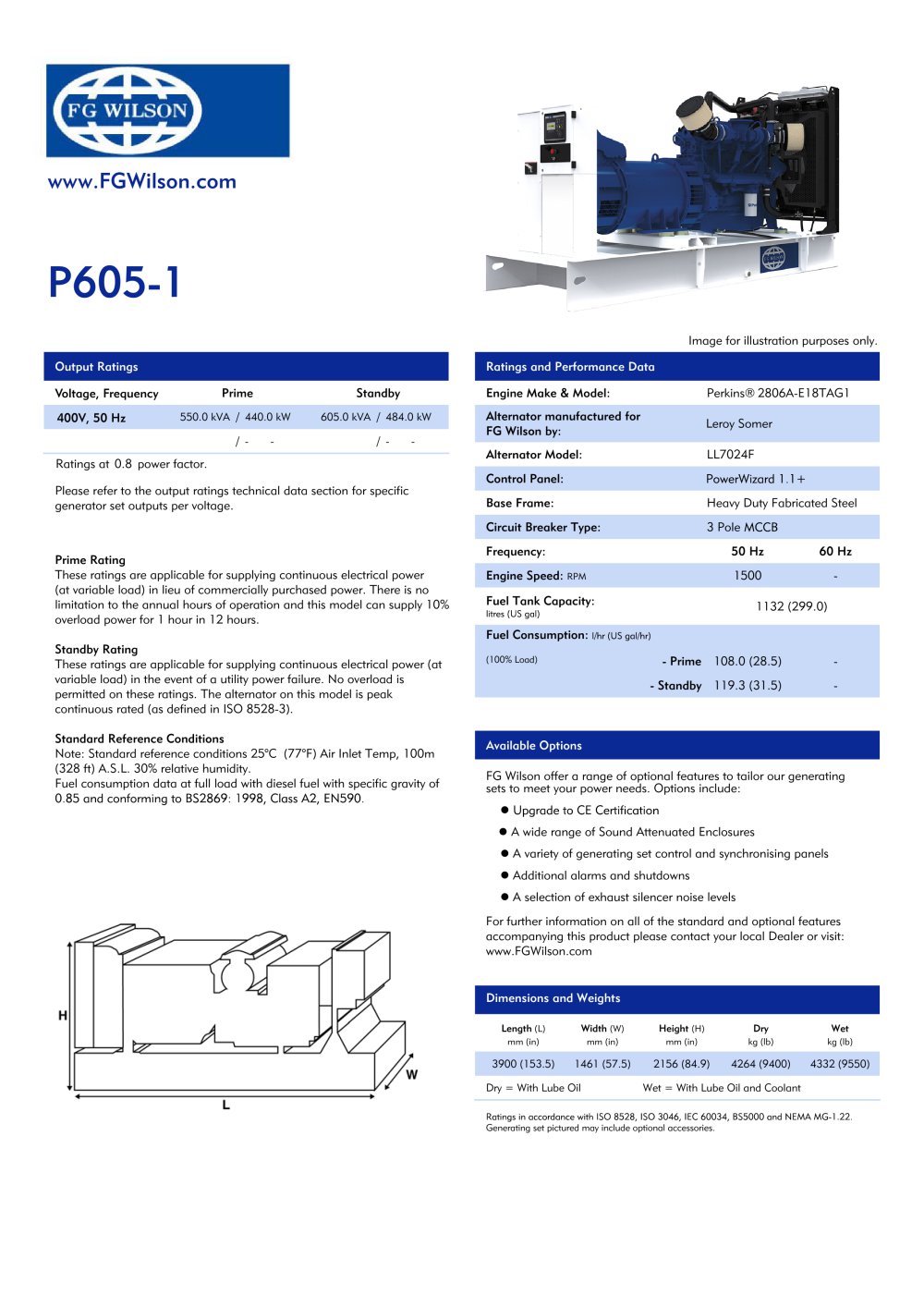

www.FGWilson.com P605-1 Image for illustration purposes only. Output Ratings Generating Set Model Prime Standby 380-415V,50Hz 550.0 kVA / 440.0 kW 605.0 kVA / 484.0 kW - / - -/- Ratings and Performance Data Engine Make & Model: Perkins 2806A-E18TAG1 Alternator manufactured for Leroy Somer FG Wilson by: Alternator Model: LL6114G Control Panel: PowerWizard 1.1 + Base Frame: Heavy Duty Fabricated Steel Circuit Breaker Type: 3 Pole MCCB Frequency: 50 Hz 60 Hz Engine Speed: RPM 1500 - Fuel Tank Capacity: litres (US gal) 1188 (313.8) Ratings at 0 . 8 power factor. Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2. Fuel Consumption: l/hr (US gal/hr) (100% Load) - Prime 107.1(28.3) - - Standby 118.4 (31.3) - Available Options FG Wilson offer a range of optional features to tailor our generating sets to meet your power needs. Options include: • Upgrade to CE Certification • A wide range of Sound Attenuated Enclosures • A variety of generating set control and synchronising panels • Additional alarms and shutdowns • A selection of exhaust silencer noise levels For further information on all of the standard and optional features accompanying this product please contact your local Dealer or visit: www.FGWilson.com Dimensions and Weights Length (L) Width (W) Height (H) Dry Wet mm (in) mm (in) mm (in) kg (lb) kg (lb) 3900 (153.5) 1461 (57.5) 2155(84.8) 4159(9169) 4217 (9297) Dry = With Lube Oil Wet = With Lube Oil and Coolant L Ratings in accordance with ISO 8528, ISO 3046, IEC 60034, BS5000 and NEMA MG-1/22. Generating set pictured may include optional accessories. FG Wilson has manufacturing facilities in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network. To contact your local Sales Office please visit the FG Wilson website at www.FGWilson.com
