Electraflash® Flashing Lights - FEDERAL SIGNAL - #1

Text version of the page

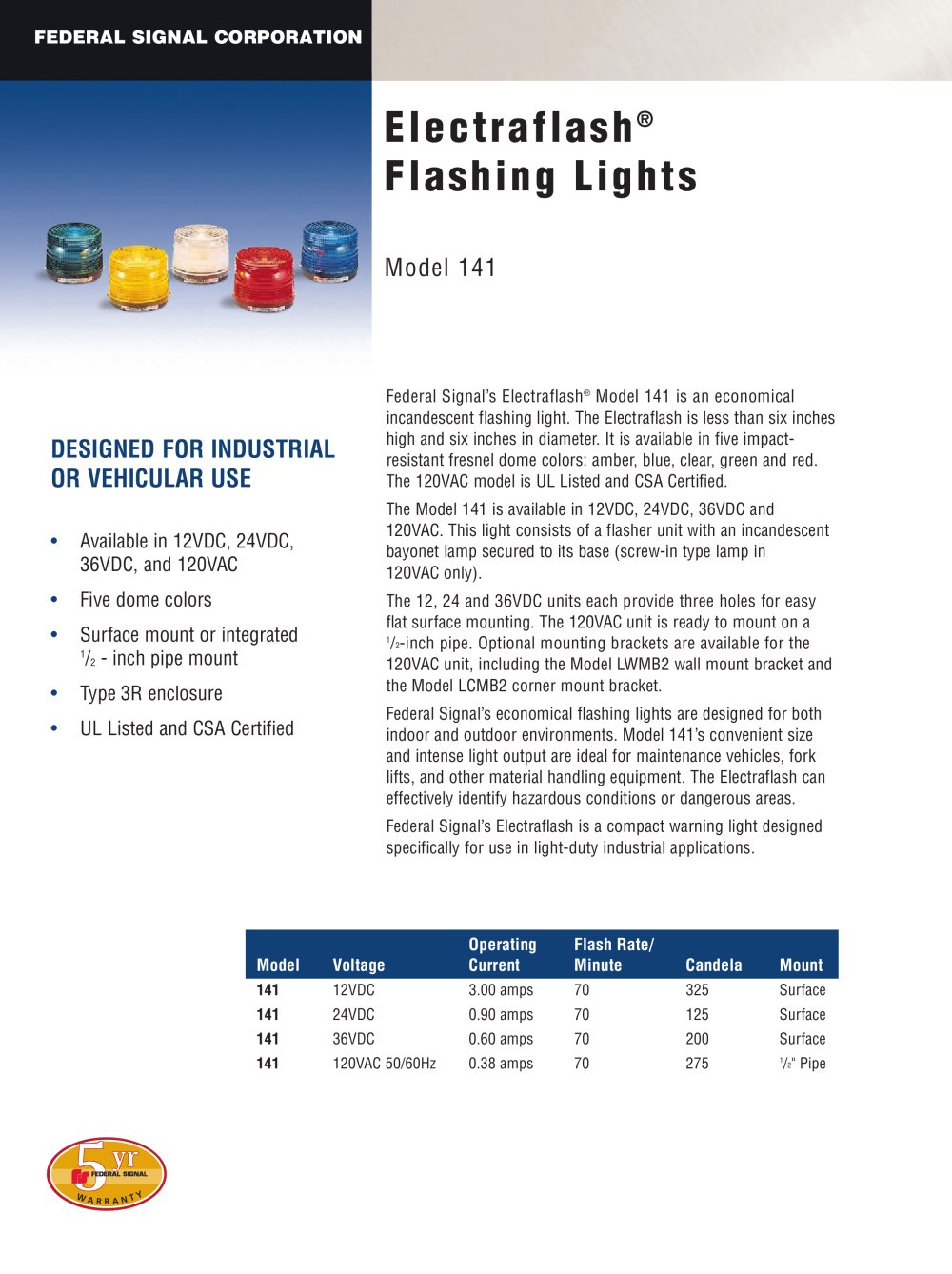

DESIGNED FOR INDUSTRIAL OR VEHICULAR USE • Available in 12VDC, 24VDC, 36VDC, and 120VAC • Five dome colors • Surface mount or integrated 1/2 - inch pipe mount • Type 3R enclosure • UL Listed and CSA Certified Electraflash® Flashing Lights Model 141 Federal Signal’s Electraflash® Model 141 is an economical incandescent flashing light. The Electraflash is less than six inches high and six inches in diameter. It is available in five impactresistant fresnel dome colors: amber, blue, clear, green and red. The 120VAC model is UL Listed and CSA Certified. The Model 141 is available in 12VDC, 24VDC, 36VDC and 120VAC. This light consists of a flasher unit with an incandescent bayonet lamp secured to its base (screw-in type lamp in 120VAC only). The 12, 24 and 36VDC units each provide three holes for easy flat surface mounting. The 120VAC unit is ready to mount on a 1/2-inch pipe. Optional mounting brackets are available for the 120VAC unit, including the Model LWMB2 wall mount bracket and the Model LCMB2 corner mount bracket. Federal Signal’s economical flashing lights are designed for both indoor and outdoor environments. Model 141’s convenient size and intense light output are ideal for maintenance vehicles, fork lifts, and other material handling equipment. The Electraflash can effectively identify hazardous conditions or dangerous areas. Federal Signal’s Electraflash is a compact warning light designed specifically for use in light-duty industrial applications. 5yr W A R R A N T Y Operating Flash Rate/ Model Voltage Current Minute Candela Mount 141 12VDC 3.00 amps 70 325 Surface 141 24VDC 0.90 amps 70 125 Surface 141 36VDC 0.60 amps 70 200 Surface 141 120VAC 50/60Hz 0.38 amps 70 275 1/2" Pipe
