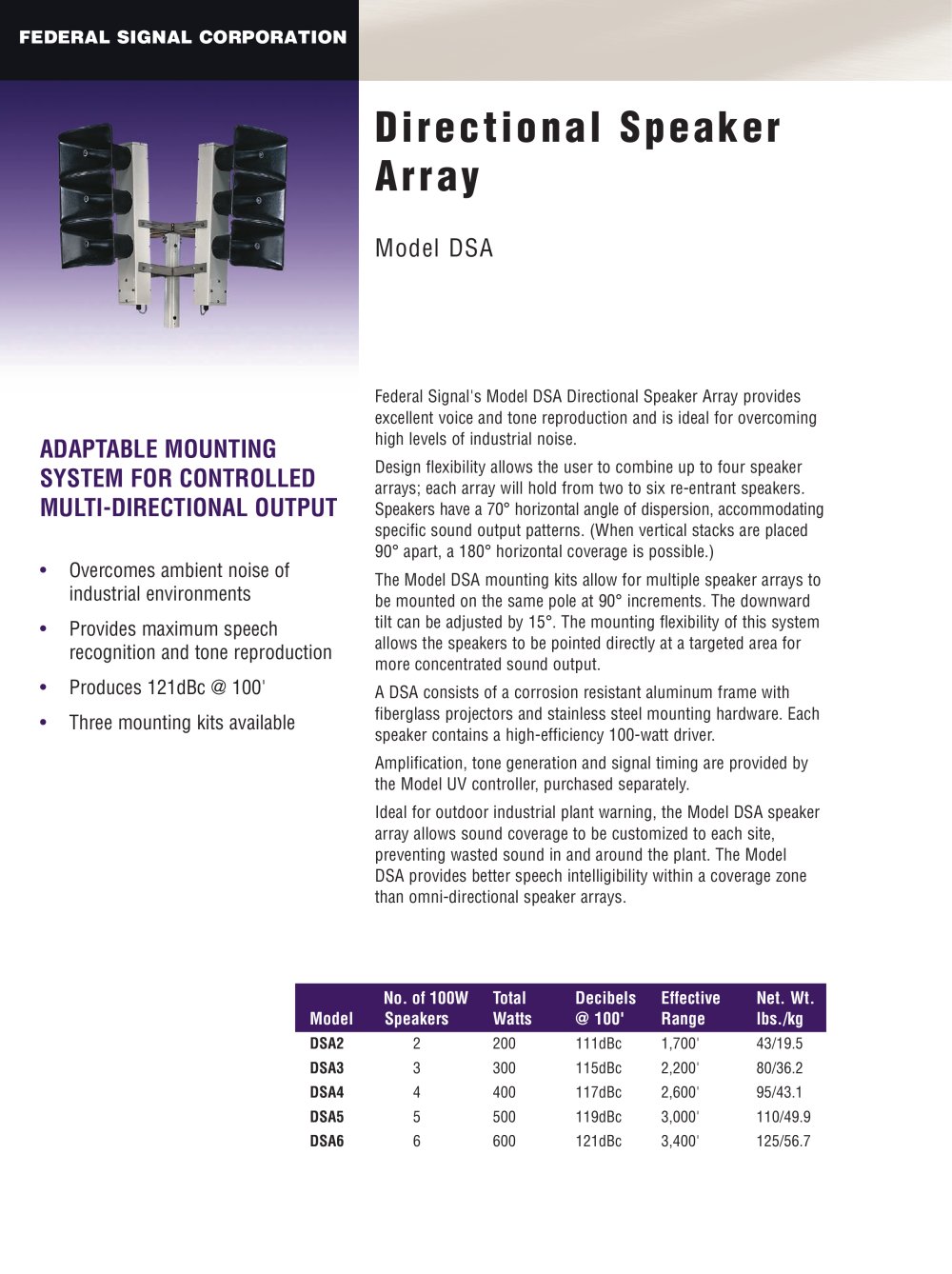

ADAPTABLE MOUNTING SYSTEM FOR CONTROLLED MULTI-DIRECTIONAL OUTPUT • Overcomes ambient noise of industrial environments • Provides maximum speech recognition and tone reproduction • Produces 121dBc @ 100' • Three mounting kits available Directional Speaker Array Model DSA Federal Signal's Model DSA Directional Speaker Array provides excellent voice and tone reproduction and is ideal for overcoming high levels of industrial noise. Design flexibility allows the user to combine up to four speaker arrays; each array will hold from two to six re-entrant speakers. Speakers have a 70° horizontal angle of dispersion, accommodating specific sound output patterns. (When vertical stacks are placed 90° apart, a 180° horizontal coverage is possible.) The Model DSA mounting kits allow for multiple speaker arrays to be mounted on the same pole at 90° increments. The downward tilt can be adjusted by 15°. The mounting flexibility of this system allows the speakers to be pointed directly at a targeted area for more concentrated sound output. A DSA consists of a corrosion resistant aluminum frame with fiberglass projectors and stainless steel mounting hardware. Each speaker contains a high-efficiency 100-watt driver. Amplification, tone generation and signal timing are provided by the Model UV controller, purchased separately. Ideal for outdoor industrial plant warning, the Model DSA speaker array allows sound coverage to be customized to each site, preventing wasted sound in and around the plant. The Model DSA provides better speech intelligibility within a coverage zone than omni-directional speaker arrays. No. of 100W Total Decibels Effective Net. Wt. Model Speakers Watts @ 100' Range lbs./kg DSA2 2 200 111dBc 1,700' 43/19.5 DSA3 3 300 115dBc 2,200' 80/36.2 DSA4 4 400 117dBc 2,600' 95/43.1 DSA5 5 500 119dBc 3,000' 110/49.9 DSA6 6 600 121dBc 3,400' 125/56.7
