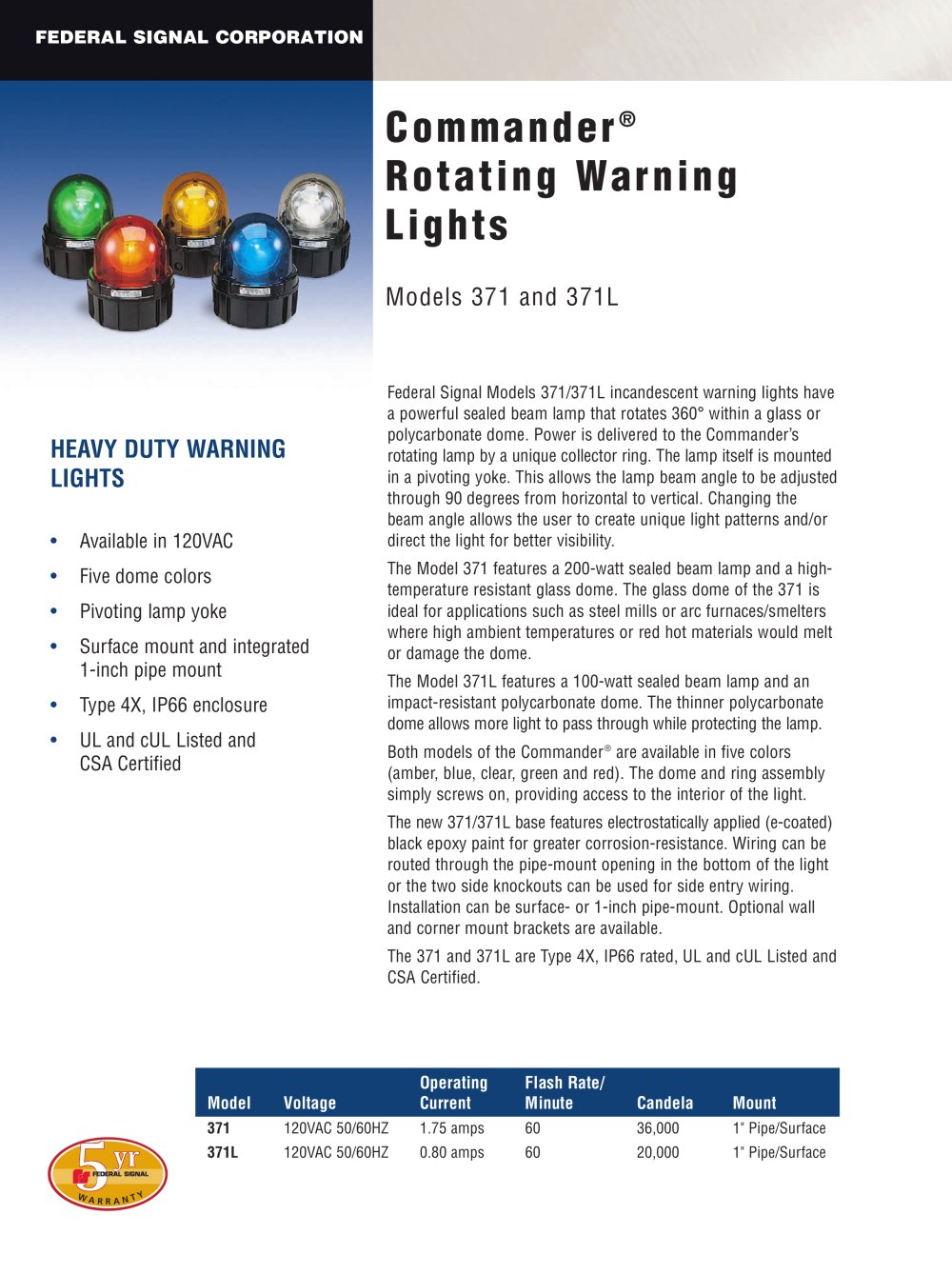

HEAVY DUTY WARNING LIGHTS • Available in 120VAC • Five dome colors • Pivoting lamp yoke • Surface mount and integrated 1-inch pipe mount • Type 4X, IP66 enclosure • UL and cUL Listed and CSA Certified Commander® Rotating Warning Lights Models 371 and 371L Federal Signal Models 371/371L incandescent warning lights have a powerful sealed beam lamp that rotates 360° within a glass or polycarbonate dome. Power is delivered to the Commander’s rotating lamp by a unique collector ring. The lamp itself is mounted in a pivoting yoke. This allows the lamp beam angle to be adjusted through 90 degrees from horizontal to vertical. Changing the beam angle allows the user to create unique light patterns and/or direct the light for better visibility. The Model 371 features a 200-watt sealed beam lamp and a hightemperature resistant glass dome. The glass dome of the 371 is ideal for applications such as steel mills or arc furnaces/smelters where high ambient temperatures or red hot materials would melt or damage the dome. The Model 371L features a 100-watt sealed beam lamp and an impact-resistant polycarbonate dome. The thinner polycarbonate dome allows more light to pass through while protecting the lamp. Both models of the Commander® are available in five colors (amber, blue, clear, green and red). The dome and ring assembly simply screws on, providing access to the interior of the light. The new 371/371L base features electrostatically applied (e-coated) black epoxy paint for greater corrosion-resistance. Wiring can be routed through the pipe-mount opening in the bottom of the light or the two side knockouts can be used for side entry wiring. Installation can be surface- or 1-inch pipe-mount. Optional wall and corner mount brackets are available. The 371 and 371L are Type 4X, IP66 rated, UL and cUL Listed and CSA Certified. 5yr W A R R A N T Y Operating Flash Rate/ Model Voltage Current Minute Candela Mount 371 120VAC 50/60HZ 1.75 amps 60 36,000 1" Pipe/Surface 371L 120VAC 50/60HZ 0.80 amps 60 20,000 1" Pipe/Surface
