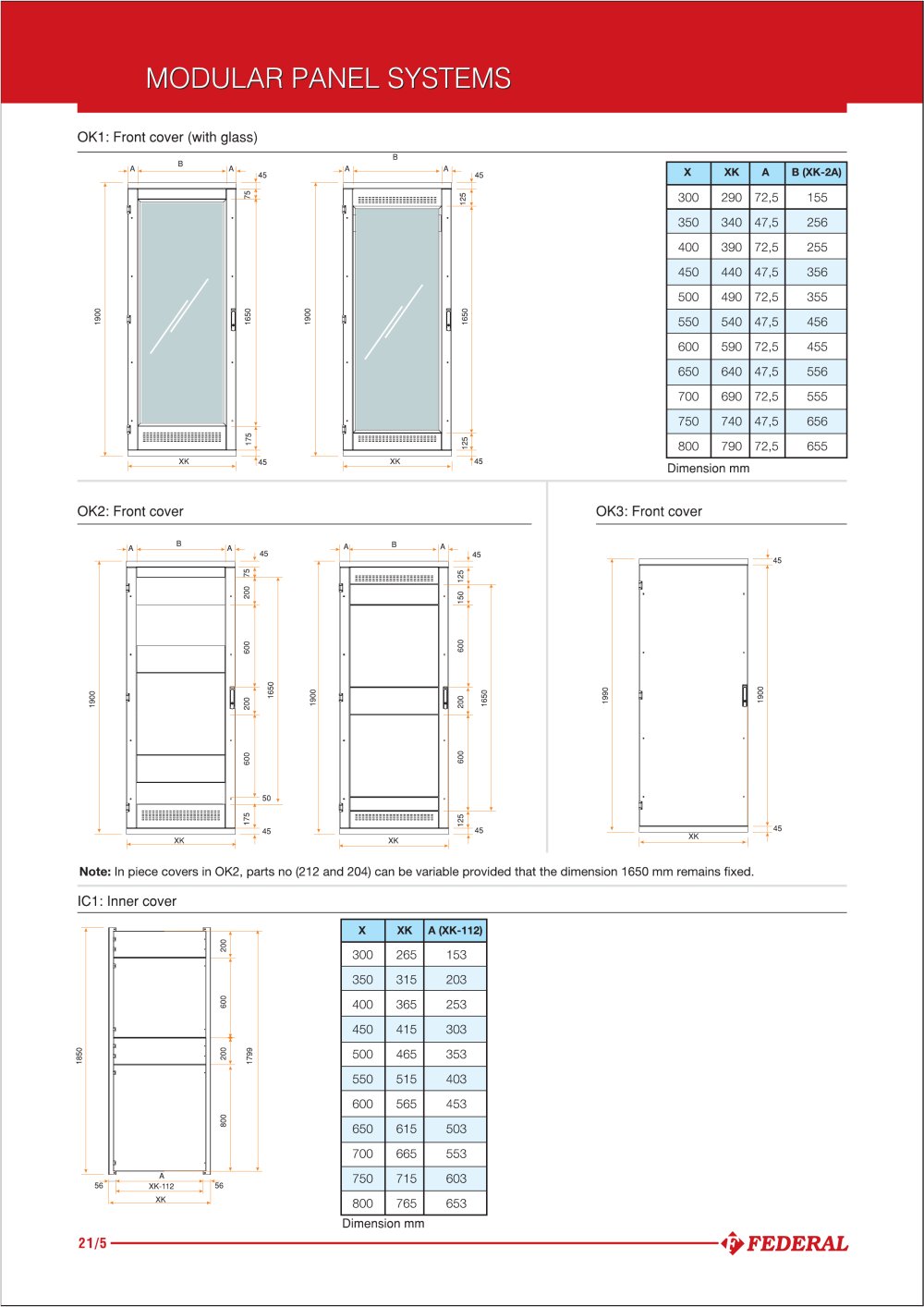

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:40.00pt "Arial", sans-serif; } .font7 { font:13.00pt "Sylfaen", serif; } ODULAR PANEL SYSTEMS OK1 : Front cover (with glass) [i TA x xk a b(xk-2a) 300 290 72,5 155 350 340 47,5 256 400 390 72,5 255 450 440 47,5 356 500 490 72,5 355 550 540 47,5 456 600 590 72,5 455 650 640 47,5 556 700 690 72,5 555 750 740 47,5 656 800 790 72,5 655 J t« Dimension mm OK2: Front cover OK3: Front cover -*-50 ■ 3 ——— XK _J " — Note: In pièce covers in OK2, parts no (212 and 204) can be variable provided that the dimension 1650 mm remains fixed. IC1 : Inner cover A XK-112 XK x xk a (xk-112) 300 265 153 350 315 203 400 365 253 450 415 303 500 465 353 550 515 403 600 565 453 650 615 503 700 665 553 750 715 603 800 765 653 Dimension mm 21/5 ■ FEDERAL
