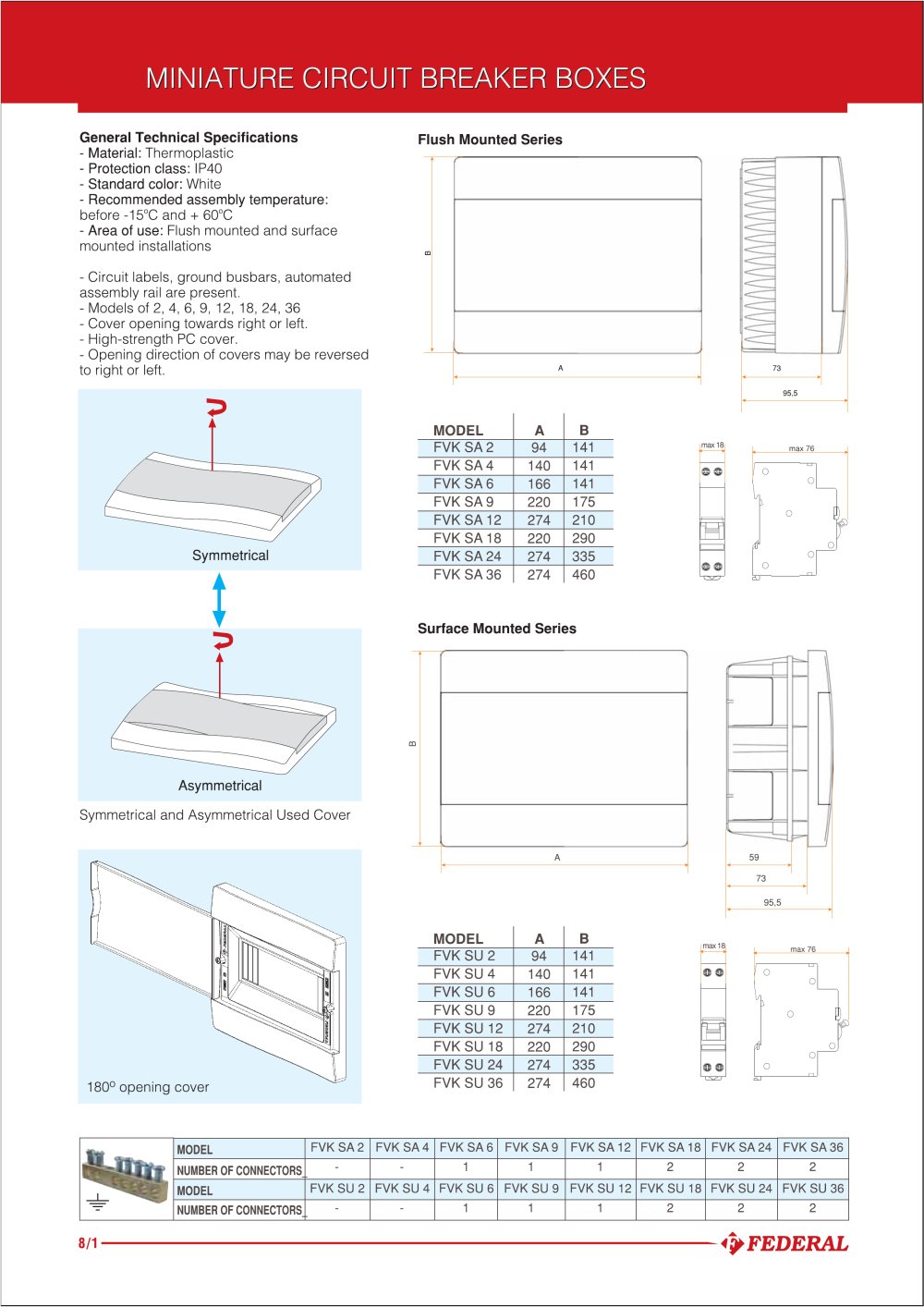

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:16.00pt "Arial", sans-serif; } .font7 { font:5.00pt "Georgia", serif; } MINIATURE CIRCUIT BREAKER BOXES General Technical Spécifications - Material: Thermoplastic - Protection class: IP40 - Standard color: White - Recommended assembly température: before-15°C and + 60°C - Area of use: Flush mounted and surface mounted installations - Circuit labels, ground busbars, automated assembly rail are présent. - Models of 2, 4, 6, 9, 12, 18, 24, 36 - Cover opening towards right or left. - High-strength PC cover. - Opening direction of covers may be reversed to right or left. Flush Mounted Séries MODEL A B FVK SA 2 94 141 FVK SA 4 140 141 FVK SA 6 166 141 FVK SA 9 220 175 FVK SA 12 274 210 FVK SA 18 220 290 FVK SA 24 274 335 FVK SA 36 274 460 Symmetrical Surface Mounted Séries 59 Asymmetrical Symmetrical and Asymmetrical Used Cover 95,5 180° opening cover MODEL A B FVK SU 2 94 141 FVK SU 4 140 141 FVK SU 6 166 141 FVK SU 9 220 175 FVK SU 12 274 210 FVK SU 18 220 290 FVK SU 24 274 335 FVK SU 36 274 460 MODEL FVK SA 2 FVK SA 4 FVK SA 6 FVK SA 9 FVK SA 12 FVK SA 18 FVK SA 24 FVK SA 36 NUMBER OFCONNECTORS - - 1 1 1 2 cm 2 MODEL FVK SU 2 FVK SU 4 FVK SU 6 FVK SU 9 FVK SU 12 FVK SU 18 FVK SU 24 FVK SU 36 NUMBER OFCONNECTORS - - 1 1 1 2 cm cm —<p FEDERAL
