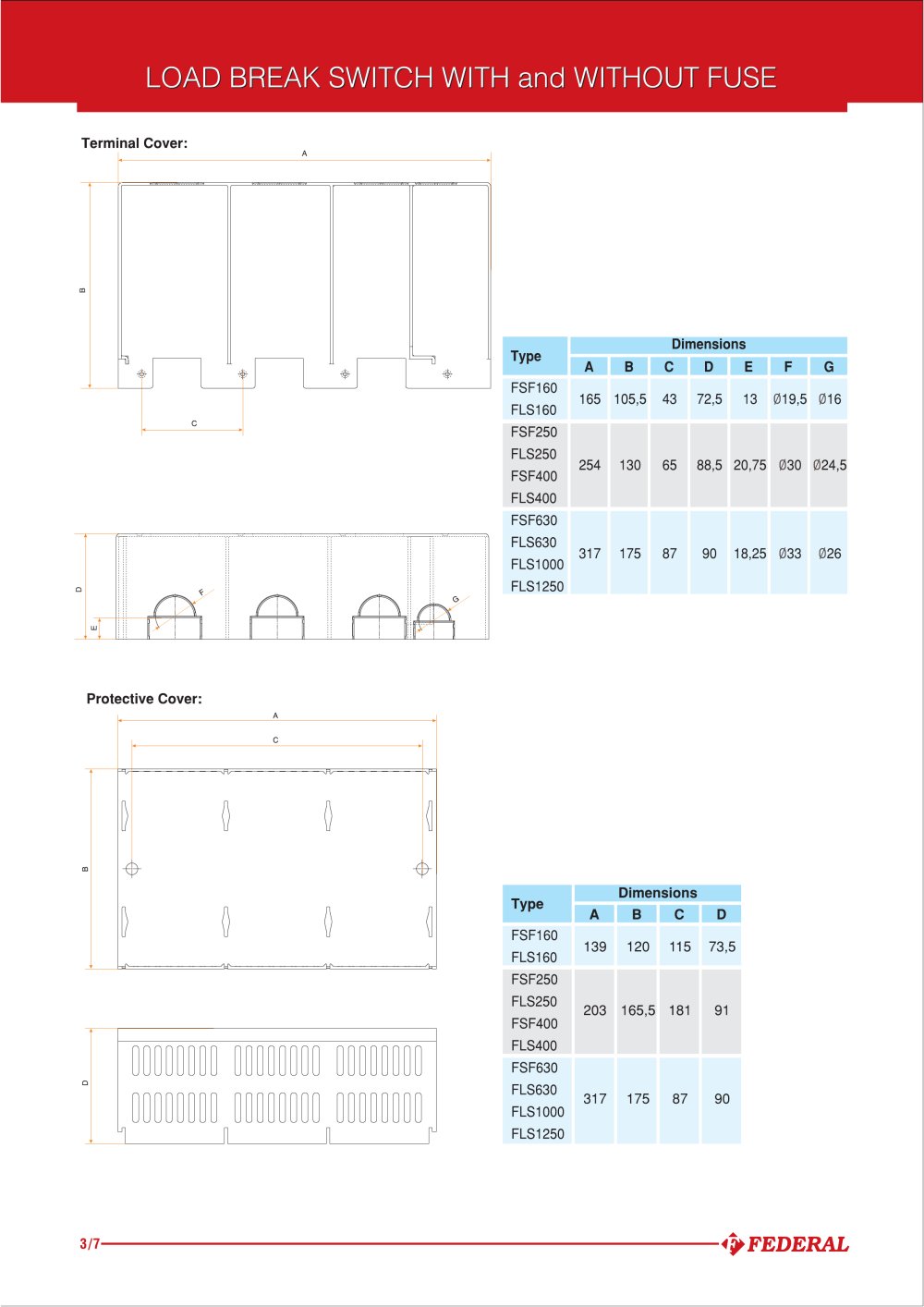

REAK SWITCH WITH and WITHOUT FUS
Terminal Cover:
Type
FSF160 FLS160 FSF250 FLS250 FSF400 FLS400 FSF630 FLS630 FLS1000 FLS1250
Dimensions A B C D E F G
165 105,5 43 72,5 13 019,5 016
254 130 65 88,5 20,75 030 024,5
317 175 87 90 18,25 033 026
Protective Cover:
Type
FSF160
FLS160
FSF250
FLS250
FSF400
FLS400
FSF630
FLS630
FLS1000
FLS1250
Dimensions A B C D
139 120 115 73,5
203 165,5 181 91
317 175 87 90
3/7
