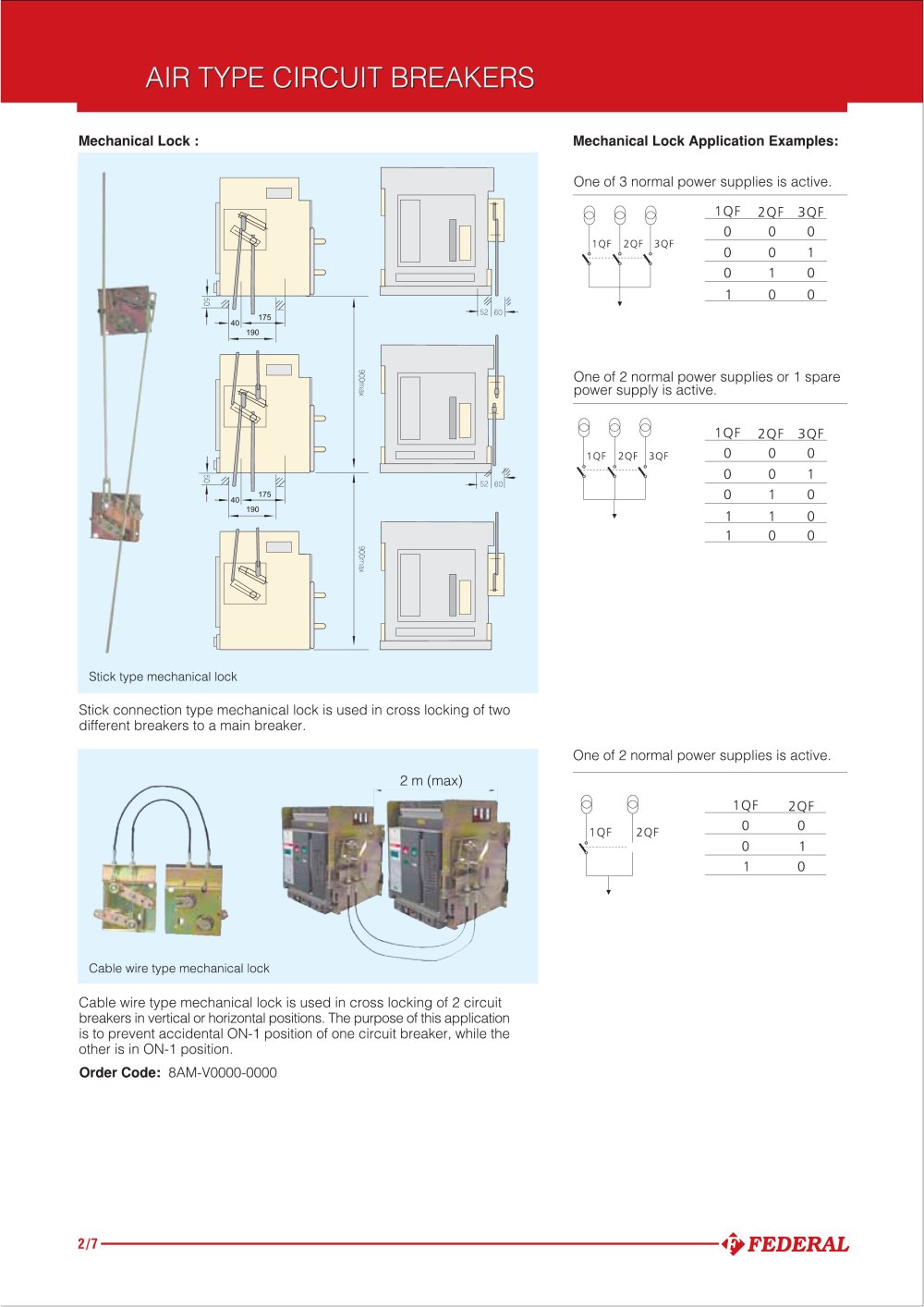

AIR TYPE CIRCUIT BREAKERS
Mechanical Lock : Mechanical Lock Application Examples:
Stick type mechanical lock
Stick connection type mechanical lock is used in cross locking of two différent breakers to a main breaker.
One of 2 normal power supplies is active.
Cable wire type mechanical lock
Cable wire type mechanical lock is used in cross locking of 2 circuit breakers in vertical or horizontal positions. The purpose of this application is to prevent accidentai ON-1 position of one circuit breaker, while the other is in ON-1 position.
Order Code: 8AM-V0000-0000
2/7
