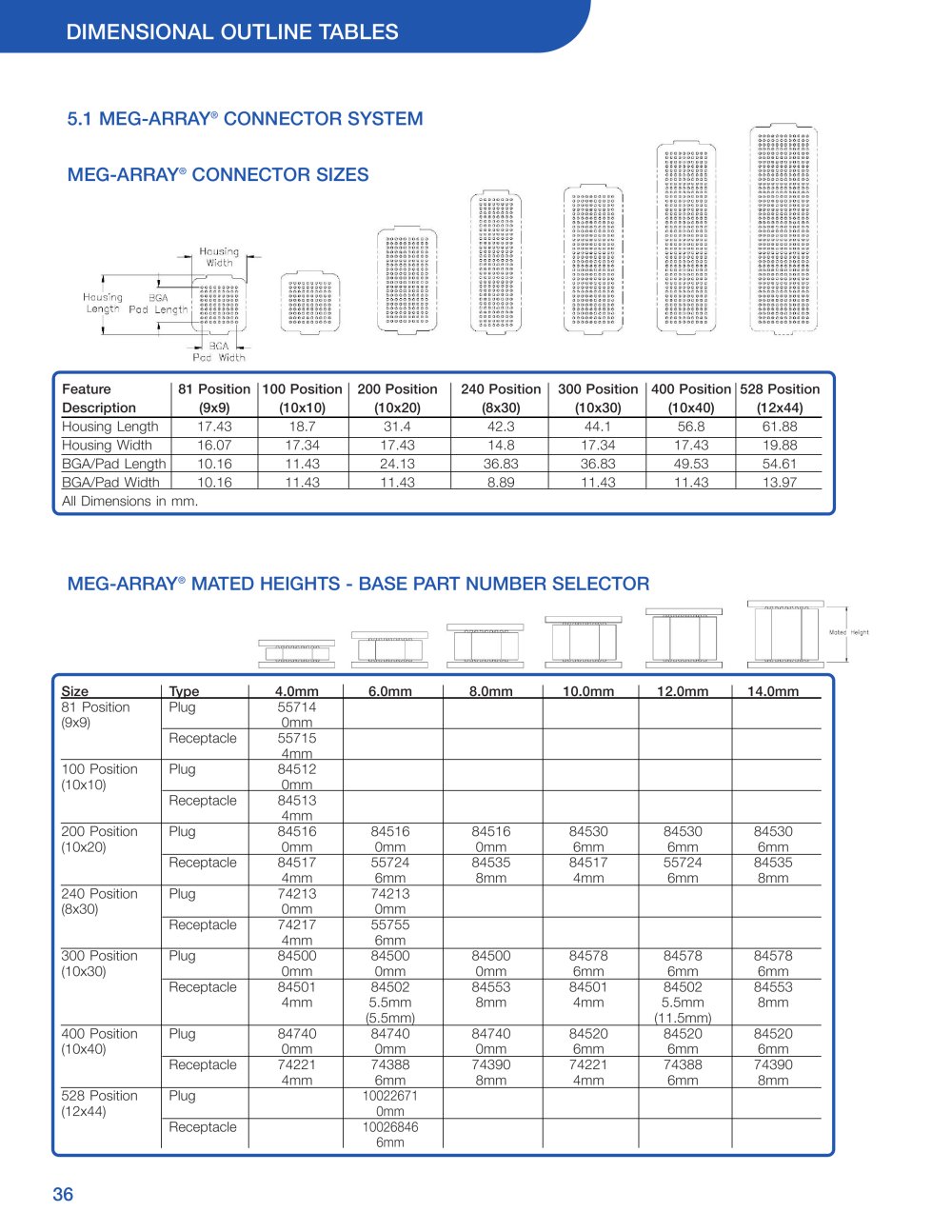

DIMENSIONAL OUTLINE TABLES

5.1 MEG-ARRAY® CONNECTOR SYSTEM

MEG-ARRAY® CONNECTOR SIZES

Housing Width

I--C=

Housing BGA Length Pod Length

1


	Feature	81 Position	100 Position	200 Position	240 Position	300 Position	400 Position	528 Position
	Description	(9x9)	(10x10)	(10x20)	(8x30)	(10x30)	(10x40)	(12x44)
	Housing Length	17.43	18.7	31.4	42.3	44.1	56.8	61.88
	Housing Width	16.07	17.34	17.43	14.8	17.34	17.43	19.88
	BGA/Pad Length	10.16	11.43	24.13	36.83	36.83	49.53	54.61
	BGA/Pad Width	10.16	_11.43	1143	8.89	1143	_11.43	13.97

All Dimensions in mm.

MEG-ARRAY® MATED HEIGHTS - BASE PART NUMBER SELECTOR


	Size	Type	4.0mm	6.0mm	8.0mm	10.0mm	12.0mm	14.0mm
	81 Position (9x9)	Plug	55714 0mm
	81 Position (9x9)	Receptacle	55715 4mm
	100 Position (10x10)	Plug	84512 0mm
	100 Position (10x10)	Receptacle	84513 4mm
	200 Position (10x20)	Plug	84516 0mm	84516 0mm	84516 0mm	84530 6mm	84530 6mm	84530 6mm
	200 Position (10x20)	Receptacle	84517 4mm	55724 6mm	84535 8mm	84517 4mm	55724 6mm	84535 8mm
	240 Position (8x30)	Plug	74213 0mm	74213 0mm
	240 Position (8x30)	Receptacle	74217 4mm	55755 6mm
	(10X30)	Plug	84500 0mm	84500 0mm	84500 0mm	84578 6mm	84578 6mm	84578 6mm
	(10X30)	Receptacle	84501 4mm	84502 5.5mm (5.5mm)	84553 8mm	84501 4mm	84502 5.5mm (11.5mm)	84553 8mm
	400 Position (10x40)	Plug	84740 0mm	84740 0mm	84740 0mm	84520 6mm	84520 6mm	84520 6mm
	400 Position (10x40)	Receptacle	74221 4mm	74388 6mm	74390	74221 4mm	74388 6mm	74390 8mm
	(12x44)	Plug		10022671 0mm
	(12x44)	Receptacle		10026846 6mm
