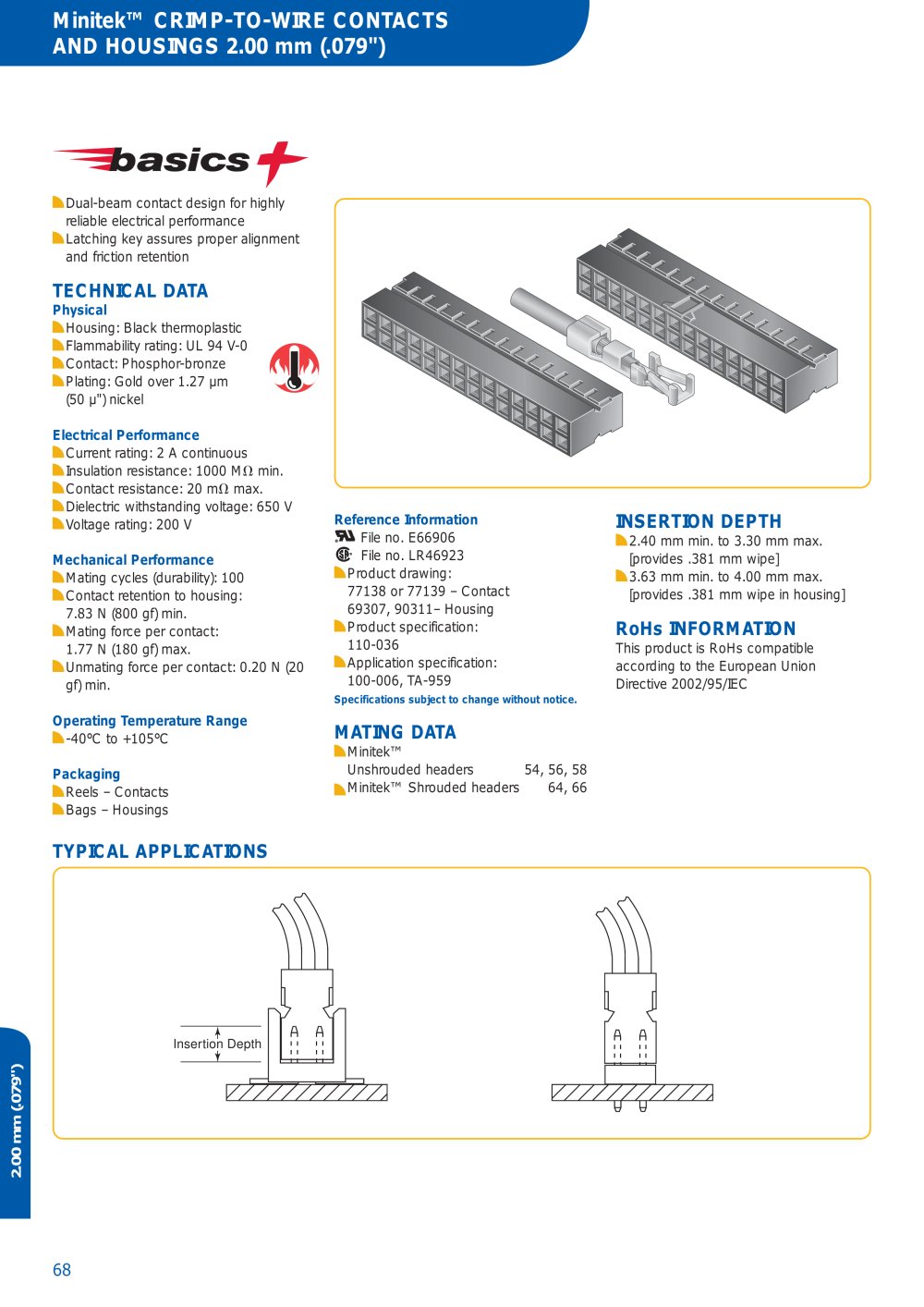

Minitek™CRIMP-TO-WIRE CONTACTS AND HOUSINGS 2.00mm(.079")

Dual-beam contact design for highlyreliable electrical performance Latching key assures proper alignmentand friction retention

TECHNICAL DATA

Physical Housing: Black thermoplastic Flammability rating: UL 94 V-0Contact: Phosphor-bronzePlating: Gold over 1.27 µm (50 µ") nickel Electrical Performance Current rating: 2 A continuousInsulation resistance: 1000 M min.Contact resistance: 20 m max.Dielectric withstanding voltage: 650 V Voltage rating: 200 V Mechanical Performance Mating cycles (durability): 100Contact retention to housing: 7.83 N (800 gf) min.Mating force per contact: 1.77 N (180 gf) max. Unmating force per contact: 0.20 N (20 gf) min. Operating Temperature Range -40°C to +105°C Reference Information

INSERTION DEPTH

File no. E66906File no. LR46923Product drawing: 77138 or 77139 – Contact69307, 90311– HousingProduct specification: 110-036 Application specification: 100-006, TA-959 2.40 mm min. to 3.30 mm max. [provides .381 mm wipe]3.63 mm min. to 4.00 mm max. [provides .381 mm wipe in housing] Packaging Industrial reels – Contacts Bags – Housings

RoHsINFORMATION

This product is RoHs compatible according to the European UnionDirective 2002/95/IEC
Specifications subject to change without notice.

MATING DATA

Minitek™ Unshrouded headers54, 56, 58 Minitek™ Shrouded headers64, 66

TYPICAL APPLICATIONS

Insertion Depth 2.00 mm(.079")

68
