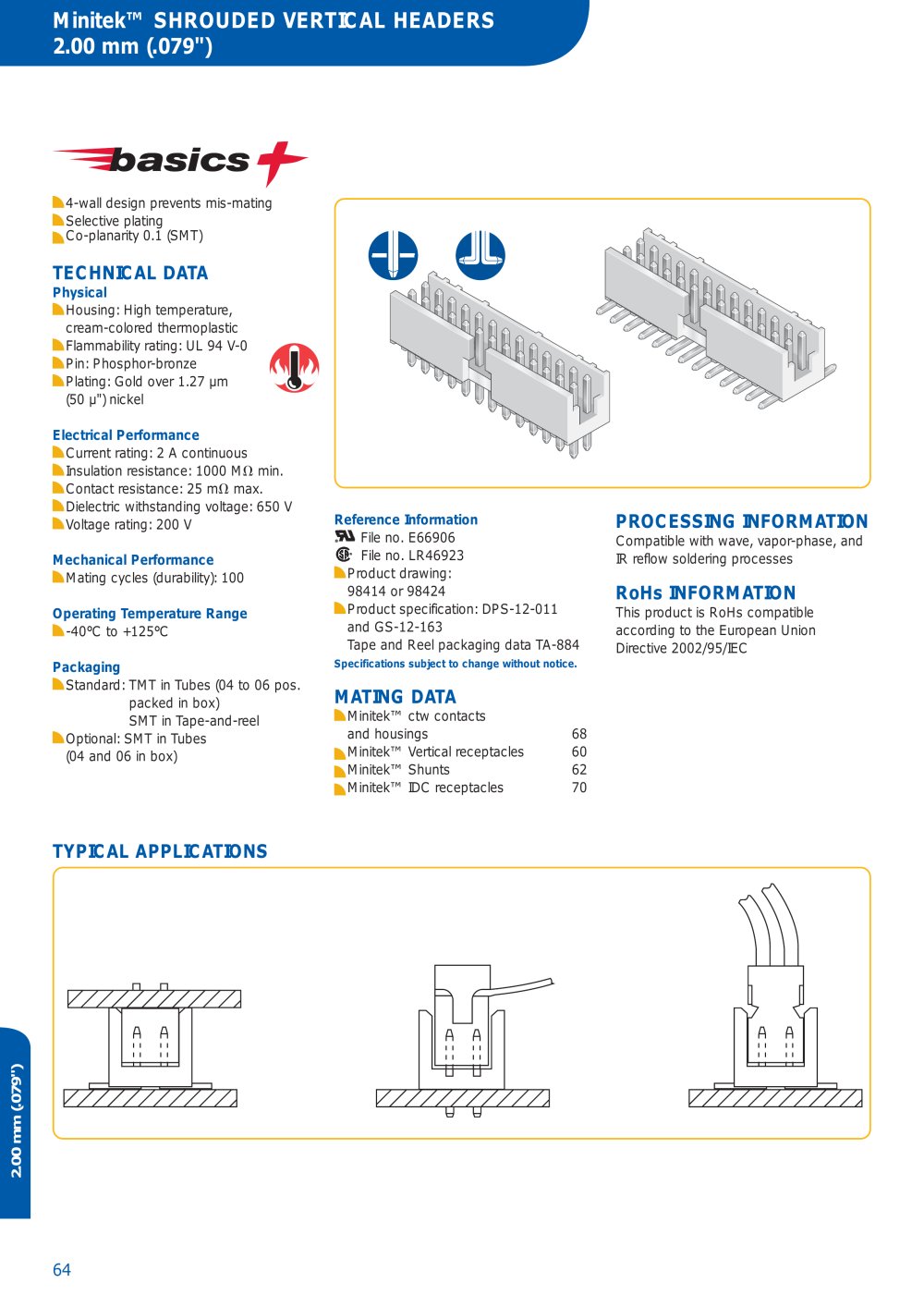

Minitek™ SHROUDED VERTICAL HEADERS2.00 mm(.079")
4-wall design prevents mis-matingSelective platingCo-planarity 0.1 (SMT)
TECHNICAL DATA
Physical Housing: High temperature, cream-colored thermoplasticFlammability rating: UL 94 V-0Pin: Phosphor-bronze
Plating: Gold over 1.27 µm (50 µ") nickel Electrical Performance Current rating: 2 A continuousInsulation resistance: 1000 M min.Contact resistance: 25 m max.Dielectric withstanding voltage: 650 V
Voltage rating: 200 V Mechanical Performance Mating cycles (durability): 100 Operating Temperature Range -40°C to +125°C Packaging Reference Information
PROCESSING INFORMATION
Standard: TMT in Tubes (04 to 06 pos.packed in box)SMT in Tape-and-reelOptional: SMT in Tubes (04 and 06 in box) File no. E66906File no. LR46923Product drawing: 98414 or 98424Product specification: DPS-12-011and GS-12-163
Tape and Reel packaging data TA-884 Compatible with wave, vapor-phase, and IR reflow soldering processes
RoHsINFORMATION
This product is RoHs compatible according to the European UnionDirective 2002/95/IEC
Specifications subject to change without notice. MATING DATA
Minitek™ ctw contacts and housings68
Minitek™ Vertical receptacles60
Minitek™ Shunts 62
Minitek™ IDC receptacles 70
TYPICAL APPLICATIONS
2.00 mm(.079") 64
