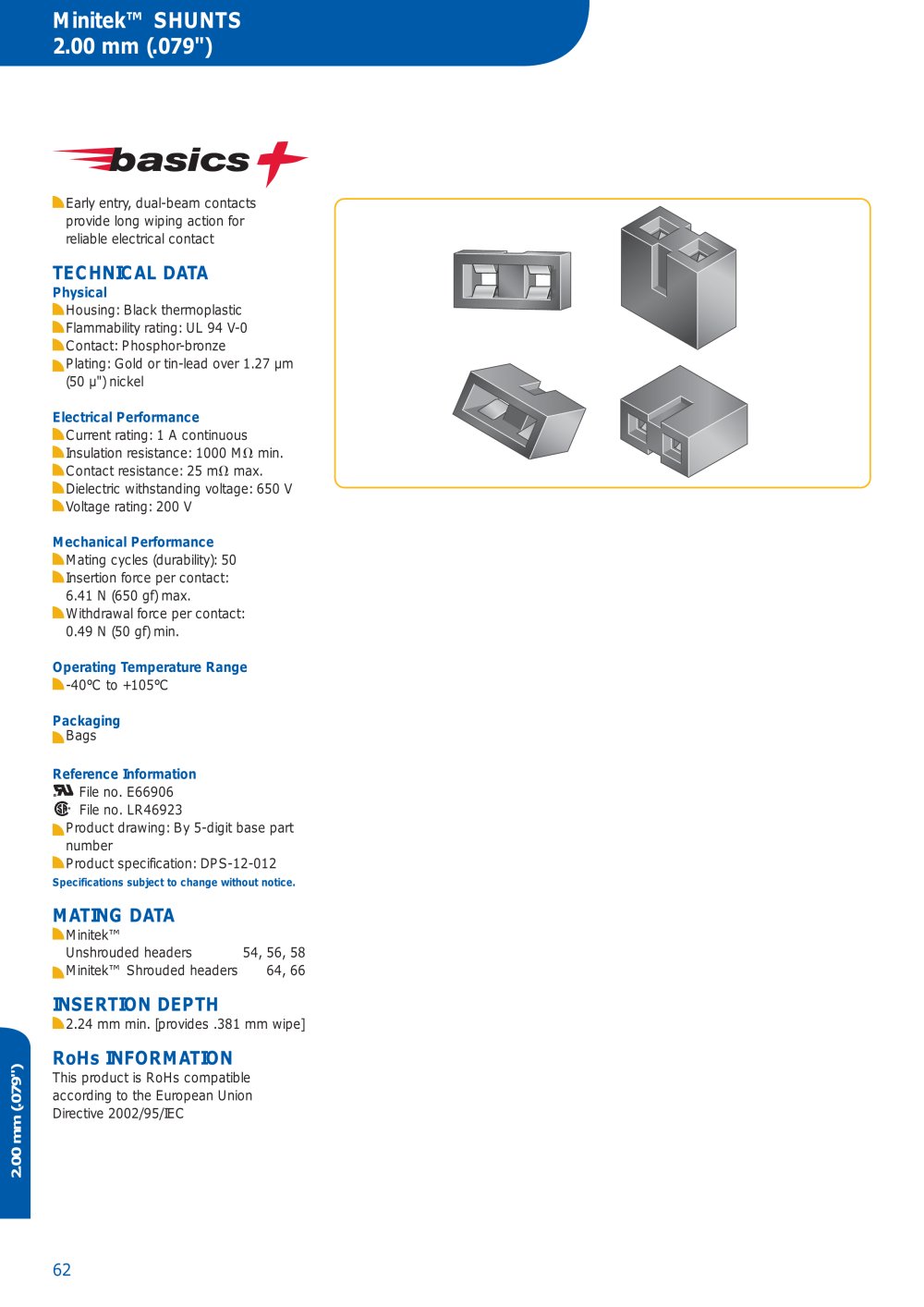

Minitek™ SHUNTS2.00mm(.079")

Early entry, dual-beam contacts provide long wiping action for reliable electrical contact

TECHNICAL DATA

Physical Housing: Black thermoplastic Flammability rating: UL 94 V-0Contact: Phosphor-bronzePlating: Gold or tin-lead over 1.27 µm (50 µ") nickel Electrical Performance Current rating: 1 A continuousInsulation resistance: 1000 M min.Contact resistance: 25 m max.Dielectric withstanding voltage: 650 V Voltage rating: 200 V Mechanical Performance Mating cycles (durability): 50 Insertion force per contact: 6.41 N (650 gf) max.Withdrawal force per contact: 0.49 N (50 gf) min. Operating Temperature Range -40°C to +105°C Packaging Bags Reference Information File no. E66906File no. LR46923Product drawing: By 5-digit base part number Product specification: DPS-12-012
Specifications subject to change without notice.

MATING DATA

Minitek™ Unshrouded headers54, 56, 58 Minitek™ Shrouded headers64, 66

INSERTION DEPTH

2.24 mm min. [provides .381 mm wipe]

RoHsINFORMATION

This product is RoHs compatible according to the European Union Directive 2002/95/IEC
2.00 mm(.079")

62
