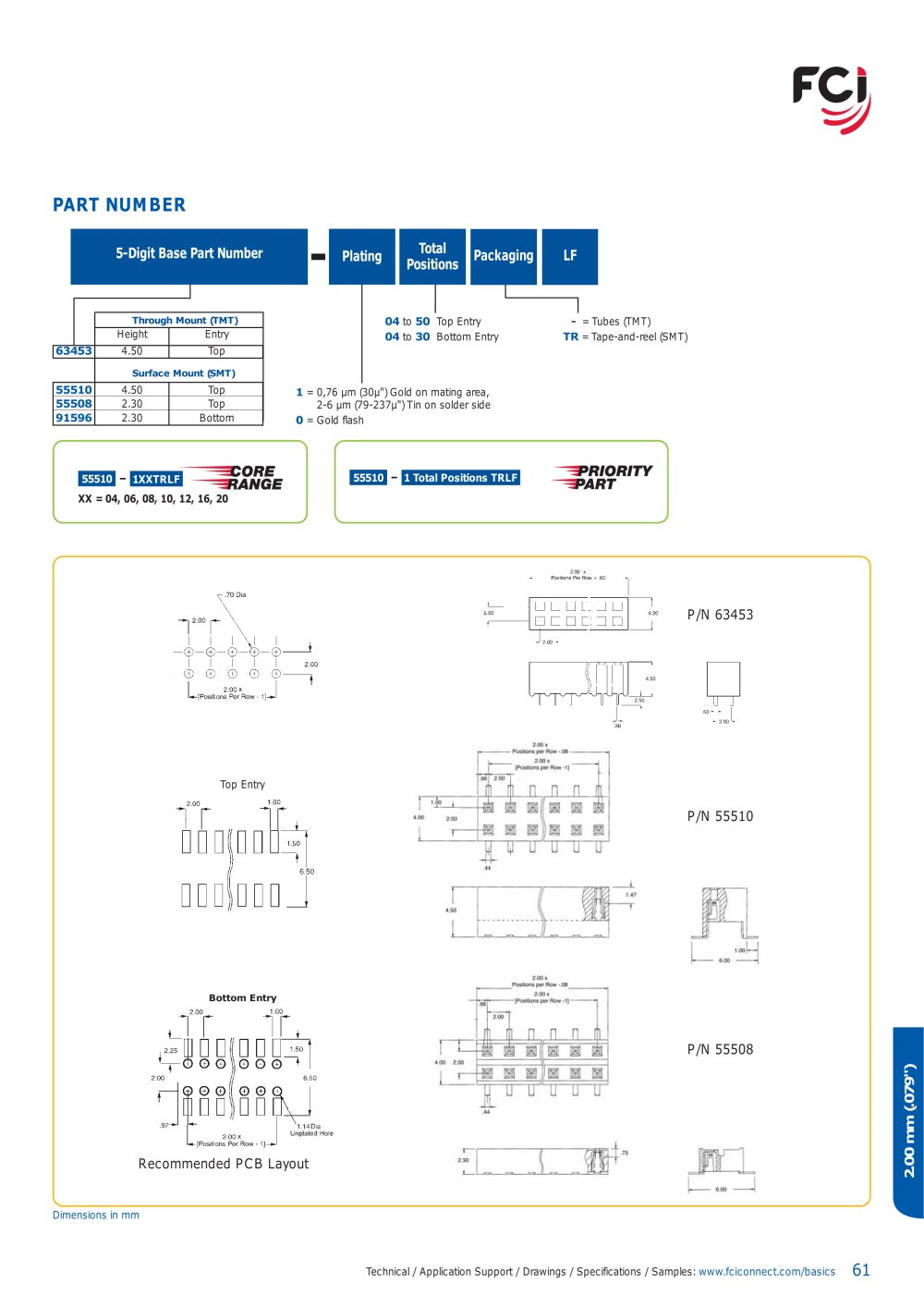

PART NUMBER

5-Digit Base Part Number Plating TotalPositions Packaging LF

Through Mount (TMT) 04 to 50 Top Entry - = Tubes (TMT) HeightEntry 04 to 30 Bottom Entry TR = Tape-and-reel (SMT) 63453 4.50 Top
Surface Mount (SMT) 55510 4.50Top 1 =0,76 µm (30µ") Gold on mating area,2-6 µm (79-237µ") Tin on solder side 55508 2.30Top 91596 2.30Bottom =Gold flash 55510 1XXTRLF 55510 1 Total Positions TRLF XX = 04, 06, 08, 10, 12, 16, 20

P/N 63453 P/N 55510 P/N 55508

Top Entry
Bottom Entry

Recommended PCB Layout

2.00 mm(.079") Dimensions in mm Technical / Application Support / Drawings / Specifications / Samples: www.fciconnect.com/basics

61
