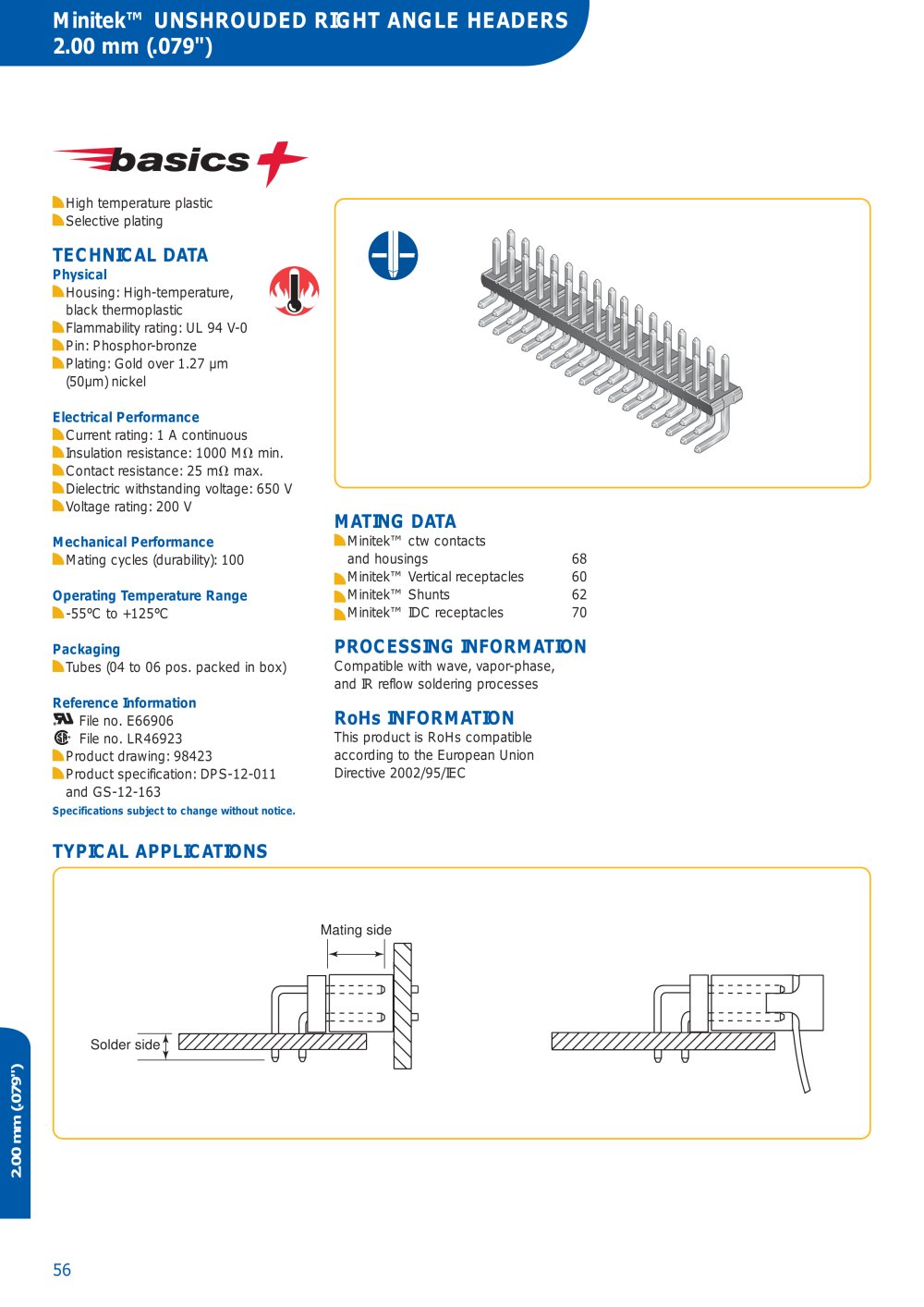

Minitek™ UNSHROUDED RIGHT ANGLE HEADERS2.00mm(.079")

High temperature plasticSelective plating

TECHNICAL DATA

Physical Housing: High-temperature, black thermoplasticFlammability rating: UL 94 V-0Pin: Phosphor-bronze Plating: Gold over 1.27 µm (50µm) nickel Electrical Performance min.Contact resistance: 25 m Current rating: 1 A continuous Insulation resistance: 1000 M max.Dielectric withstanding voltage: 650 V Voltage rating: 200 V Mechanical Performance Mating cycles (durability): 100 Operating Temperature Range -55°C to +125°C Packaging Tubes (04 to 06 pos. packed in box) Reference Information

MATING DATA

File no. E66906File no. LR46923Product drawing: 98423Product specification: DPS-12-011and GS-12-163 Minitek™ ctw contacts and housings68 Minitek™ Vertical receptacles60 Minitek™ Shunts 62 Minitek™ IDC receptacles 70

PROCESSING INFORMATION

Compatible with wave, vapor-phase, and IR reflow soldering processes

RoHsINFORMATION

This product is RoHs compatible according to the European Union Directive 2002/95/IEC
Specifications subject to change without notice.

TYPICAL APPLICATIONS

Mating side Solder side 2.00 mm(.079")
