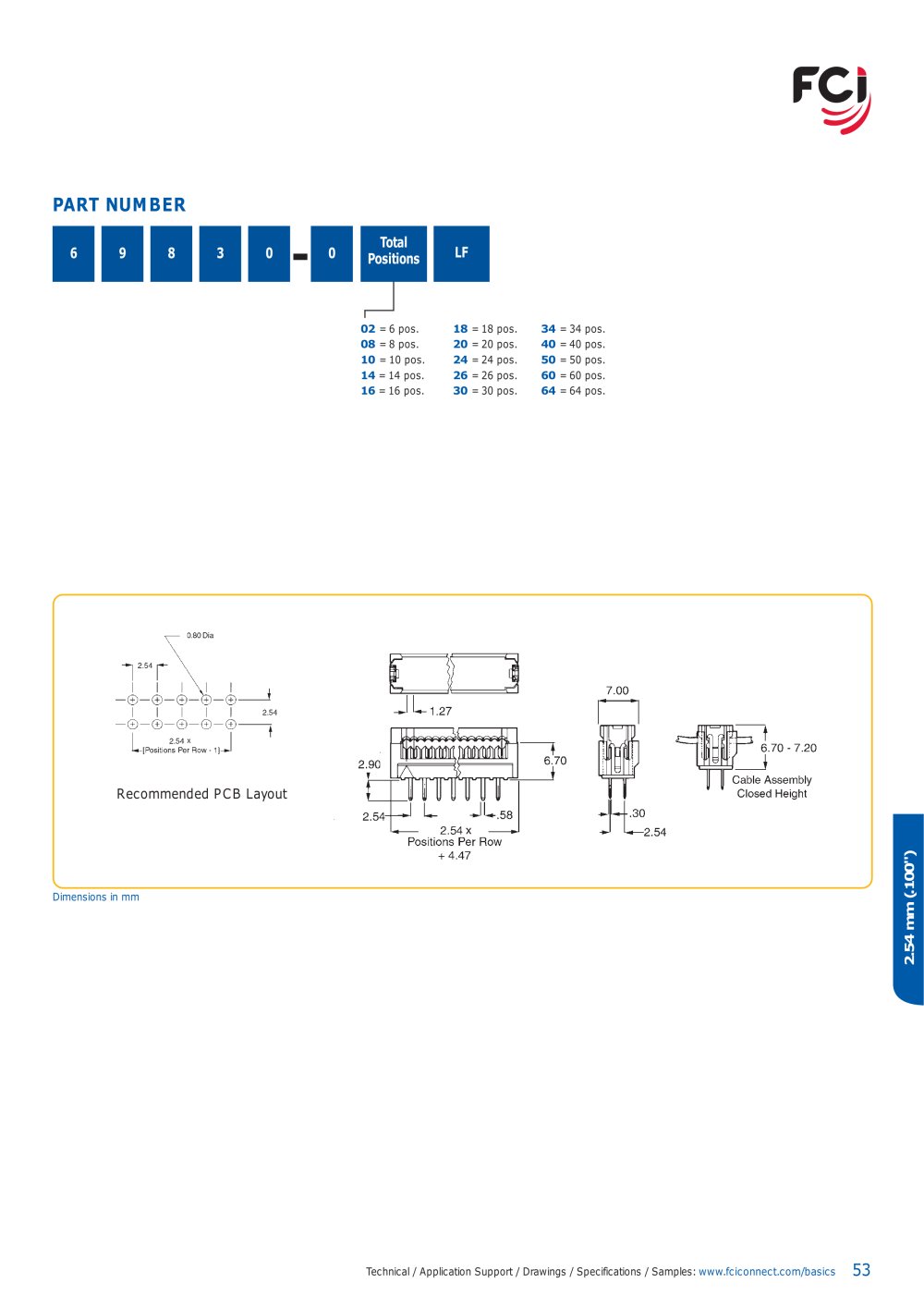

PART NUMBER

6 9 8 3 TotalPositions LF

02 = 6 pos. 18 = 18 pos. 34 = 34 pos. 08 = 8 pos. 20 = 20 pos. 40 = 40 pos. 10 = 10 pos. 24 = 24 pos. 50 = 50 pos. 14 = 14 pos. 26 = 26 pos. 60 = 60 pos. 16 = 16 pos. 30 = 30 pos. 64 = 64 pos.

Recommended PCB Layout

Dimensions in mm
2.54 mm(.100") Technical / Application Support / Drawings / Specifications / Samples: www.fciconnect.com/basics
