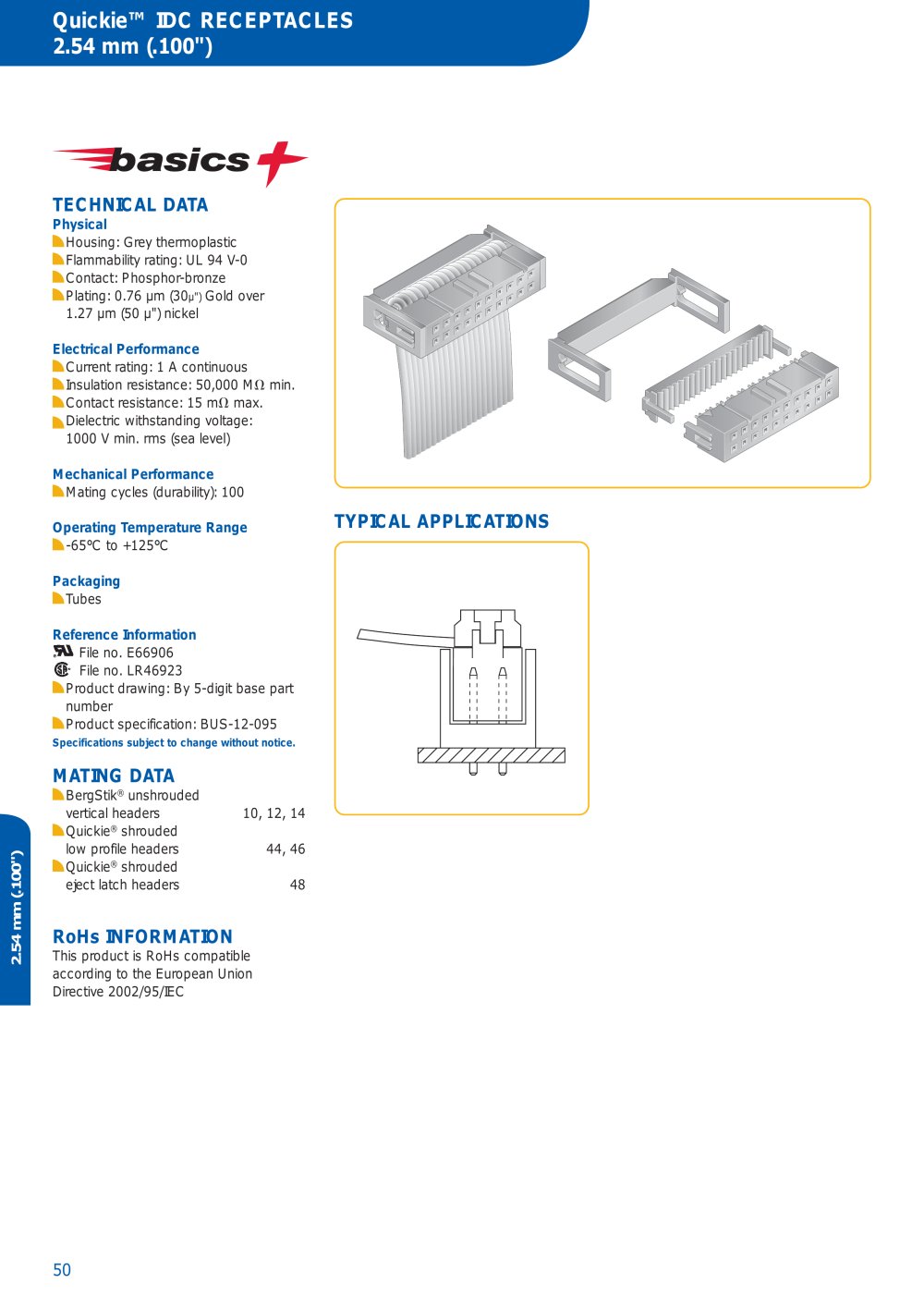

Quickie™IDC RECEPTACLES2.54mm(.100")

TECHNICAL DATA

Physical Housing: Grey thermoplasticFlammability rating: UL 94 V-0 Contact: Phosphor-bronze Plating: 0.76 µm (30
µ") Gold over 1.27 µm (50 µ") nickel Electrical Performance Current rating: 1 A continuousInsulation resistance: 50,000 M min.Contact resistance: 15 m max.Dielectric withstanding voltage: 1000 V min. rms (sea level) Mechanical Performance Mating cycles (durability): 100 Operating Temperature Range -65°C to +125°C

TYPICAL APPLICATIONS

Packaging Tubes Reference Information File no. E66906File no. LR46923Product drawing: By 5-digit base part numberProduct specification: BUS-12-095
Specifications subject to change without notice.

MATING DATA

BergStik
® unshrouded vertical headers10, 12, 14 Quickie
® shrouded low profile headers44, 46 Quickie
® shrouded eject latch headers48

RoHsINFORMATION

2.54 mm(.100") This product is RoHs compatible according to the European Union Directive 2002/95/IEC

50
