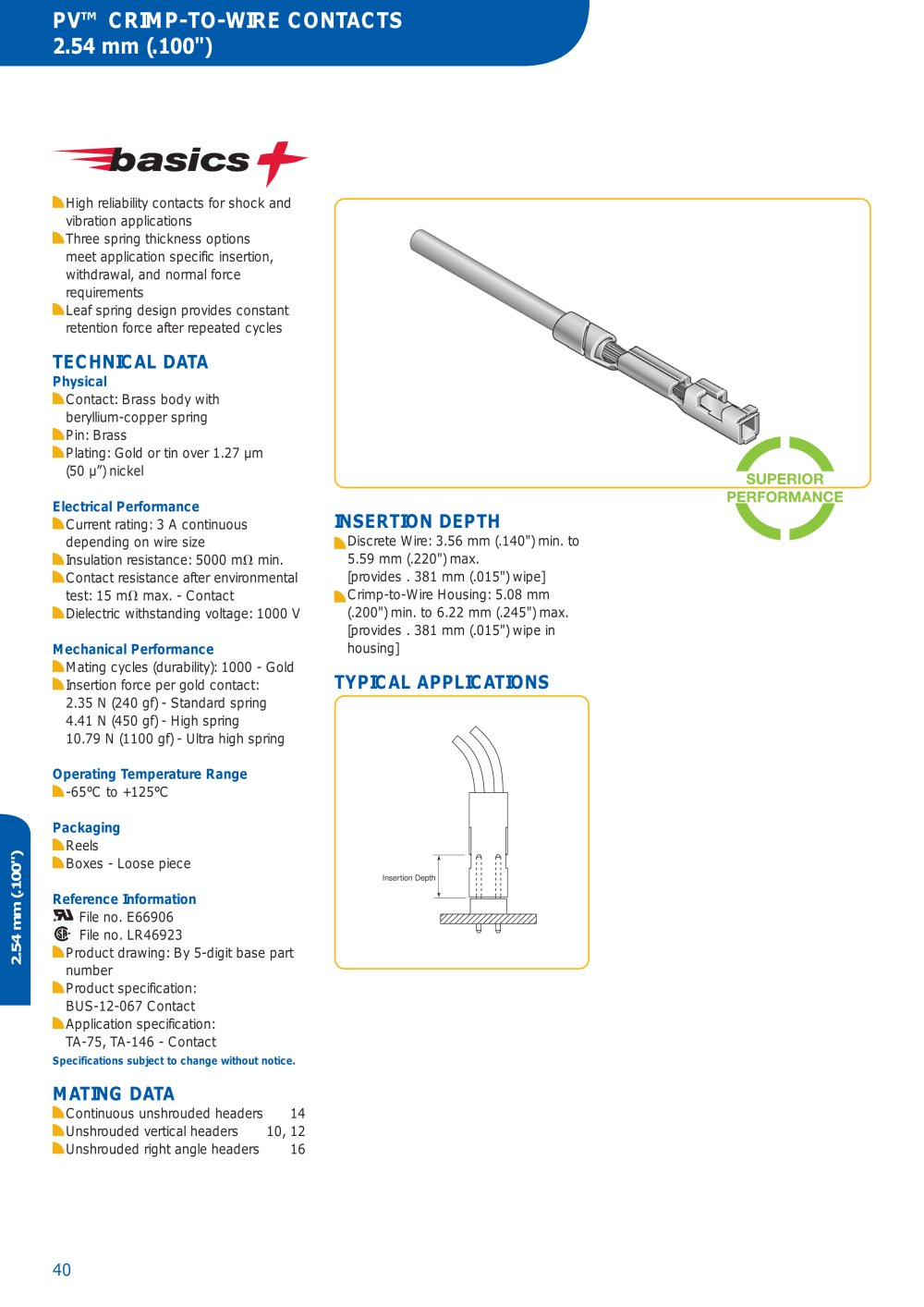

PV™ CRIMP-TO-WIRE CONTACTS2.54 mm(.100")
High reliability contacts for shock andvibration applications
Three spring thickness options meet application specific insertion, withdrawal, and normal force requirements
Leaf spring design provides constant
retention force after repeated cycles
TECHNICAL DATA
Physical Contact: Brass body with beryllium-copper springPin: BrassPlating: Gold or tin over 1.27 µm (50 µ”) nickel max. - ContactDielectric withstanding voltage: 1000 V min.Contact resistance after environmental
test: 15 m Electrical Performance Current rating: 3 A continuous depending on wire size
Insulation resistance: 5000 m Mechanical Performance Mating cycles (durability): 1000 - Gold
Insertion force per gold contact:2.35 N (240 gf) - Standard spring4.41 N (450 gf) - High spring
10.79 N (1100 gf) - Ultra high spring Operating Temperature Range
INSERTION DEPTH
-65°C to +125°C Discrete Wire: 3.56 mm (.140") min. to
5.59 mm (.220") max. [provides . 381 mm (.015") wipe]
Crimp-to-Wire Housing: 5.08 mm
(.200") min. to 6.22 mm (.245") max.[provides . 381 mm (.015") wipe in housing] Packaging Reels
Boxes - Loose piece Reference Information File no. E66906File no. LR46923Product drawing: By 5-digit base partnumberProduct specification: BUS-12-067 Contact
Application specification: TA-75, TA-146 - Contact
TYPICAL APPLICATIONS
Insertion Depth 2.54 mm(.100") Specifications subject to change without notice. MATING DATA
Continuous unshrouded headers14Unshrouded vertical headers10, 12
Unshrouded right angle headers16
