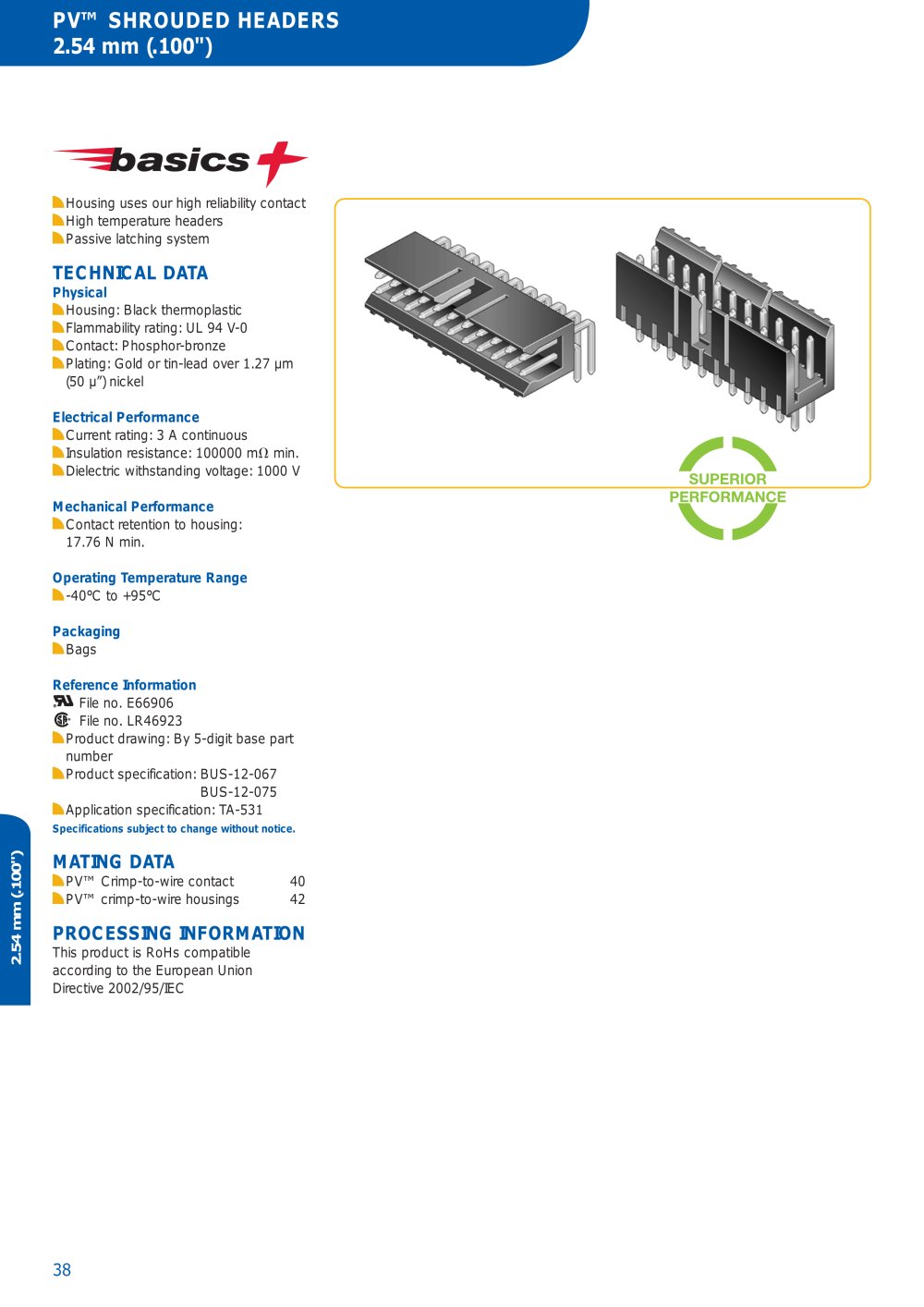

PV™ SHROUDED HEADERS 2.54 mm (.100")
Housing uses our high reliability contact High temperature headers Passive latching system
TECHNICAL DATA
Physical
Housing: Black thermoplastic Flammability rating: UL 94 V-0 Contact: Phosphor-bronze Plating: Gold or tin-lead over 1.27 urn (50 u") nickel
Electrical Performance
Current rating: 3 A continuous Insulation resistance: 100000 mil min. Dielectric withstanding voltage: 1000 V
Mechanical Performance
Contact retention to housing: 17.76 N min.
SUPERIOR
PERFORMANCE
Operating Temperature Range
-40°C to +95°C
Packaging
Reference Information
m File no. E66906 ®- File no. LR46923
Product drawing: By 5-digit base part
number
Product specification: BUS-12-067 BUS-12-075 Application specification: TA-531 Specifications subject to change without notice.
MATING DATA
PV™ Crimp-to-wire contact 40
PV™ crimp-to-wire housings 42
PROCESSING INFORMATION
This product is RoHs compatible according to the European Union Directive 2002/95/IEC
