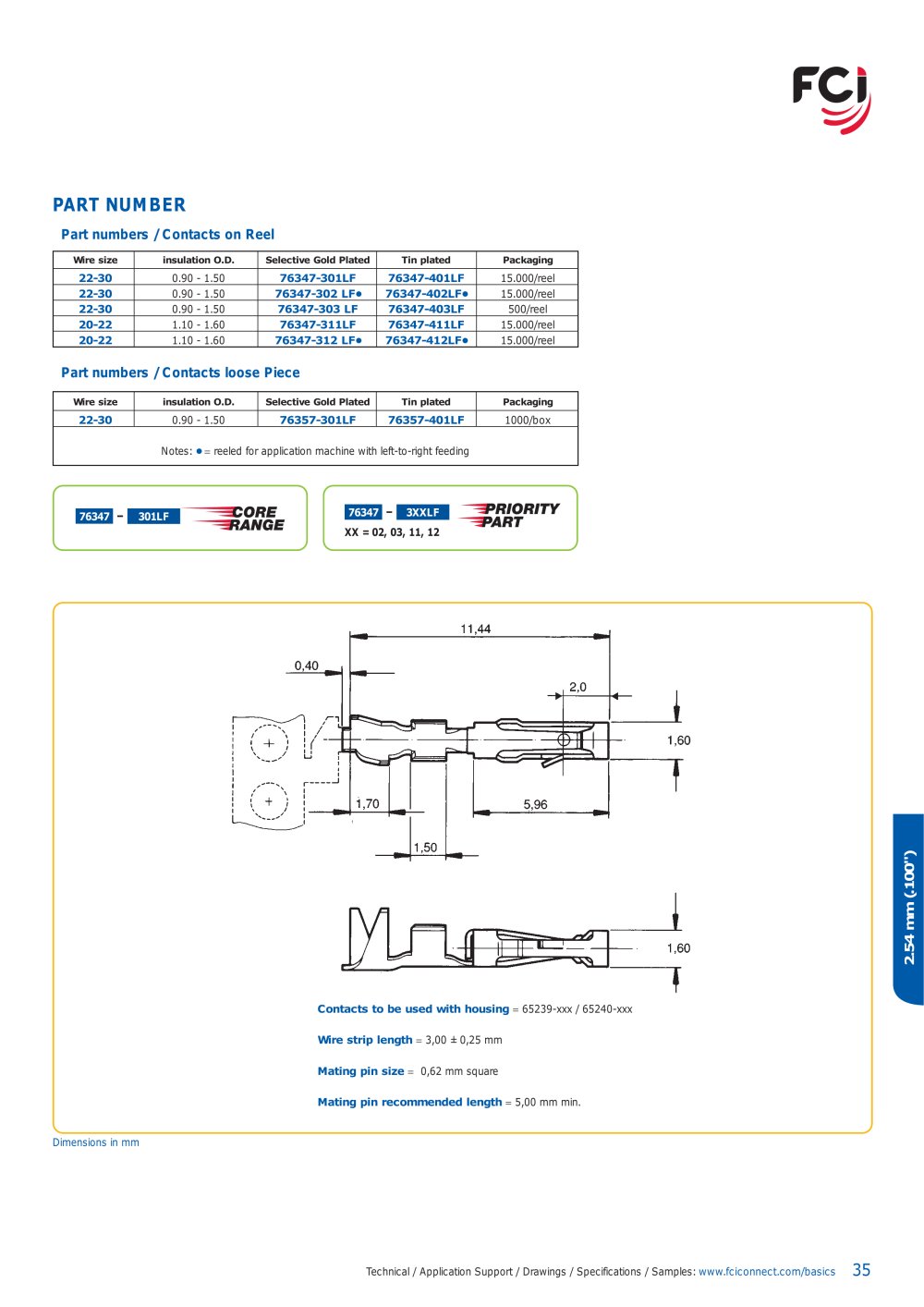

PART NUMBER

Part numbers / Contacts on Reel

Wire sizeinsulation O.D.Selective Gold PlatedTin platedPackaging 22-30 0.90 - 1.50 76347-301LF76347-401LF 15.000/reel 22-30 0.90 - 1.50 76347-302 LF?76347-402LF? 15.000/reel 22-30 0.90 - 1.50 76347-303 LF76347-403LF 500/reel 20-22 1.10 - 1.60 76347-311LF76347-411LF 15.000/reel 20-22 1.10 - 1.60 76347-312 LF?76347-412LF? 15.000/reel

Part numbers / Contacts loose Piece

Wire sizeinsulation O.D.Selective Gold PlatedTin platedPackaging 22-30 0.90 - 1.50 76357-301LF76357-401LF 1000/box Notes: ? = reeled for application machine with left-to-right feeding 76347 301LF 76347 3XXLF XX = 02, 03, 11, 12
2.54 mm(.100") Contacts to be used with housing = 65239-xxx / 65240-xxx Wire strip length = 3,00 ±0,25 mm Mating pin size = 0,62 mm square Mating pin recommended length = 5,00 mm min. Dimensions in mm Technical / Application Support / Drawings / Specifications / Samples: www.fciconnect.com/basics

35
